沃尔沃零件查询5.0GXi-C; 5.0GXi-CF; 5.0GXi-D; 5.0GXi-DF; 5.0OSi-C; 5.0OSi-CF; 5.0OSi-D; 5.0OSi-DFCooling SystemSeawater Pump and Hoses, Freshwater CoolingEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
755 次

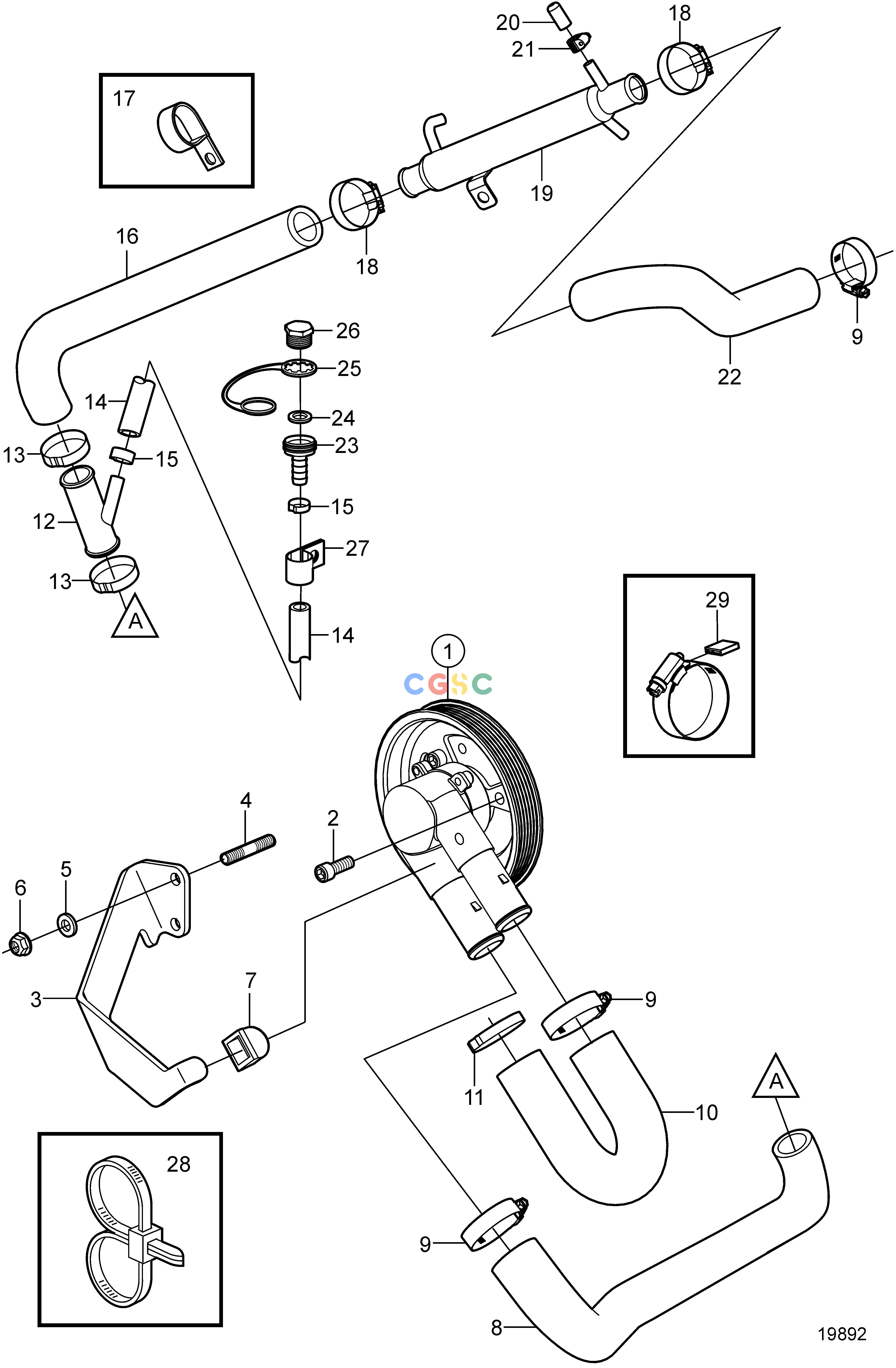

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3862482
|
[1] |
Pump
|
|
| 2. |
3857939
|
[3] |
Screw
|
|
| 3. |
3861544
|
[1] |
Bracket
|
|
| 4. |
3860286
|
[2] |
Stud
|
|
| 5. |
3852162
|
[2] |
Washer
|
|
| 6. |
3853404
|
[2] |
Nut
|
|
| 7. |
3857954
|
[2] |
Stop lug
|
|
| 8. |
3862650
|
[1] |
Hose
|
|
| 9. |
3853786
|
[3] |
Hose clamp
|
|
| 10. |
3861474
|
[1] |
Hose
|
|
| 11. |
982717
|
[1] |
Hose clamp
|
|
| 12. |
3862699
|
[1] |
T-pipe
|
|
| 13. |
982645
|
[2] |
Hose clamp
|
|
| 14. |
3862901
|
[1] |
Hose
|
|
| 15. |
983146
|
[2] |
Hose clamp
|
|
| 16. |
3862543
|
[1] |
Hose
|
|
| 17. |
3853312
|
[1] |
Clamp
|
|
| 18. |
3852602
|
[2] |
Hose clamp
|
|
| 19. |
3862629
|
[1] |
Oil cooler
|
|
| 20. |
3856766
|
[1] |
Cap
|
|
| 21. |
3860413
|
[1] |
Hose clamp
|
|
| 22. |
3861567
|
[1] |
Hose
|
|
| 23. |
3862902
|
[1] |
Washing connection
|
|
| 24. |
3862079
|
[1] |
Gasket
|
|
| 25. |
3862082
|
[1] |
Retainer
|
|
| 26. |
3862656
|
[1] |
Cap
|
|
| 27. |
3862891
|
[1] |
Attaching clamp
|
|
| 28. |
3850115
|
[1] |
Retainer
|
|
| 29. |
3858532
|
[1] |
Cover
|
W=0.465'' (11,8mm)
|
| 29. |
3861999
|
[1] |
Cover
|
W=0.300'' (7,6mm)
|
