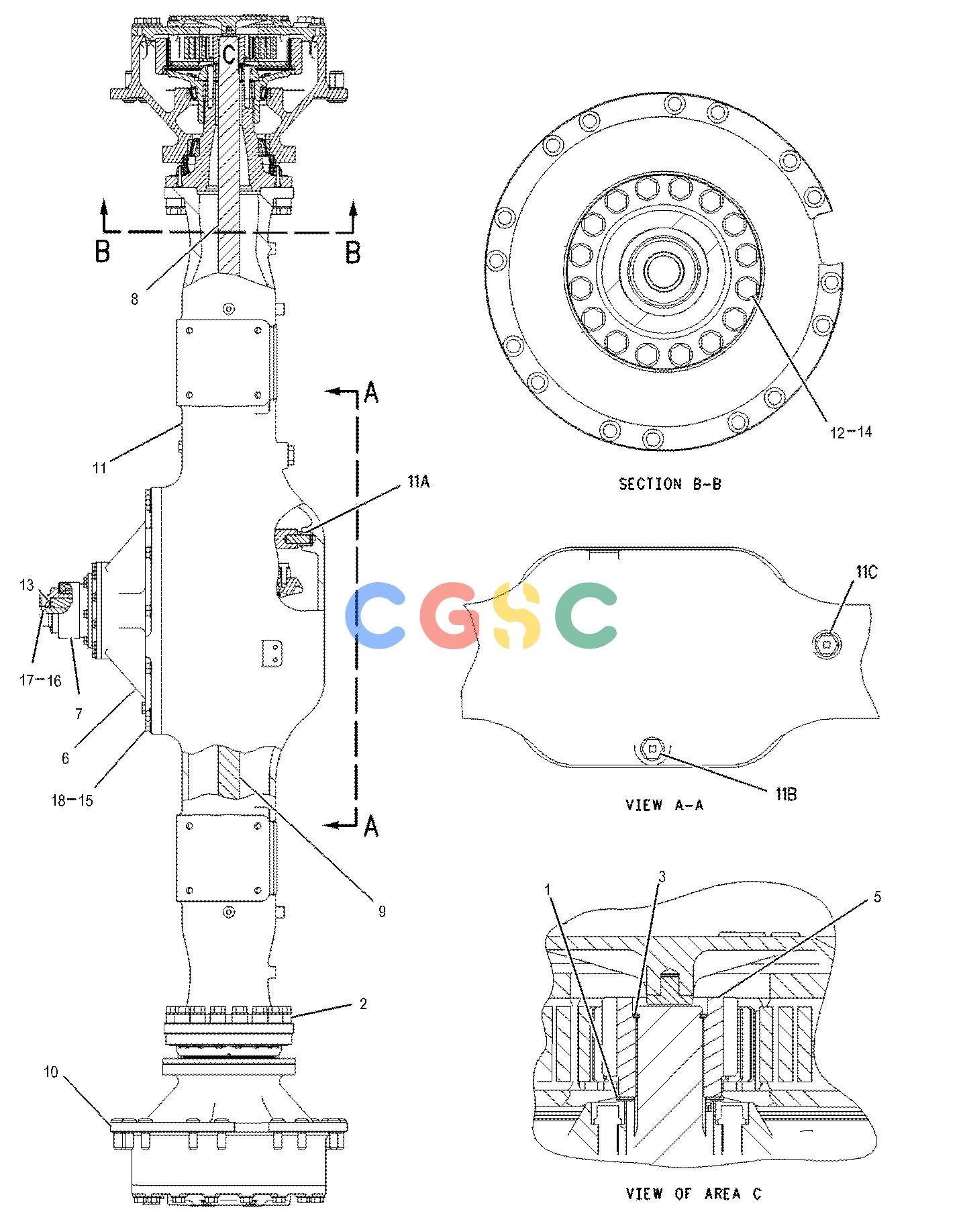

卡特零件查询（730） 147-6600: AXLE GP-REAR
广数供应链运营团队, 15 02月, 2025，浏览：
412 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6W-1533 | [2] | WASHER-THRUST(1.52-MM THK) | |
| 2. | 8E-2809 | [32] | SPACER(20.5X35X20-MM THK) | |
| 3. | 8K-6000 | [2] | RING-RETAINING | |
| 5. | 118-3183 | [2] | GEAR-SUN(18-TEETH) | |
| 6. | 147-6790Y | [1] | DIFFERENTIAL & BEVEL GEAR GP(FRONT, REAR) | |
| 7. | 177-3917 | [1] | YOKE AS | |
| 8. | 190-5933 | [1] | SHAFT-AXLE | |
| 9. | 190-5934 | [1] | SHAFT-AXLE | |
| 10. | 201-3268Y | [2] | WHEEL & FINAL DRIVE GP | |
| 11. | 205-0198C | [1] | HOUSING AS-AXLE | |
| 11A. | 160-6213 | [2] | BUSHING | |
| 11B. | 5P-4484C | [1] | PLUG-MAGNETIC(AXLE HOUSING) | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| 11C. | 5P-4483C | [1] | PLUG | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| 12. | 1D-4609 | [32] | BOLT(3/4-10X3-IN) | |
| 13. | 4F-7391 | [1] | SEAL-O-RING | |
| 14. | 5P-8248 | [32] | WASHER-HARD(20X36.5X3.5-MM THK) | |
| 15. | 8T-4193M | [14] | BOLT(M16X2X50-MM) | |
| 16. | 8T-4223 | [1] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 17. | 8T-6868M | [1] | BOLT(M12X1.75X80-MM) | |
| 18. | 9X-8257 | [14] | WASHER(17.5X30X3.5-MM THK) | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
