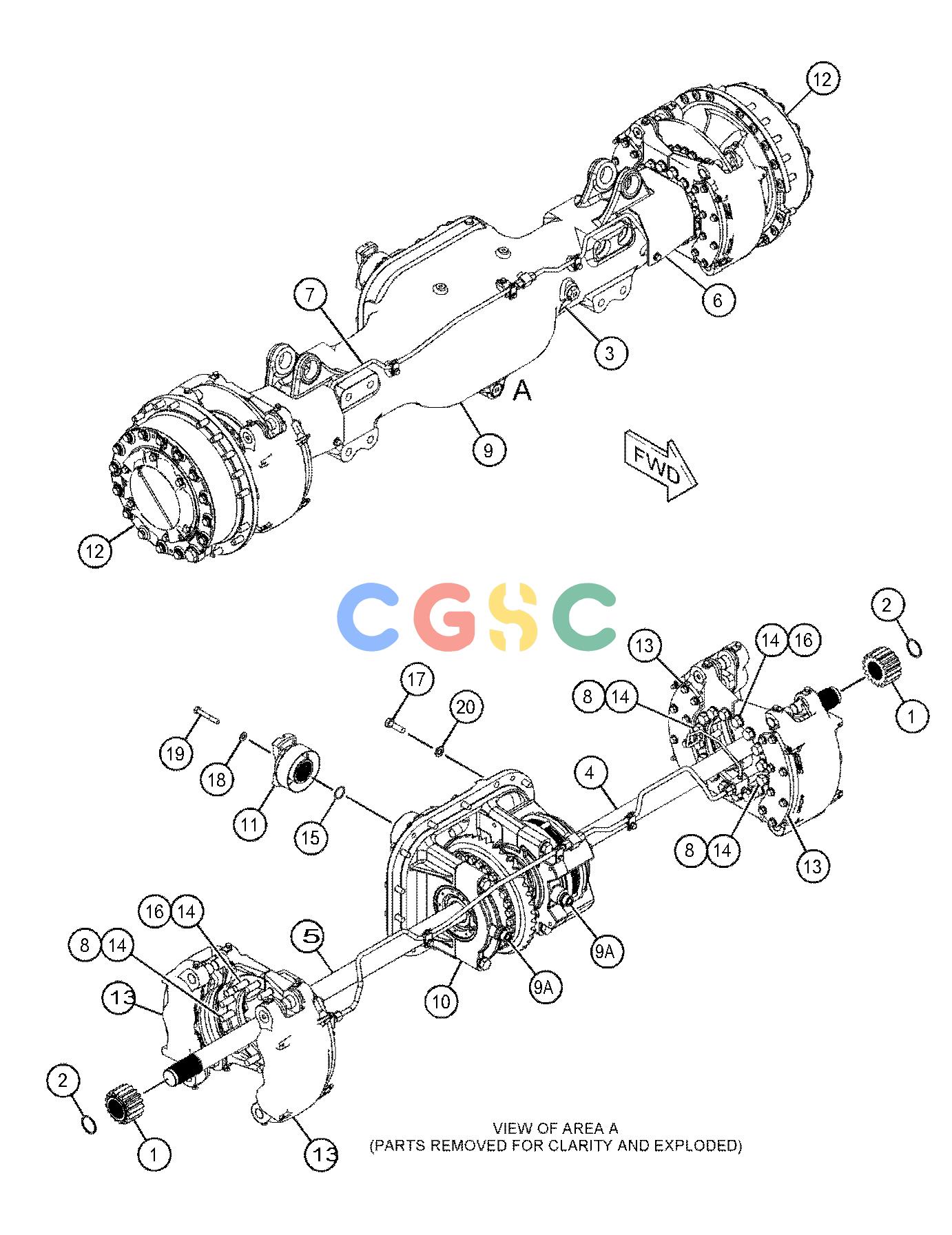

卡特零件查询（730） 324-1362: AXLE GP-REAR
广数供应链运营团队, 15 02月, 2025，浏览：
188 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8K-6282 | [2] | GEAR-SUN(17-TEETH) | |
| 2. | 8K-6464 | [2] | RING-RETAINING | |
| 3. | 109-8895 | [1] | PLATE-IDENTIFICATION(LOGGING SKID) | |
| 4. | 138-4092 | [1] | SHAFT | |
| 5. | 138-4093 | [1] | SHAFT | |
| 6. | 148-9967Y | [1] | GUARD GP-LINES(AXLE, FRONT) | |
| 7. | 148-9972Y | [1] | LINES GP-SERVICE BRAKE(FRONT) | |
| 8. | 195-9464 | [4] | SPACER-SPECIAL(3.5-MM THK) | |
| 9. | 205-0196 | [1] | HOUSING AS-AXLE | |
| 9A. | 160-6213 | [2] | BUSHING | |
| | 165-4929 | [1] | PLUG AS-MAGNETIC | |
| | 5P-4484 | [1] | PLUG-MAGNETIC | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| | 197-4977 | [1] | PLUG AS | |
| | 5P-4483 | [1] | PLUG | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| 10. | 282-6918Y | [1] | DIFFERENTIAL & BEVEL GEAR GP | |
| 11. | 308-6004 | [1] | YOKE AS | |
| | 7V-3791 | [1] | GUARD | |
| 12. | 322-7324Y | [2] | WHEEL & FINAL DRIVE GP | |
| 13. | 347-9761Y | [4] | BRAKE GP-HYD CALIPER SERVICE | |
| 14. | 310-8642 | [32] | BOLT-LOCKING(3/4-10X3-IN) | |
| 15. | 4F-7391 | [1] | SEAL-O-RING | |
| 16. | 5P-8248 | [24] | WASHER-HARD(20X36.5X3.5-MM THK) | |
| 17. | 8T-4193M | [14] | BOLT(M16X2X50-MM) | |
| 18. | 8T-4223 | [1] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 19. | 8T-6868M | [1] | BOLT(M12X1.75X80-MM) | |
| 20. | 9X-8257 | [14] | WASHER(17.5X30X3.5-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
