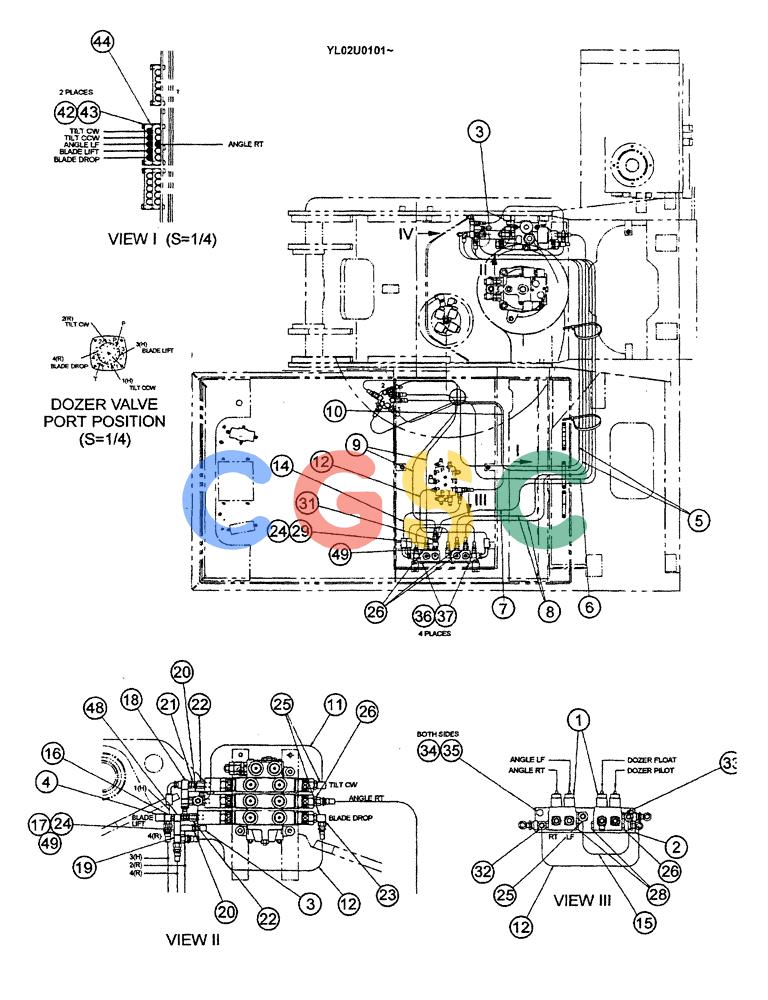

| . . | YM68HU0003F1 | [1] | LINES, REMOTE CONTROL | |
| 1. | 2436U2590F2 | [2] | SOLENOID VALVE | KOB |
| 2. | YM68HU1002P1 | [1] | PLATE | |
| 3. | YX52S00005P1 | [2] | PRESSURE SWITCH | KOB Superseded by part number: YX52S00012F1 |
| 4. | 2479U2058 | [1] | PRESSURE SWITCH | KOB |
| 5. | HX31E04360DX | [2] | HOSE | HOSE |
| 6. | 2420R349D360 | [1] | HOSE,3600.00 mm | KOB Superseded by part number: HX21E04360DX |
| 7. | 2444R963D33 | [1] | HOSE | HOSE |
| 8. | 2420R349D240 | [2] | HOSE,2400.00 mm | KOB Superseded by part number: HX21E04240DX |
| 9. | 2420R349D165 | [2] | HOSE,1650.00 mm | KOB Superseded by part number: HX21E04165DX |
| 10. | 2444R1119D125 | [1] | HOSE | KOB(PF 3/8; L=1250mm) Replaces 2444R1120D125 |
| 11. | 2420R349D075 | [1] | HOSE | KOBPF 1/4, 750mm Long (29-1/2 in) Superseded by part number: 2444R3019D3 |
| 12. | 2444R963D45 | [3] | HOSE | KOB |
| 14. | HX31E06055DX | [1] | HOSE | KOB |
| 15. | 2444R1120D040 | [1] | HOSE | KOB400mm Long (15-3/4 in) |
| 16. | 2444Z3820 | [1] | 90 ELBOW | KOB90° -- 1/4" PT (Incls. O-Ring ZD12P01100) |
| 17. | 2444Z2526 | [2] | TEE | KOB |
| 18. | 2444Z3762 | [1] | TEE | KOBTEE(PF 1/4) |
| 19. | 2444Z3763 | [2] | TEE | HIT |
| 20. | 2444Z4252 | [2] | HYD CONNECTOR | KOB |
| 21. | 2444Z2294 | [1] | HYD CONNECTOR | KOB1/4" PF x 41mm Long (Incls. (2) O-Rings ZD12P01100) |
| 22. | 2444Z2525 | [3] | HYD CONNECTOR | KOB1/4"PFx35mm Long (Incls. O-Ring ZD12P01100) Superseded by part number: 72217408 |
| 24. | 2425Z519 | [3] | BALL | KOB |
| 25. | ZH32X04000 | [4] | 90 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 1/4", O-Ring | KOBElbow, 90° -- PF 1/4, (Incls. O-Ring 237-6004) |
| 26. | ZH22X04000 | [5] | HYD CONNECTOR,1/4" NPT x 1/4" NPT | KOB1/4"PFx36mm Long (Incls. O-Ring ZD12P01100) |
| 28. | ZE72X04000 | [2] | PLUG | KOB(PF 1/4) (Incls. O-Ring ZD12P01100) |
| 29. | 2444Z3134 | [1] | TEE | KOB1/4" PF x 40mm Long |
| 31. | 2444Z3785 | [1] | HYD CONNECTOR | KOB1/4" PT (Incls. O-Ring ZD12P01100) |
| 32. | 2444Z2336 | [1] | TEE | KOBTee -- 1/4"x3/8"x3/8"PF (Incls. O-Ring ZD12P01100) |
| 33. | 2444Z3834 | [1] | TEE | KOB |
| 34. | ZS18C10025 | [2] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 35. | ZW22X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 36. | ZS13C08016 | [4] | SCREW | KOBM08x1.25x16mm Superseded by part number: ZS18C08016 |
| 37. | ZW22X08000 | [4] | LOCK WASHER | KOBID 08 x OD 15.4 x Th 2.0mm Superseded by part number: 83990583 |
| 38. | ZH42X04000 | [4] | 45 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 1/4", O-Ring | KOBElbow, 45° -- (Incls. O-Ring 237-6004) |
| 39. | HH45X04004G2 | [1] | 45 ELBOW | HIT45° -- 1/4" PF (Incls. O-Ring ZD12P01100) |
| 40. | 2444T3288 | [1] | 45 ELBOW | KOB45° -- (Incls. O-Ring ZD12P01100) |
| 41. | YM68HU1003D1 | [1] | HOSECOVER | |
| 42. | ZS18C08065 | [2] | SCREW,Hex, M8 x 65mm | KOBM08x1.25x65mm |
| 43. | ZW16X08000 | [2] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| 44. | YN68H01035P1 | [1] | CLAMP | KOB |
| 45. | 2436U3059F2 | [1] | PILOT VALVE | KOB |
| 46. | ZS13C06025 | [4] | SCREW | KOBM06x1.0x25mm Superseded by part number: ZS18C06025 |
| 47. | ZW16X06000 | [4] | WASHER | KOBID 06 x OD 12.5 x Th 1.6mm Superseded by part number: 86588450 |
| 48. | 2444Z2364 | [1] | TEE | KOB Superseded by part number: LE64H01045P1 |
| 49. | 2444Z3756 | [2] | HYD CONNECTOR | KOB1/4" PT (Incls. 2 - O-Rings ZD12P01100) |
