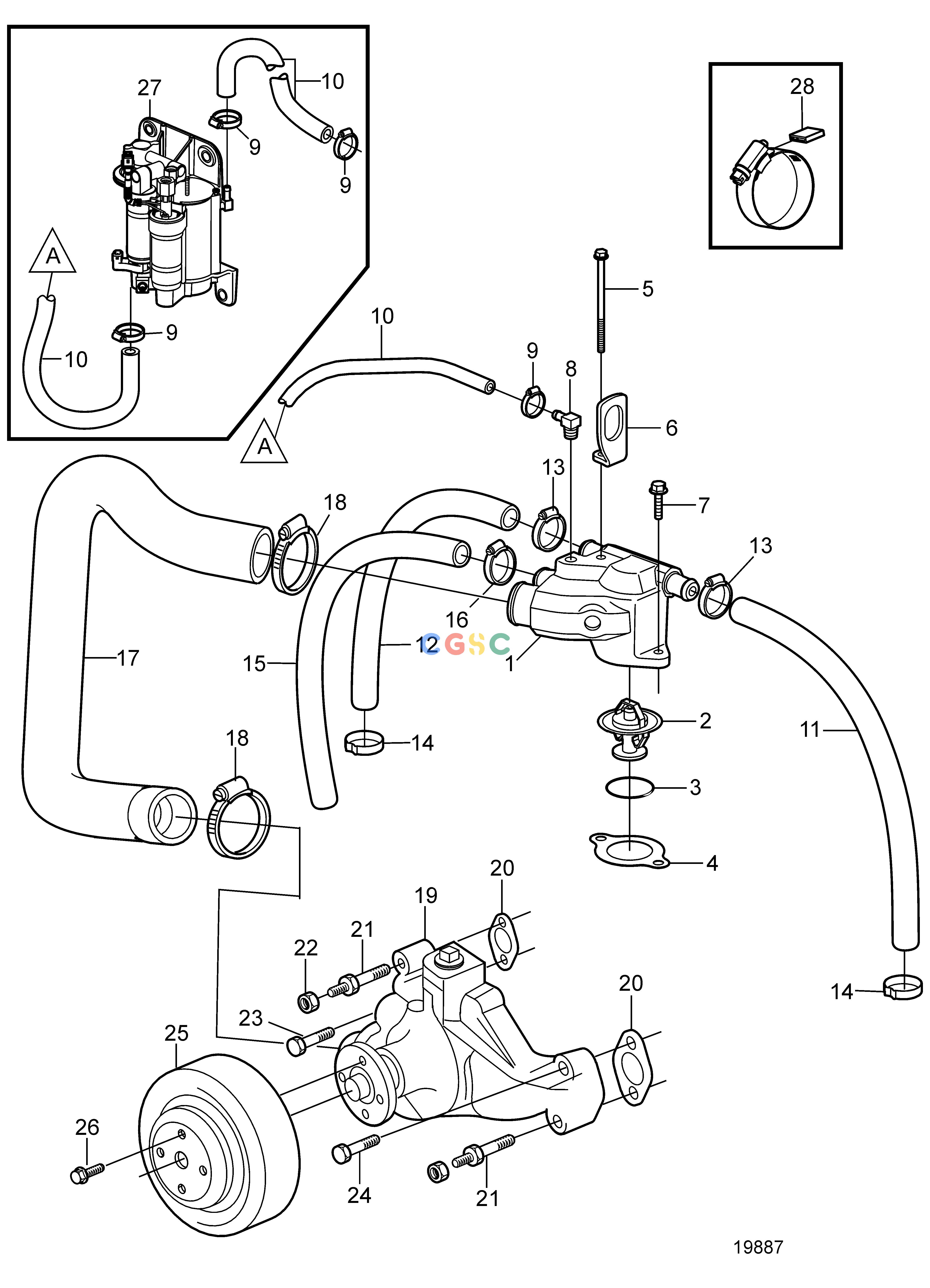

沃尔沃零件查询5.0GXi-E; 5.0GXi-EF; 5.0OSi-E; 5.0OSi-EFCooling SystemCirculation Pump and ThermostatEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
999 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3863086
|
[1] |
Thermostat housing
|
|
| 2. |
3862835
|
[1] |
Thermostat
|
|
| 3. |
983944
|
[1] |
O-ring
|
|
| 4. |
3852111
|
[1] |
Gasket
|
|
| 5. |
968842
|
[1] |
Flange screw
|
|
| 6. |
3862649
|
[1] |
Bracket
|
|
| 7. |
945444
|
[1] |
Flange screw
|
|
| 8. |
3853597
|
[1] |
Elbow
|
|
| 9. |
3860413
|
[4] |
Hose clamp
|
|
| 10. |
3862550
|
[2] |
Hose
|
|
| 11. |
3860588
|
[1] |
Hose
|
|
| 12. |
3862536
|
[1] |
Hose
|
|
| 13. |
3863439
|
[2] |
Hose clamp
|
|
| 14. |
982715
|
[2] |
Hose clamp
|
|
| 15. |
3862538
|
[1] |
Hose
|
|
| 16. |
3863445
|
[1] |
Hose clamp
|
|
| 17. |
3862523
|
[1] |
Hose
|
|
| 18. |
3863438
|
[2] |
Hose clamp
|
|
| 19. |
3853850
|
[1] |
Circulation pump
|
|
| 20. |
3852477
|
[2] |
Gasket
|
|
| 21. |
3856147
|
[2] |
Stud
|
|
| 22. |
3853403
|
[1] |
Nut retainer
|
|
| 23. |
3856137
|
[1] |
Bolt
|
|
| 24. |
3856136
|
[1] |
Bolt
|
|
| 25. |
3860083
|
[1] |
Pulley
|
|
| 26. |
3853390
|
[4] |
Screw
|
|
| 27. |
7744400_009
|
|
Fuel pump
|
|
| 28. |
3861999
|
[4] |
Cover
|
W=0.300'' (7,6mm)
|
