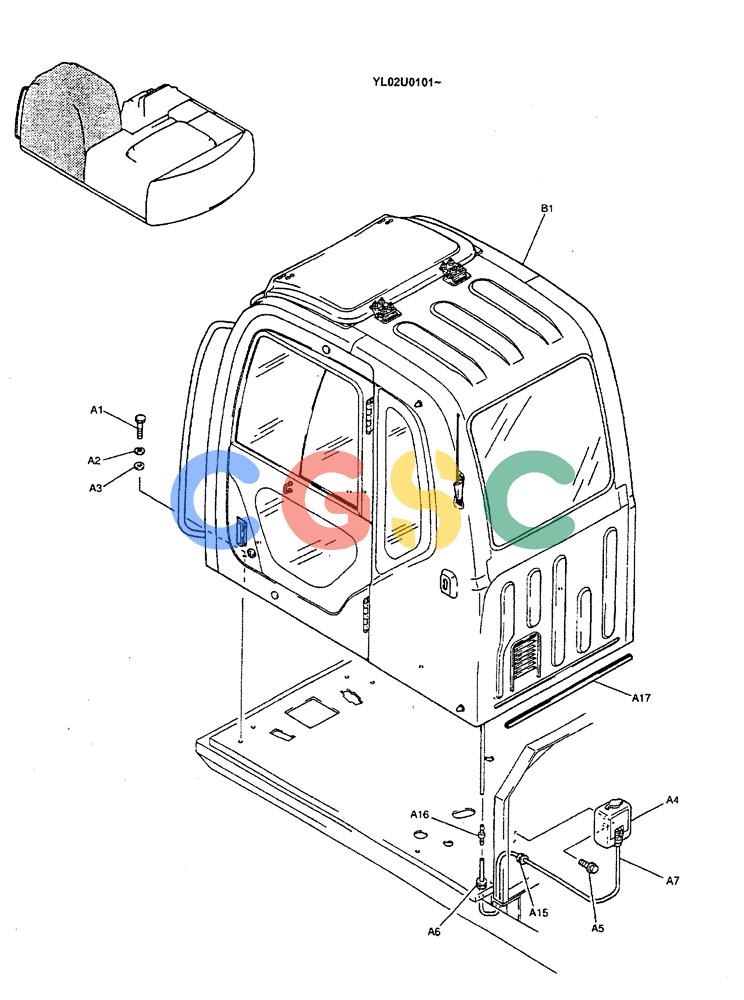

神钢零件查询(ED190LC) - BLADE RUNNER EXCAVATOR/DOZER BTW YL02U0101 - YL03U0135 (1/02-12/06) (01-044) - CAB INSTAL Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
978 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN02C00019F1 | [1] | CAB | KOB |
| A1. | ZS18C12065 | [8] | SCREW,Hex, M12 x 65mm | KOBM12x1.75x65mm |
| A2. | ZW26X12000 | [8] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| A3. | 2418T10357 | [8] | WASHER | KOBID 13 x OD 30 x Th 3.2mm Superseded by part number: 2418T12345 |
| A4. | 24100U157F1 | [1] | TANK | KOB Superseded by part number: YT54C00003F1 |
| A5. | ZM61C06020 | [2] | BOLT | KOBM06x1.0x20mm (Incls. Washer & Lockwasher) |
| A6. | YN03M01159P1 | [1] | GROMMET | KOB |
| A7. | YT02C01126D3 | [1] | TUBE | KOB850mm Long (33-29/64 in) Superseded by part number: YT02C01126D7 |
| A15. | 2420R372D17 | [1] | GROMMET | KOBID 25 x OD 35 x hole 30 Th 08mm |
| A16. | YT02C01282P1 | [1] | ELEC CONNECTOR | KOB30mm Long (1-13/16 in) |
| A17. | 2427Z1594D078 | [1] | TRIM PANEL | KOB |
| B1. | YN02C00018F9 | [1] | CAB | KOBCAB ASSY (-4/01), See P. 170-01-1 Superseded by part number: YN02C00087F2%K1 |
| . . | YN02C00068F1 | [1] | BEAM | BEAM |
