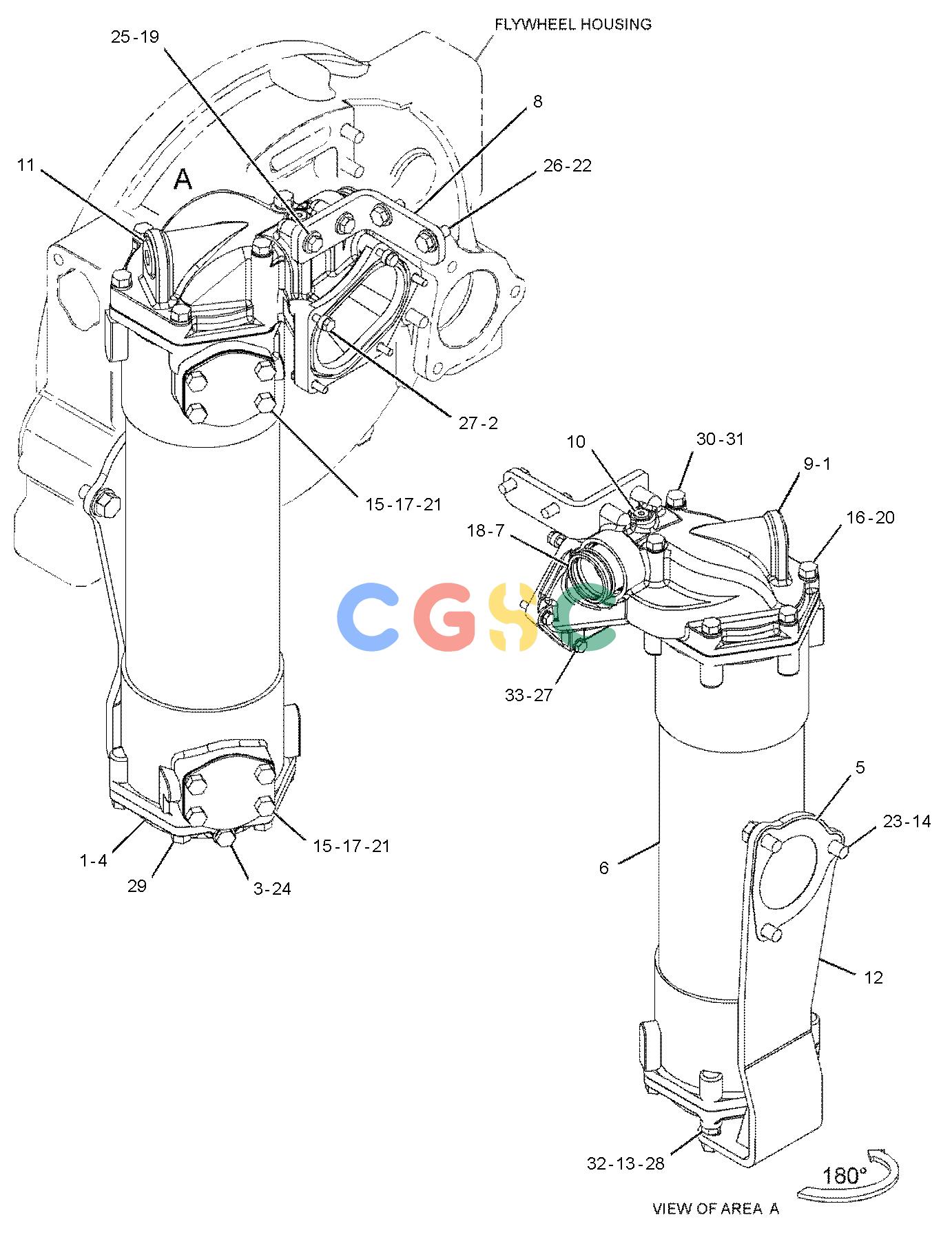

卡特零件查询（730） 354-7467: COOLER GP-TRANSMISSION OIL
广数供应链运营团队, 15 02月, 2025，浏览：
179 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2S-0795 | [2] | GASKET | |
| 2. | 8E-9571 | [2] | WASHER-HARD(8.8X16X7-MM THK) | |
| 3. | 8M-9307 | [1] | PLUG | |
| 4. | 8S-4304 | [1] | BONNET-XMSN OIL COOLER | |
| 5. | 9Y-6089 | [1] | GASKET | |
| 6. | 122-9934 | [1] | CORE AS-OIL COOLER(TRANSMISSION) | |
| 7. | 124-5043 | [1] | COUPLING | |
| 8. | 231-3178 | [1] | BRACKET | |
| 9. | 349-3309 | [1] | ELBOW | |
| 10. | 353-5124 | [1] | PLUG AS | |
| | 6V-3250 | [1] | SEAL-O-RING | |
| | 9S-8004 | [1] | PLUG(9/16-18-THD) | |
| 11. | 353-5144 | [1] | PLUG AS | |
| | 6V-5064 | [1] | SEAL-O-RING | |
| | 9S-9334 | [1] | PLUG | |
| 12. | 354-5010 | | BRACKET AS | |
| 13. | 355-4656 | [2] | STUD | |
| 14. | 0S-1592 | [3] | BOLT(5/8-11X1.25-IN) | |
| 15. | 0S-1620 | [8] | BOLT(1/2-13X0.75-IN) | |
| 16. | 1A-1460 | [4] | BOLT(1/2-13X2-IN) | |
| 17. | 1J-3619 | [2] | COVER | |
| 18. | 2N-5243 | [2] | SEAL-O-RING | |
| 19. | 3E-4353 | [2] | WASHER-HARD(11X25X3-MM THK) | |
| 20. | 3H-7654 | [4] | WASHER-HARD(13.5X22.5X3-MM THK) | |
| 21. | 3J-6933 | [2] | GASKET | |
| 22. | 5P-8245 | [2] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 23. | 5P-8247 | [3] | WASHER-HARD(17X32X3.5-MM THK) | |
| 24. | 6F-7062 | [1] | WASHER(12.7X19.05X1.83-MM THK) | |
| 25. | 6V-1820M | [2] | BOLT(M10X1.5X30-MM) | |
| 26. | 6V-3668M | [2] | BOLT(M12X1.75X30-MM) | |
| 27. | 6V-5219M | [5] | BOLT(M8X1.25X40-MM) | |
| 28. | 6V-8188 | [2] | NUT(1/2-13-THD) | |
| 29. | 7B-3235 | [4] | BOLT(1/2-13X1.375-IN) | |
| 30. | 7X-0333 | [2] | BOLT(1/2-13X4.75-IN) | |
| 31. | 7X-0584 | [2] | WASHER-HARD(13.5X20.5X2-MM THK) | |
| 32. | 8T-4223 | [2] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 33. | 9M-1974 | [3] | WASHER-HARD(8.8X16X2-MM THK) | |
| | M | | METRIC PART |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
