神钢零件查询(ED190LC) - BLADE RUNNER EXCAVATOR/DOZER BTW YL02U0101 - YL03U0135 (1/02-12/06) (01-049[01]) - DOOR ASSY, CAB, P/N YN51C00007F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
416 次

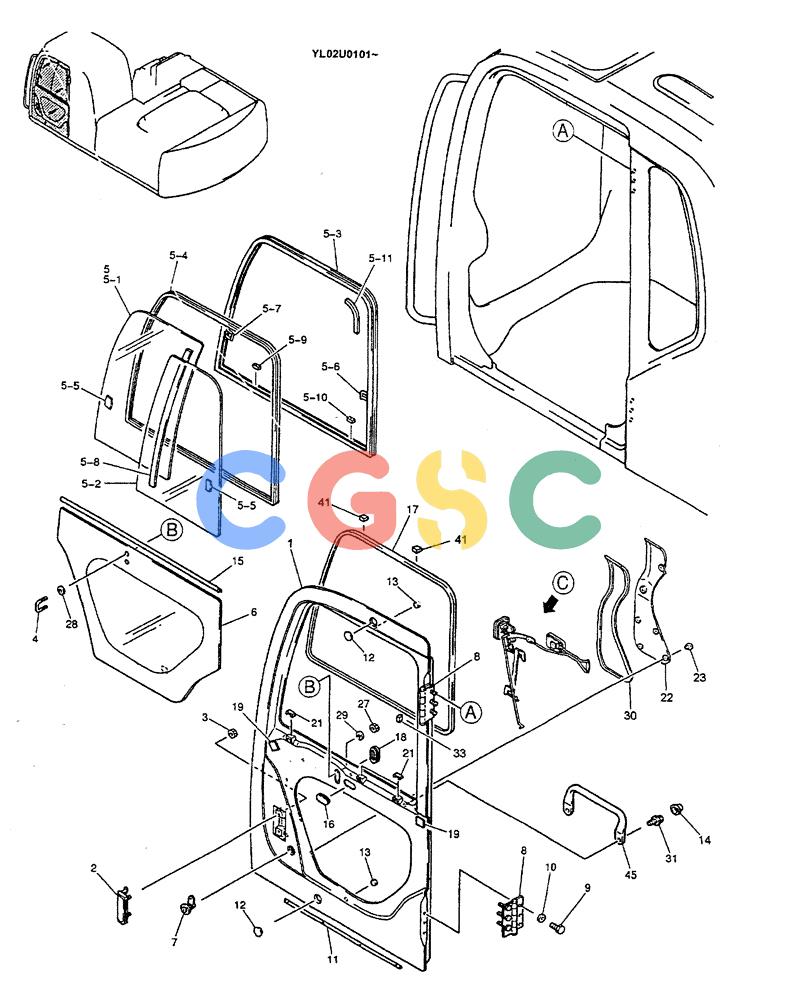

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN51C00007F1 | [1] | DOOR ASSY,CAB DOOR ASSY, CAB | DOOR ASSY,CAB DOOR ASSY, CAB |
| 1. | YN51C01057P1 | [1] | PANELASSY | |
| 2. | YN51C01045P1 | [1] | HANDLE | KOB |
| 3. | HN16C06000G1 | [2] | NUT | KOBM06x1.0mm |
| 4. | YN51C01043P1 | [1] | HOOK | KOB |
| 5. | YN02C02034F1 | [1] | CAB GLASS | KOB |
| 5-1. | YN02C02034S001 | [1] | FRAME ASSY | KOB |
| 5-2. | YN02C02035P1 | [1] | GLASS | KOB |
| 5-3. | YN02C02036P1 | [1] | GLASS | KOB |
| 5-4. | YN02C02034S004 | [1] | SEAL | KOB |
| 5-5. | YN02C02034S005 | [2] | LOCK | KOB |
| 5-6. | YN02C02034S006 | [1] | SEAL | KOB |
| 5-7. | YN02C02034S007 | [1] | SEAL | KOB |
| 5-8. | YN02C02034S008 | [1] | STOP | KOBSTOPPER |
| 5-9. | YN02C02034S009 | [1] | STOP | KOB |
| 5-10. | YN02C02034S010 | [1] | STOP | KOB |
| 6. | YN02C02044P1 | [1] | N/A GLASS | N/A GLASS |
| 7. | YN51C01029P1 | [1] | LOCK | KOB Superseded by part number: YN51C01093P2 |
| 8. | YN02C01635P1 | [2] | HINGE | KOB |
| 9. | ZS13C10025 | [6] | CAPSCREW | KOBSCREW M10x1.50x25mm Superseded by part number: ZS18C10025 |
| 10. | ZW11P10000 | [6] | WASHER ID 10 x OD 21 x Th 2.0mm | WASHER ID 10 x OD 21 x Th 2.0mm |
| 11. | YN51C01023P1 | [1] | SEAL | KOB630mm Long (24-51/64 in) Superseded by part number: YN51C01180P1 |
| 12. | YT51C01065D1 | [2] | PLATE | KOB |
| 13. | YT02C01261D4 | [2] | PLATE | KOB |
| 14. | YT02C01233P1 | [2] | CAP | KOB |
| 15. | YN51C01055P1 | [1] | TRIM PANEL | KOB |
| 16. | YT02C01246P1 | [1] | PLATE | KOB |
| 17. | YN51C01051P1 | [1] | RUBBER SLEEVE | KOB Superseded by part number: YN51C01051P2 |
| 18. | YT51C01039P1 | [1] | GROMMET | KOB |
| 19. | YT02C01394P1 | [2] | GASKET | KOB |
| 20. | ZS41C06016 | [3] | SCREW,M6 x 16mm | KOBM06x1.0x16mm |
| 21. | YN51C01030P1 | [3] | RUBBER | KOB Superseded by part number: 2418R604 |
| 22. | YN51C01042P1 | [1] | COVER | KOB |
| 23. | YT02C01296P1 | [6] | RIVET | KOB |
| 24. | YN51C01040P1 | [3] | HOLDER | KOB |
| 25. | YN51C01016P1 | [1] | ROD | KOB |
| 26. | YN51C01015P1 | [1] | ROD | KOB |
| 27. | ZN18C08007 | [2] | NUT | KOBM08x1.25mm |
| 28. | YT51C01068P1 | [2] | WASHER | KOBID 08.1 x OD 15.5 x Th 2.5mm |
| 29. | ZW26X08000 | [2] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 30. | YT02C01295D2 | [1] | RUBBER | KOB |
| 31. | ZM27C10025 | [2] | BOLT | KOBM10x1.50x25mm (Incls. Washer & Lockwasher) |
| 32. | YN17M01033D3 | [1] | SCREW | KOBM05x10mm |
| 33. | YN51C01031P1 | [2] | RUBBER SLEEVE | KOB |
| 34. | YT02C01230P1 | [3] | WASHER,6.4mm ID x 12mm OD x 0.5mm Thk | KOBStar Lock -- ID 06.40 ± 0.30 x OD 12 x Th 0.5mm |
| 35. | YN51C01048F1 | [1] | CHAIN | KOB Superseded by part number: YN51C01155F1 |
| 35-1. | YT51C01027P1 | [1] | LOCK | KOB |
| 35-2. | YN51C01024P1 | [1] | LINK | KOB |
| 35-3. | YN51C01014P1 | [1] | ROD | KOB Superseded by part number: YN51C01154P1 |
| 35-4. | YN51C01013P1 | [1] | ROD | KOB |
| 35-5. | YN51C01018P1 | [1] | PLATE | KOB |
| 35-6. | YN51C01017P1 | [1] | ROD | KOB Superseded by part number: YN51C01155F1 |
| 35-7. | YT51C01017P1 | [3] | PIN | KOB |
| 35-8. | YN51C01032P1 | [3] | HOLDER | KOB |
| 35-9. | YT51C01016P1 | [1] | PIN | KOB |
| 35-10. | YN51C01040P1 | [1] | HOLDER | KOB |
| 36. | YN51C01019P1 | [1] | PLATE | KOB |
| 37. | YT51C01018P1 | [1] | HOLDER | KOB |
| 38. | YT51C01029P1 | [1] | CLIP | KOB40x33x3.7mm |
| 39. | YT02C01241D1 | [3] | BOLT | KOBM08x1.25x12mm |
| 40. | YN51C01052P1 | [3] | WASHER | KOBID 11 x OD 25 x Th 1.6mm |
| 41. | YN51C01053P1 | [2] | RUBBER | KOB |
| 42. | YN51C01054P1 | [1] | RUBBER SLEEVE | KOB |
| 43. | YN51C01028P1 | [1] | DOOR HANDLE | KOB |
| 44. | ZW16X08000 | [3] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| 45. | YN51C01046P1 | [1] | HANDLE | KOB |
