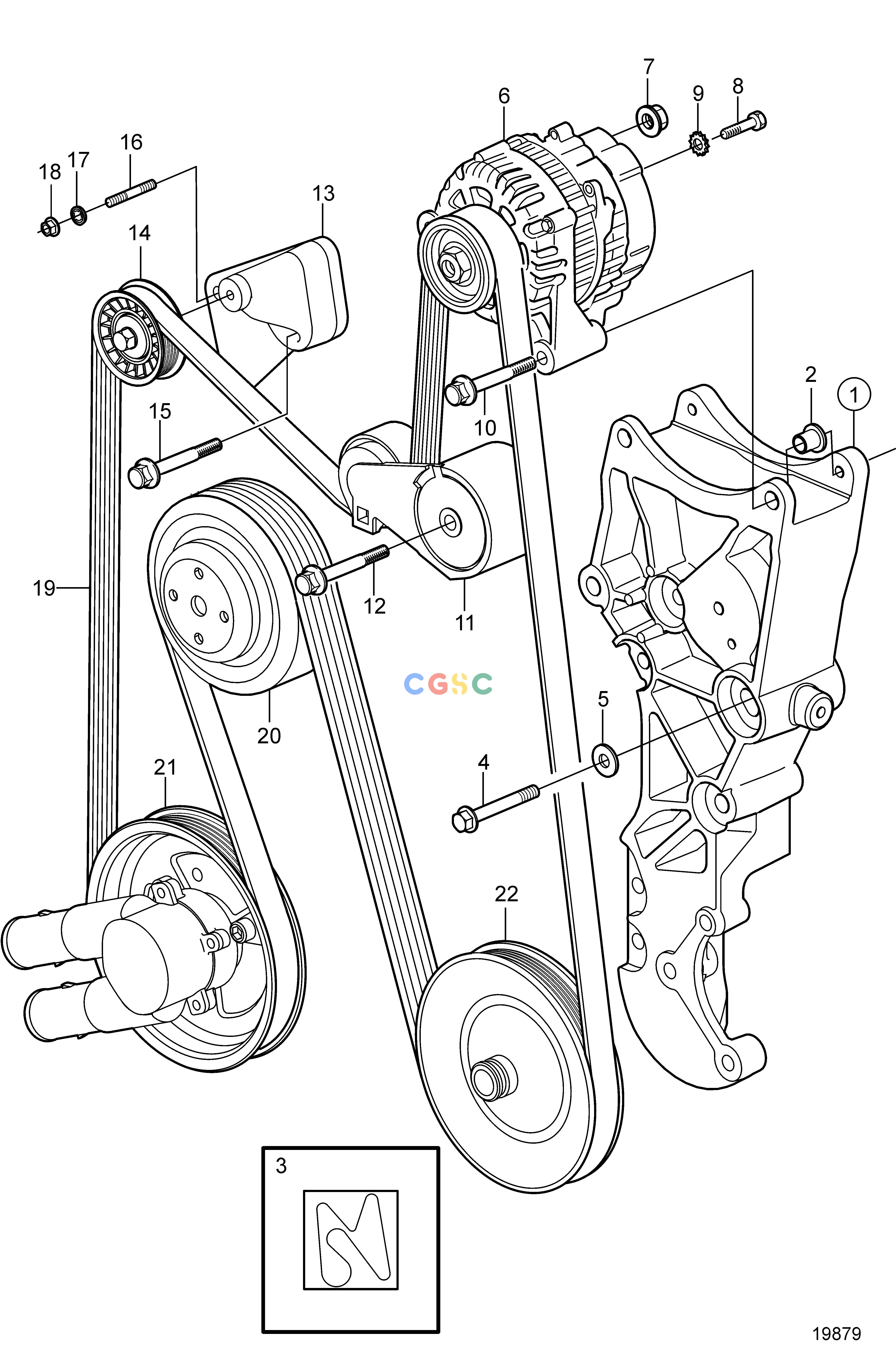

沃尔沃零件查询5.0GXi-E; 5.0GXi-EF; 5.0OSi-E; 5.0OSi-EFElectrical SystemSerpentine Belt and AlternatorEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
193 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3860080
|
[1] |
Bracket
|
|
| 2. |
3854579
|
[2] |
Bushing
|
|
| 3. |
3863274
|
[1] |
Decal
|
|
| 4. |
3853367
|
[4] |
Flange screw
|
|
| 4. |
3853392
|
[1] |
Flange screw
|
|
| 5. |
980933
|
[2] |
Washer
|
|
| 6. |
3862665
|
[1] |
Alternator
|
|
| 7. |
945408
|
[1] |
Flange nut
|
|
| 8. |
3852208
|
[1] |
Screw
|
|
| 9. |
3852520
|
[1] |
Washer
|
|
| 10. |
3853367
|
[2] |
Flange screw
|
|
| 11. |
3860079
|
[1] |
Belt tensioner
|
|
| 12. |
3854805
|
[1] |
Screw
|
|
| 13. |
3860078
|
[1] |
Bracket
|
|
| 14. |
3860201
|
[1] |
Idler pulley
|
|
| 15. |
3860499
|
[1] |
Screw
|
|
| 16. |
3860928
|
[2] |
Stud
|
|
| 17. |
3860538
|
[2] |
Spring clip, speed
|
|
| 18. |
3853404
|
[2] |
Nut
|
|
| 19. |
3586326
|
[1] |
Belt
|
|
| 20. |
7744400_017
|
|
Pulley, circulation pump
|
|
| 21. |
7744400_018
|
|
Sea water pump
|
|
| 22. |
7744400_032
|
|
Pulley, power steering pump
|
|
