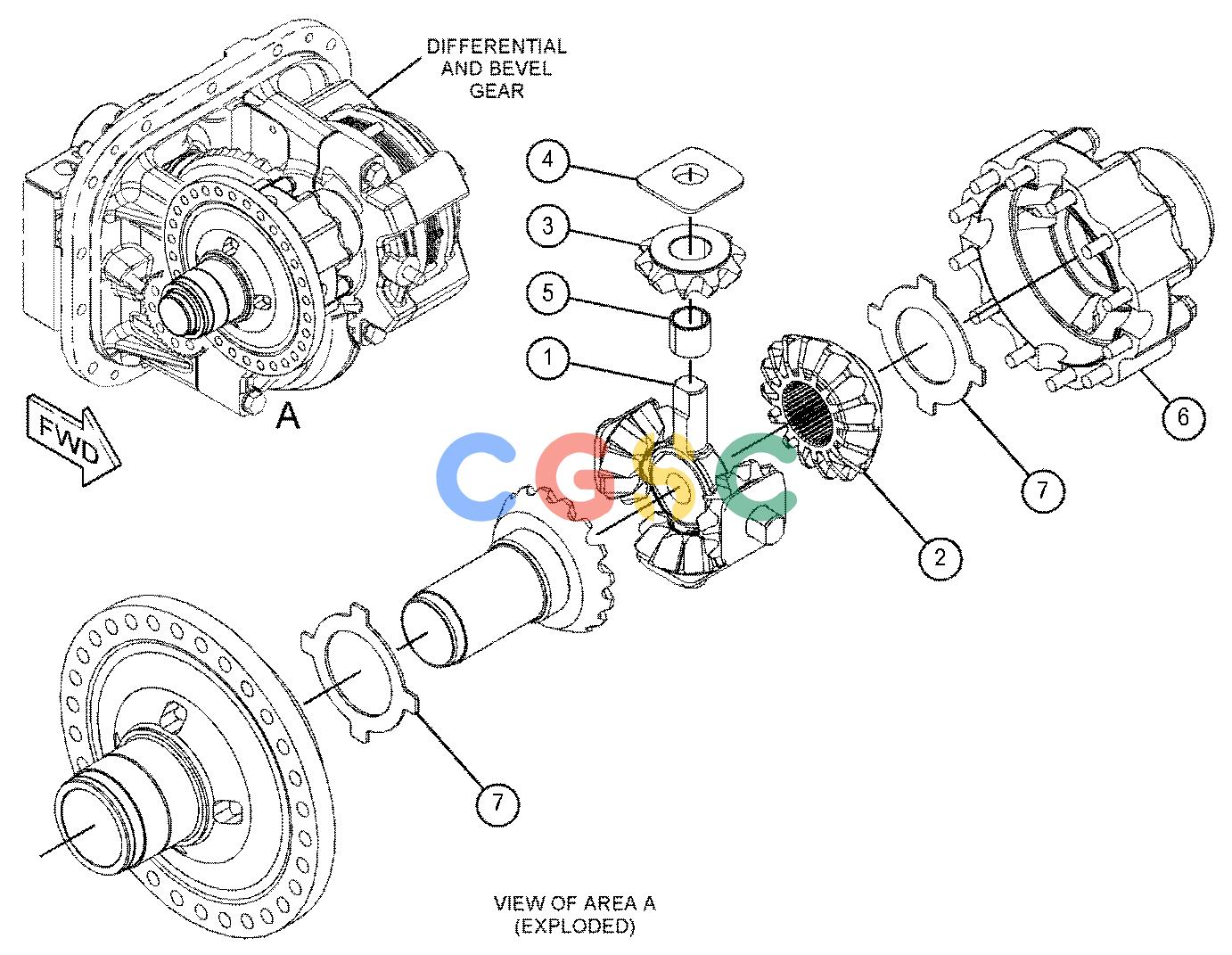

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 5V-1274 | [1] | SPIDER | |
| 2. | 8R-1704 | [1] | GEAR-DIFFERENTIAL BEVEL(16-TEETH) | |
| 3. | 138-1511 | [4] | PINION | |
| 4. | 138-4112 | [4] | WASHER | |
| 5. | 188-2467 | [4] | BUSHING | |
| 6. | 333-4622 | [1] | CASE AS-DIFFERENTIAL | |
| 5P-8245 | [12] | WASHER-HARD(13.5X25.5X3-MM THK) | ||
| 8T-0372M | [12] | BOLT(M12X1.75X90-MM) | ||
| 7. | 446-6211 | [2] | WASHER-THRUST | |
| PARTS SHOWN IN GRAPHIC(S) WITHOUT A REFERENCE NUMBER ARE NOT SERVICED SEPARATELY | ||||
| M | METRIC PART | |||
