神钢零件查询(ED190LC) - BLADE RUNNER EXCAVATOR/DOZER BTW YL02U0101 - YL03U0135 (1/02-12/06) (01-054) - COVER ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
537 次

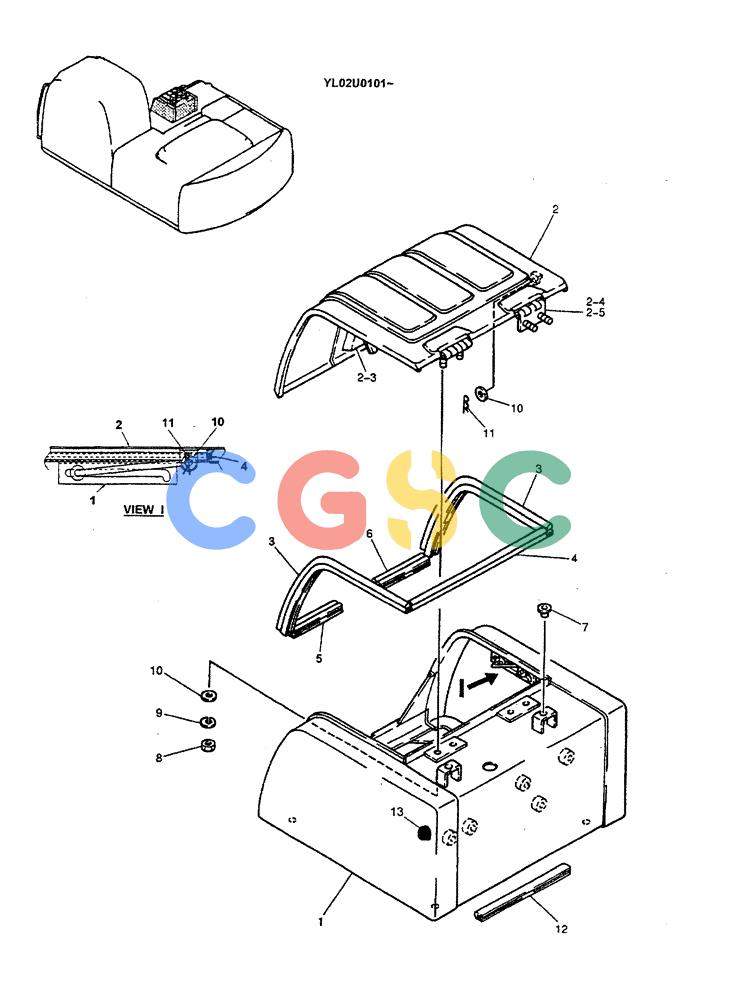

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YM21C01014F1 | [1] | COVER ASSY | KOB |
| 1. | YM21C01012P1 | [1] | BOX | KOB |
| 2. | YN21C01660P1 | [1] | COVER | KOB |
| 2-3. | YW21C01357P1 | [1] | LOCK | KOB Superseded by part number: 77275530, YW21C01357P2 |
| 2-4. | 2420T4450 | [2] | HINGE | KOB |
| 2-5. | ZS11C10025 | [4] | CAP,Hex, M10 x 25mm, Cl 4.8 | KOBScrew -- M10x1.50x25mm Superseded by part number: ZS18C10025 |
| 3. | YN21C01712D1 | [2] | WEATHERSTRIP | KOB710mm Long (27-61/64 in) |
| 4. | YN21C01712D6 | [1] | WEATHERSEAL STRIP | KOBWeatherstrip, 525mm Long (20-21/32 in) |
| 5. | YN21C01712D7 | [1] | WEATHERSEAL STRIP | KOBWeatherstrip, 175mm Long (6-7/8 in) |
| 6. | YN21C01712D4 | [1] | WEATHERSTRIP | KOB165mm Long (6-1/2 in) |
| 7. | YN21C01681P1 | [2] | BUSHING | KOB |
| 8. | ZN18C10008 | [4] | NUT | KOBM10x1.50mm |
| 9. | ZW26X10000 | [4] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 10. | ZW16X10000 | [5] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 11. | 2419R9D2 | [1] | COTTER PIN | KOBOD 08mm x 27.7mm Long |
| 12. | YN21C01135D1 | [1] | SEAL SHEET | KOB |
| 13. | 2420R429D11 | [1] | GROMMET | KOB |
