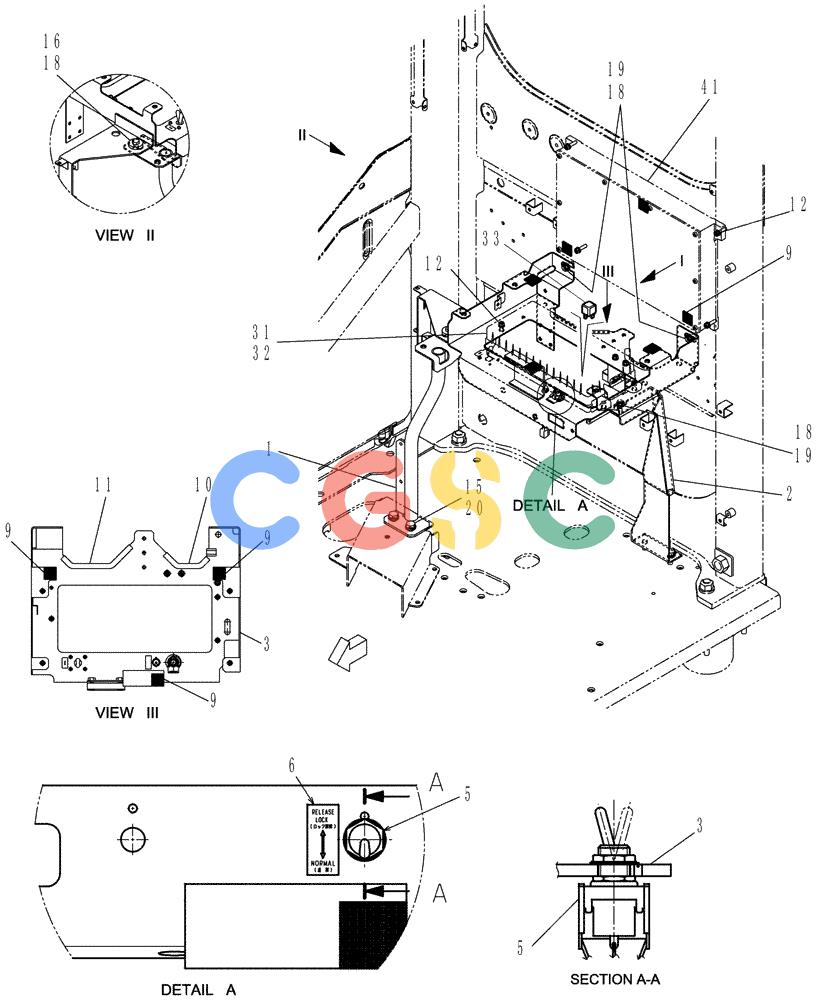

纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (01-054[00]) - CONTROLLER INSTAL New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
608 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YN22E01322P1 | [1] | SUPPORT | SM |
| 2. | YN22E01363P1 | [1] | SUPPORT | SM |
| 3. | YN22E01357P1 | [1] | SUPPORT | SM |
| 5. | YN50S00047P1 | [1] | TOGGLE SWITCH | KOB |
| 6. | YN22M01014P1 | [1] | LABEL | KOB |
| 9. | YN22E01334P1 | [5] | COLLAR | SM |
| 10. | PM22C01020D7 | [1] | STRIP | KOB |
| 11. | PM22C01020DH | [1] | INSULATING PANEL | KOB |
| 12. | ZM61C06025 | [7] | BOLT | KOBM06x1.0x25mm (Incls. Washer & Lockwasher) |
| 15. | ZM73C10025 | [4] | BOLT,M10x25mm - Course Thread | KOBM10x1.50x25mm (Incls. Washer) |
| 16. | ZS18C08020 | [1] | SCREW,Hex, M8 x 20mm | KOBM08x1.25x20mm |
| 18. | YN02C02015P1 | [1] | WASHER | KOB |
| 19. | ZM73C08020 | [3] | BOLT,M8x20mm - Course Thread | KOBM08x1.25x20mm (Incls. Washer) |
| 20. | NSS | [1] | NOT SERVICED SEPARATELY | CONSee Ref 15 |
| 31. | YN24E00016F2 | [1] | RELAY | KOBBox Assy Superseded by part number: YN24E00016F3 |
| 32. | YN73E01026P2 | [1] | DATA PLAQUE | KOB |
| 33. | YN24S00010P1 | [1] | RELAY | KOB |
| . . | YN22E00396F1 | [1] | CONTROLLER | KOBWith Software Superseded by part number: YN22E00425F1 |
| . . | YN22E00425F1 | [1] | CONTROLLER | KOBWithout Software |
| . . | YN22E00425F1R | [1] | REMAN-ELECTRONIC CONTROL UNIT | KOBSK210-8 TIER 3 ROPS (NA) ASN YQ12U4800 |
| . . | YN22E00425F1C | [1] | CORE-ELECTRONIC CONTROL UNIT | KOBReturn Number |
