纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (01-056[00]) - CONVERTER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
832 次

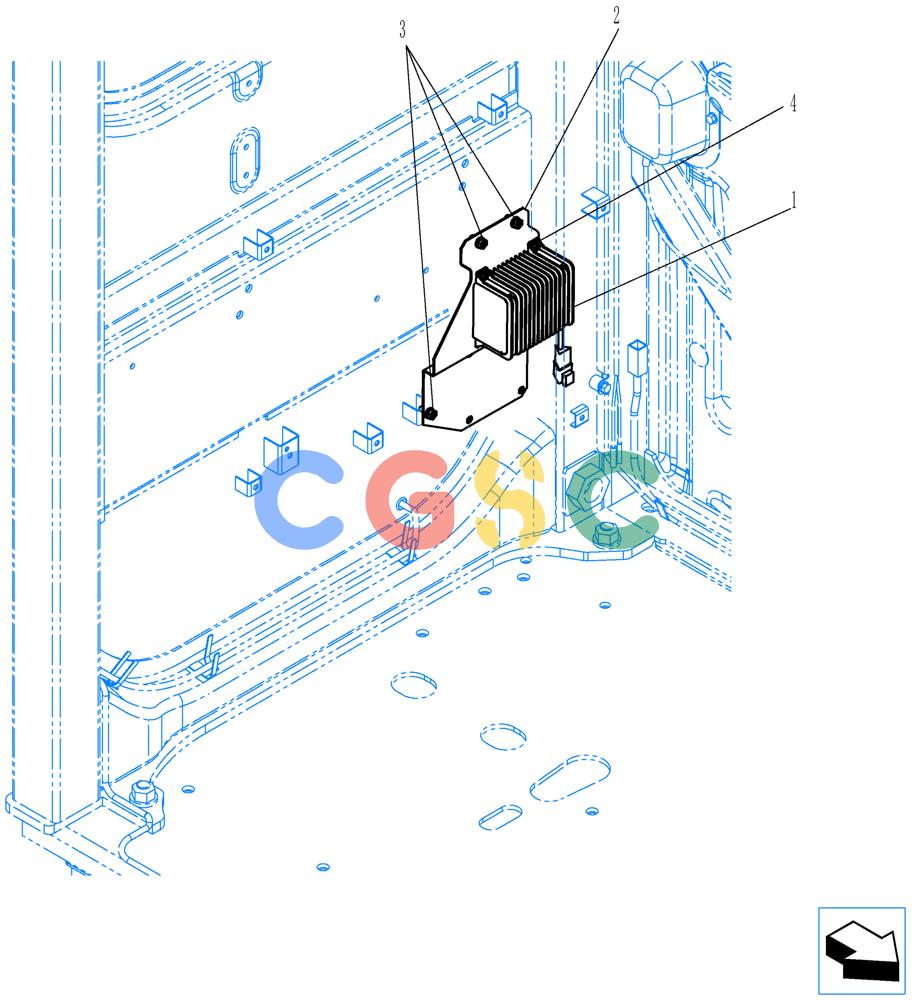

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YN77S00017P1 | [1] | CONVERTER,24V In - 13.2V Out - 7.5A | KOB(With 6 Pin Connector Without Pigtail) |
| 1. | 84130880 | [1] | VOLTAGE REGULATOR | SM(With 3 Pin Connector on Pigtail) |
| 3. | ZM73C06016 | [3] | BOLT,M6x16mm - Course Thread | KOBM06x1.0x16mm (Incls. Washer) |
| 4. | ZM61C05016 | [2] | BOLT | KOBM05x0.8x16mm (Incls. Washer & Lockwasher) |
