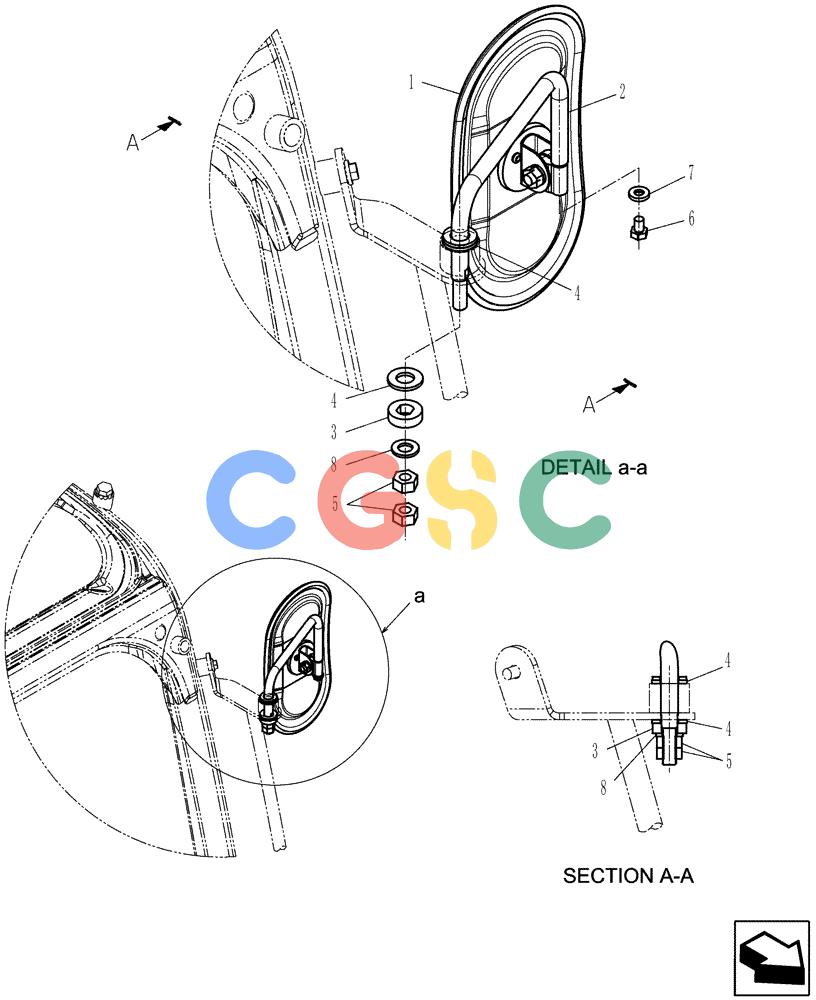

纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (01-061[00]) - MIRROR INSTALLATION, CAB New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
192 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | PY02C01079P1 | [1] | MIRROR | KOB |
| 2. | LQ52C01026P1 | [1] | STAY | SM |
| 3. | LQ52C01025P1 | [1] | WASHER | SM |
| 4. | LQ52C01021P1 | [2] | WASHER | SM |
| 5. | ZN18C12010 | [2] | NUT | KOBM12x1.75mm |
| 6. | ZS18C08012 | [1] | SCREW,Hex, M8 x 12mm | KOBM08x1.25x12mm |
| 7. | ZW16H08000 | [1] | WASHER | KOBID 08 x OD 18 x Th 3.2mm |
| 8. | ZW16P12000 | [1] | WASHER | KOBID 13 x OD 24 x Th 2.5mm |
