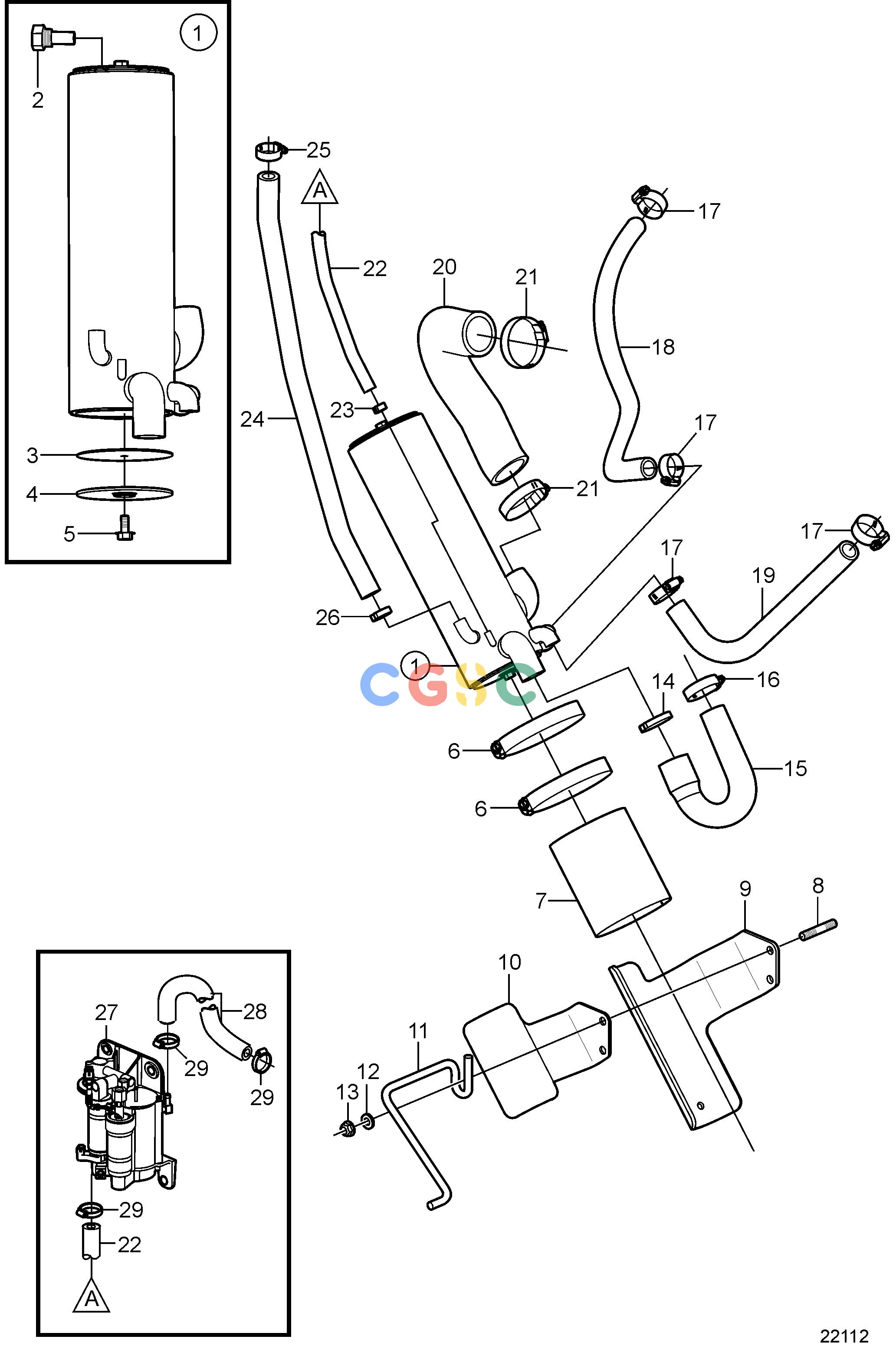

沃尔沃零件查询5.0GXi-F; 5.0GXi-FF; 5.0OSi-F; 5.0OSi-FFCooling SystemHeat ExchangerEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
239 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3861471
|
[1] |
Heat exchanger
|
|
| 2. |
3858995
|
[1] |
Anode
|
|
| 3. |
3858993
|
[2] |
Gasket
|
|
| 4. |
3858992
|
[2] |
Cover
|
|
| 5. |
3858994
|
[2] |
Screw
|
|
| 6. |
3863443
|
[2] |
Hose clamp
|
|
| 7. |
3861453
|
[1] |
Gasket
|
|
| 8. |
941814
|
[2] |
Stud
|
|
| 9. |
3842368
|
[1] |
Bracket
|
|
| 10. |
3842369
|
[1] |
Bracket
|
|
| 11. |
3817688
|
[1] |
Bracket
|
|
| 12. |
980933
|
[2] |
Washer
|
|
| 13. |
3857181
|
[2] |
Flange lock nut
|
|
| 14. |
982717
|
[1] |
Clamp
|
|
| 15. |
3817818
|
[1] |
Hose
|
|
| 16. |
3863440
|
[1] |
Hose clamp
|
|
| 17. |
3812303
|
[4] |
Hose clamp
|
|
| 18. |
3860588
|
[1] |
Hose
|
Starboard exhaust manifold
|
| 19. |
3860587
|
[1] |
Hose
|
Port exhaust manifold
|
| 20. |
3861472
|
[1] |
Hose
|
|
| 21. |
3863438
|
[2] |
Hose clamp
|
|
| 22. |
3860590
|
[1] |
Hose
|
Fuel pump
|
| 23. |
982643
|
[1] |
Clamp
|
|
| 24. |
3861485
|
[1] |
Hose
|
Expansion tank
|
| 25. |
3812303
|
[1] |
Hose clamp
|
|
| 26. |
982967
|
[1] |
Clamp
|
|
| 27. |
|
|
|
|
| 28. |
3862550
|
[1] |
Hose
|
|
| 29. |
3860413
|
[3] |
Hose clamp
|
|
