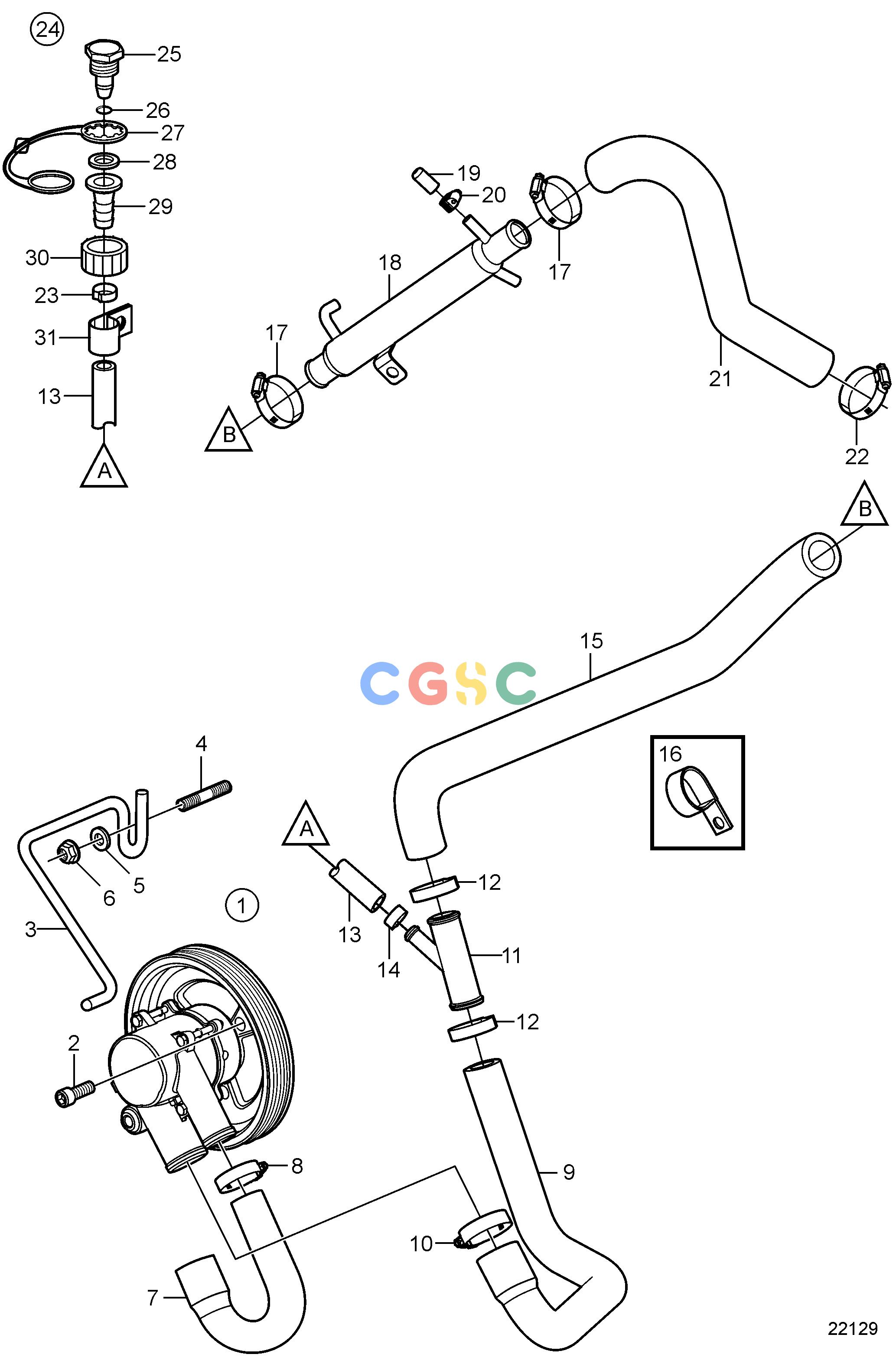

沃尔沃零件查询5.0GXi-F; 5.0GXi-FF; 5.0OSi-F; 5.0OSi-FFCooling SystemSeawater Pump and HosesEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
603 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3812519
|
[1] |
Pump
|
Replaced by next part number
|
| 1. |
21212799
|
[1] |
Pump
|
|
| 1. |
3842786
|
[1] |
Impeller kit
|
Replaced by 21213664
|
| 2. |
3857939
|
[3] |
Screw
|
|
| 3. |
3817688
|
[1] |
Bracket
|
|
| 4. |
941814
|
[2] |
Stud
|
|
| 5. |
980933
|
[2] |
Washer
|
|
| 6. |
3857181
|
[2] |
Flange lock nut
|
|
| 7. |
3817818
|
[1] |
Hose
|
|
| 8. |
3863440
|
[1] |
Hose clamp
|
|
| 9. |
3817823
|
[1] |
Hose
|
|
| 10. |
3863441
|
[1] |
Hose clamp
|
|
| 11. |
3862699
|
[1] |
T-pipe
|
|
| 12. |
982645
|
[2] |
Clamp
|
|
| 13. |
3862901
|
[1] |
Hose
|
|
| 14. |
983168
|
[1] |
Hose clamp
|
|
| 15. |
3862543
|
[1] |
Hose
|
|
| 16. |
3853312
|
[1] |
Clamp
|
|
| 17. |
3862629
|
[1] |
Oil cooler
|
|
| 18. |
3863444
|
[2] |
Hose clamp
|
|
| 19. |
3856766
|
[1] |
Cap
|
|
| 20. |
3860413
|
[1] |
Hose clamp
|
|
| 21. |
3817579
|
[1] |
Hose
|
|
| 22. |
3812302
|
[1] |
Hose clamp
|
|
| 23. |
983146
|
[1] |
Clamp
|
|
| 24. |
3807440
|
[1] |
Connector
|
|
| 25. |
|
|
|
|
| 26. |
942978
|
[1] |
O-ring
|
|
| 27. |
3862082
|
[1] |
Retainer
|
|
| 28. |
3807664
|
[1] |
Washer
|
|
| 29. |
|
|
|
|
| 30. |
|
|
|
|
| 31. |
3862891
|
[1] |
Attaching clamp
|
|
