神钢零件查询(ED190LC) - BLADE RUNNER EXCAVATOR/DOZER BTW YL02U0101 - YL03U0135 (1/02-12/06) (01-068[01]) - ELEC ASSY, UPP Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
244 次

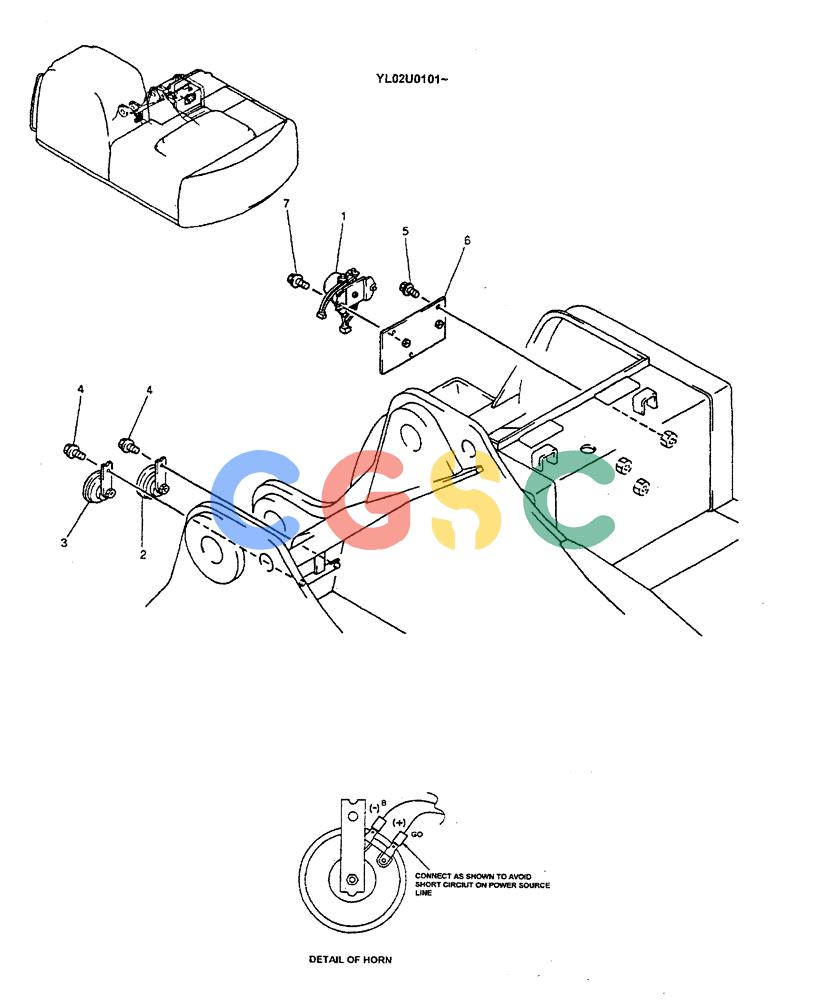

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YM03E00001F1 | [1] | ELECTRICAL ASSY, UPPER | |
| 1. | YT24S00001F1 | [1] | RELAY | KOB |
| 2. | 2479U1009F1 | [1] | HORN,24V, 390HZ | KOBHigh (415Hz) Superseded by part number: CM53S00002F1 |
| 3. | 2479U1009F2 | [1] | HORN,24V, 350HZ | KOBLow (390Hz) Superseded by part number: CM53S00002F2 |
| 4. | ZM11C08025 | [2] | BOLT | KOBM08x1.25x25mm (Incls. Lockwasher) |
| 5. | ZM22C08020 | [4] | BOLT | KOBM08x1.25x20mm (Incls. Washer & Lockwasher) |
| 6. | YM03E01001P1 | [1] | BRACKET | KOB |
| 7. | ZM22C08030 | [2] | BOLT | KOBM08x1.25x30mm (Incls. Washer & Lockwasher) |
| 8. | ZN18C06005 | [2] | NUT | KOBM06x1.0mm |
| 9. | ZW26X06000 | [2] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 10. | ZM66C06016 | [2] | BOLT | KOBM06x1.0x16mm (Incls. Washer & Lockwasher) |
