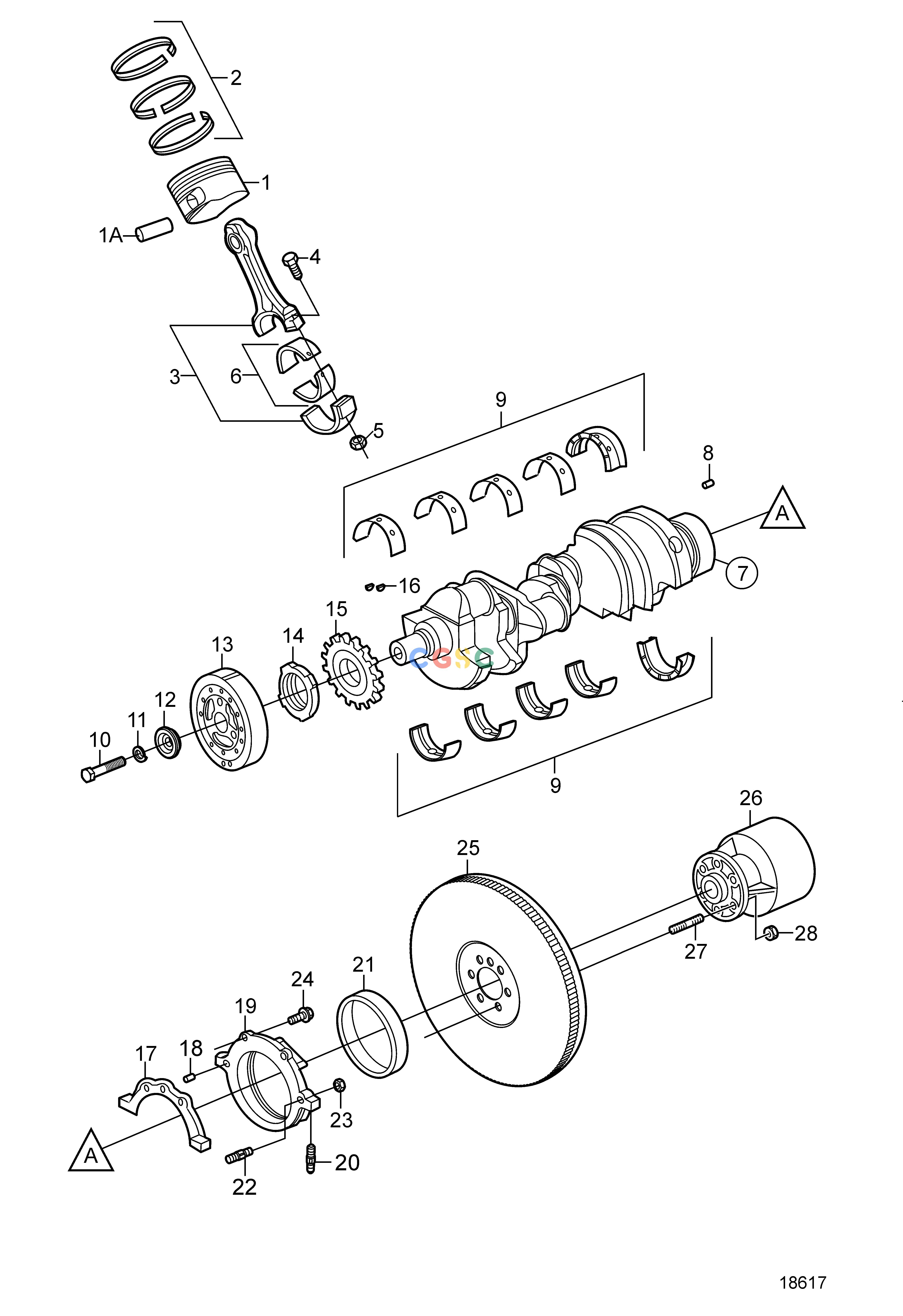

沃尔沃零件查询5.0GXi-F; 5.0GXi-FF; 5.0OSi-F; 5.0OSi-FFEngineCrankshaft and Related PartsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
329 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3857667
|
[8] |
Piston
|
other
|
| 1. |
3857669
|
[1] |
Piston
|
O.S=.030'' (0,76mm)
|
| 1. |
|
|
|
not sold separately
|
| 2. |
3857670
|
[8] |
Piston ring kit
|
other
|
| 2. |
3857672
|
[1] |
Piston ring kit
|
O.S=.030'' (0,76mm)
|
| 3. |
3853957
|
[8] |
Connecting rod
|
|
| 4. |
3853162
|
[16] |
Bolt
|
|
| 5. |
3853413
|
[16] |
Nut
|
|
| 6. |
3853149
|
[8] |
Bearing
|
|
| 7. |
3856923
|
[1] |
Crankshaft
|
|
| 8. |
3855969
|
[1] |
Pin
|
|
| 9. |
3862360
|
[1] |
Bearing kit
|
|
| 10. |
949518
|
[1] |
Hexagon screw
|
|
| 11. |
3852046
|
[1] |
Spring washer
|
|
| 12. |
3858177
|
[1] |
Washer
|
|
| 13. |
3862261
|
[1] |
Vibration damper
|
|
| 14. |
3862363
|
[1] |
Ring
|
|
| 15. |
3852690
|
[1] |
Sprocket
|
|
| 16. |
3852663
|
[2] |
Woodruff key
|
|
| 17. |
3852656
|
[1] |
Gasket
|
|
| 18. |
3856140
|
[1] |
Pin
|
|
| 19. |
3856925
|
[1] |
Housing
|
|
| 20. |
3853202
|
[2] |
Stud
|
|
| 21. |
3856926
|
[1] |
Sealing
|
|
| 22. |
3853205
|
[1] |
Stud
|
|
| 23. |
3853206
|
[1] |
Nut
|
|
| 24. |
3853203
|
[2] |
Bolt
|
L=.875'' (22,2mm)
|
| 24. |
3853204
|
[1] |
Bolt
|
L=1.75'' (44,5mm)
|
| 25. |
3853958
|
[1] |
Flywheel
|
|
| 25. |
3855970
|
[1] |
Gear
|
|
| 26. |
3858437
|
[1] |
Rubber coupling
|
|
| 27. |
3853274
|
[6] |
Stud
|
|
| 28. |
3853273
|
[6] |
Nut
|
|
