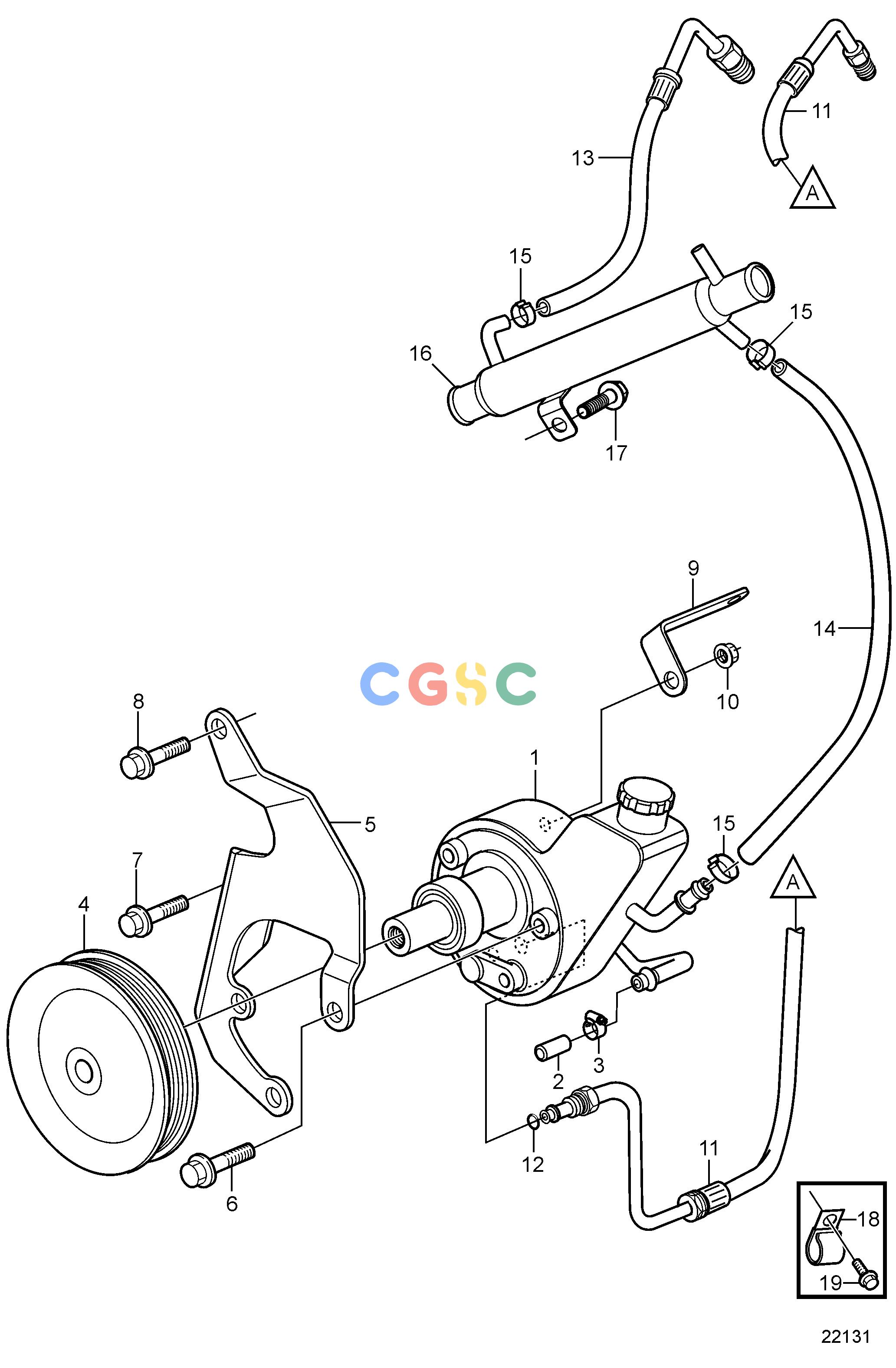

沃尔沃零件查询5.0GXi-F; 5.0GXi-FF; 5.0OSi-F; 5.0OSi-FFSteering SystemSteeringEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
853 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3860871
|
[1] |
Pump
|
|
| 2. |
3856766
|
[2] |
Cap
|
|
| 3. |
3860413
|
[2] |
Hose clamp
|
|
| 4. |
3888078
|
[1] |
Pulley
|
|
| 5. |
3817841
|
[1] |
Bracket
|
|
| 6. |
3853405
|
[3] |
Screw
|
|
| 7. |
3853557
|
[1] |
Flange screw
|
|
| 8. |
3853405
|
[1] |
Screw
|
|
| 9. |
3843928
|
[1] |
Bracket
|
|
| 10. |
971098
|
[1] |
Flange lock nut
|
|
| 11. |
3863145
|
[1] |
Hose
|
|
| 12. |
3852497
|
[1] |
O-ring
|
|
| 13. |
3863148
|
[1] |
Hose
|
|
| 14. |
3863008
|
[1] |
Hose
|
|
| 15. |
982663
|
[3] |
Hose clamp
|
|
| 16. |
3862629
|
[1] |
Oil cooler
|
|
| 17. |
3860582
|
[1] |
Flange screw
|
|
| 18. |
|
|
|
|
| 19. |
3853392
|
[1] |
Flange screw
|
|
