神钢零件查询(ED190LC-6E) - BLADE RUNNER EXCAVATOR/DOZER BTW YL03U0136 - YL03U0292 (1/05-12/06) (03-021) - DOZER ASSEMBLY (BEFORE S/N YL03U0154) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
353 次

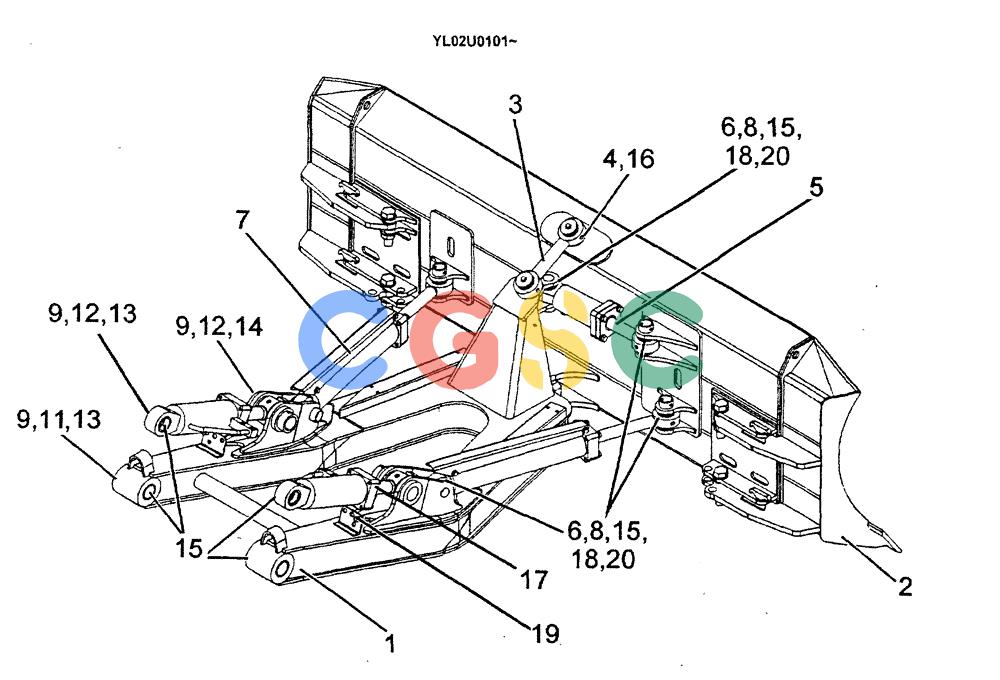

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J20768F2 | [1] | BLADE ASSY | |
| 1. | 24100J21252F1 | [1] | C-Frame Assembly | C-Frame Assembly |
| 2. | 24100J21251F1 | [1] | DOZER BLADE | KOBDOZER BLADE ASSY Superseded by part number: AW206-004-017 |
| 3. | 2406N1874 | [1] | LINK | KOBPITCH Superseded by part number: AW208-504-008 |
| 4. | 2420T9283 | [2] | BOLT | KOB Superseded by part number: AW545-059-026 |
| 5. | 2438U2042 | [1] | CYLINDER | KOBTILT Superseded by part number: AW317-002-558 |
| 6. | 2419P4485 | [6] | PIN | KOB Superseded by part number: AW717-175-078 |
| 7. | 2438U2041 | [2] | CYLINDER | KOBANGLE Superseded by part number: AW317-002-559 |
| 8. | 2420T9284 | [6] | BOLT | KOB Superseded by part number: AW545-059-032 |
| 9. | 2420T9288 | [6] | NUT | KOB Superseded by part number: AW545-023-004 |
| 10. | 24100J21253F1 | [1] | KIT, HYD PIPING | |
| 11. | 2420T9285 | [2] | BOLT | KOB Superseded by part number: AW545-059-054 |
| 12. | 2420T9286 | [4] | BOLT | KOB Superseded by part number: AW545-059-053 |
| 13. | 2419P4486 | [4] | PIN | KOB Superseded by part number: AW717-175-094 |
| 14. | 2419P4487 | [2] | PIN | KOB Superseded by part number: AW717-175-093 |
| 15. | 2420T9270 | [14] | SHIM | KOB Superseded by part number: AW545-069-068 |
| 16. | 2416T28715 | [2] | RETAINER | KOBCLOTHING, BELT Superseded by part number: AW717-970-092 |
| 17. | 2438U2040 | [2] | LIFT CYLINDER | KOBLIFT Superseded by part number: AW317-002-557 |
| 18. | 2420T9289 | [6] | NUT | KOB Superseded by part number: AW545-023-003 |
| 19. | ZG91S02000 | [2] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| 20. | 2418T26353 | [12] | SPACER | KOB Superseded by part number: AW545-069-054 |
