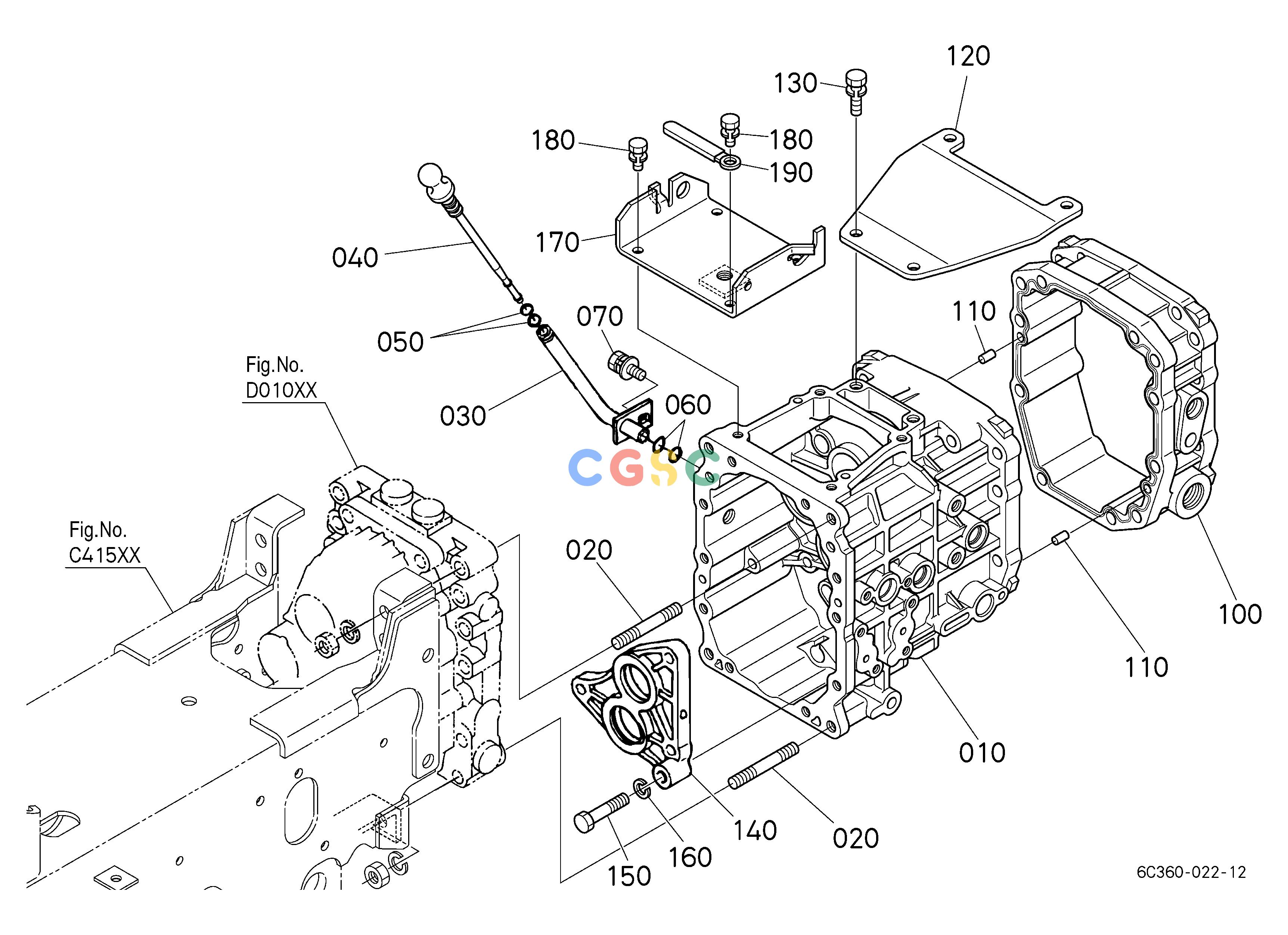

久保田零件查询C42001 TRANSMISSION CASE ## NOTE:ORDER BY REF.No.010 and 030 NEW PARTS. TRANSMISSIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
302 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C17011114
|
[1] |
CASE,TRANSMISSION
|
10.9120(lbs); 4.960
|
| 010. |
6C17011115
|
[1] |
CASE,TRANSMISSION
|
10.9120(lbs); 4.960
|
| 020. |
0155551260
|
[4] |
BOLT,STUD
|
0.1474(lbs); 0.067
|
| 030. |
6A32011152
|
[1] |
PIPE,OIL GAUGE
|
0.1716(lbs); 0.078
|
| 030. |
6A32011154
|
[1] |
PIPE,OIL GAUGE
|
0.1716(lbs); 0.078
|
| 040. |
6C04011163
|
[1] |
GAUGE,OIL
|
0.0220(lbs); 0.010
|
| 050. |
0481600060
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 060. |
0481600120
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 070. |
0112550820
|
[1] |
BOLT,W SEMS
|
0.0308(lbs); 0.014
|
| 100. |
6C36011130
|
[1] |
CASE.SUB,TRANSMISSI.
|
2.4860(lbs); 1.130
|
| 100. |
6C36011132
|
[1] |
CASE.SUB,TRANSMISSI.
|
2.4860(lbs); 1.130
|
| 110. |
0501200614
|
[2] |
PIN,STRAIGHT
|
0.0088(lbs); 0.004
|
| 120. |
6C07011180
|
[1] |
BRACKET
|
1.6720(lbs); 0.760
|
| 130. |
0112351030
|
[2] |
BOLT,SEMS
|
0.0550(lbs); 0.025
|
| 140. |
6C05012110
|
[1] |
HOLDER,BEARING
|
0.5060(lbs); 0.230
|
| 150. |
6C05012120
|
[3] |
BOLT,REAMER
|
0.0792(lbs); 0.036
|
| 160. |
0451250100
|
[3] |
WASHER,SPRING LOCK
|
0.0066(lbs); 0.003
|
| 170. |
6C05012412
|
[1] |
COVER,UPPER
|
1.6720(lbs); 0.760
|
| 170. |
6C05012415
|
[1] |
COVER,UPPER
|
1.6720(lbs); 0.760
|
| 180. |
0112350820
|
[4] |
BOLT,SEMS
|
0.0242(lbs); 0.011
|
| 190. |
1382467590
|
[1] |
CLAMP,CORD (8.5-73)
|
0.0044(lbs); 0.002
|
