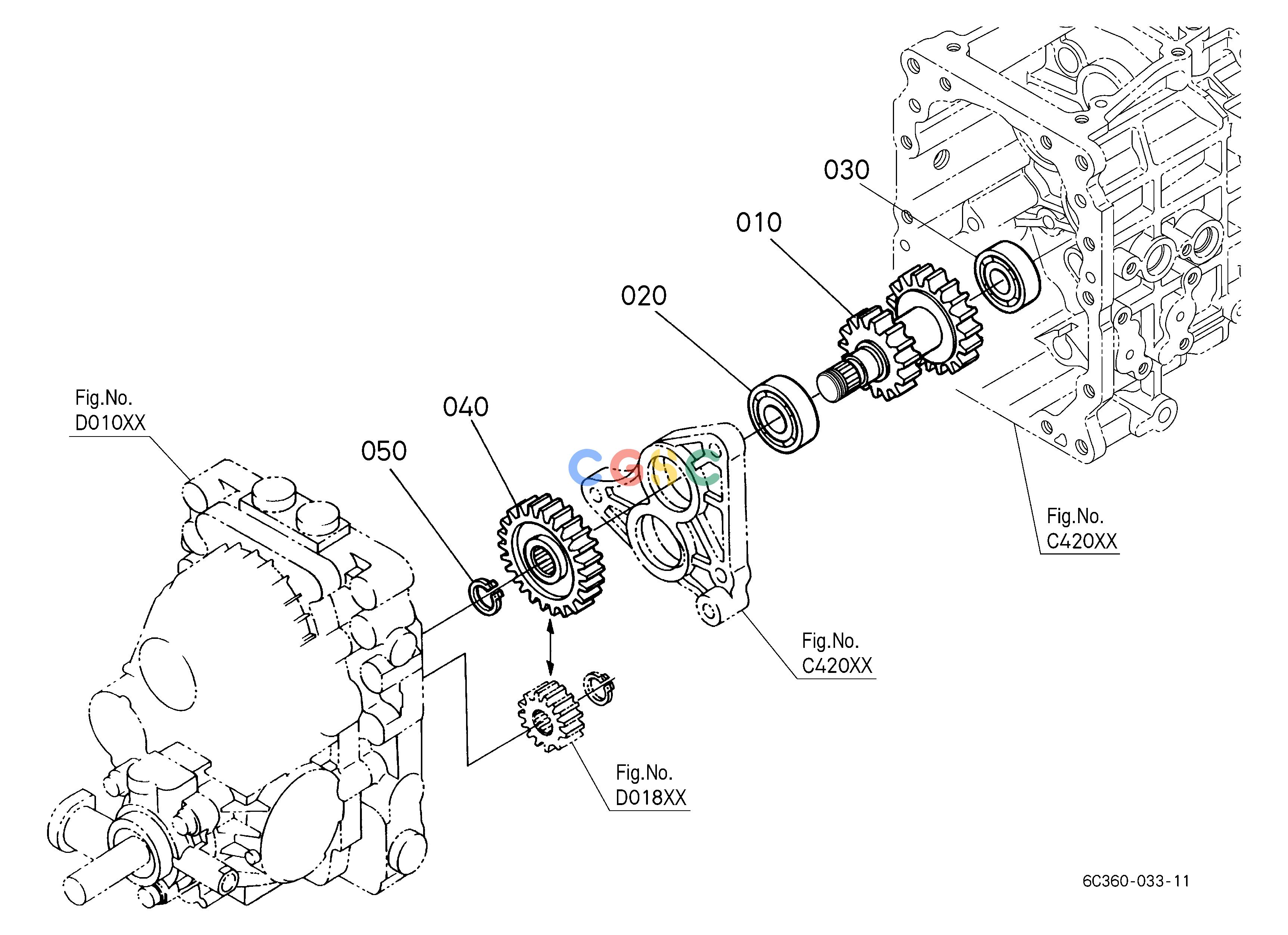

久保田零件查询D09200 SECOND SHAFT ## NOTE:ORDER BY ALL PARTS OF Fig.No.U98800. TRANSMISSIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
321 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C36014210
|
[1] |
GEAR-SHAFT
|
1.7996(lbs); 0.818
|
| 010. |
6C36014212
|
[1] |
GEAR-SHAFT
|
1.7996(lbs); 0.818
|
| 020. |
5230016180
|
[1] |
BEARING
|
0.2266(lbs); 0.103
|
| 020. |
6A70016560
|
[1] |
BEARING,BALL K6204HL1
|
0.2200(lbs); 0.100
|
| 030. |
6136114280
|
[1] |
BEARING,BALL
|
0.1980(lbs); 0.090
|
| 040. |
6C05014280
|
[1] |
GEAR
|
0.7040(lbs); 0.320
|
| 050. |
0461200170
|
[1] |
CIR-CLIP,EXTERNAL
|
0.0022(lbs); 0.001
|
