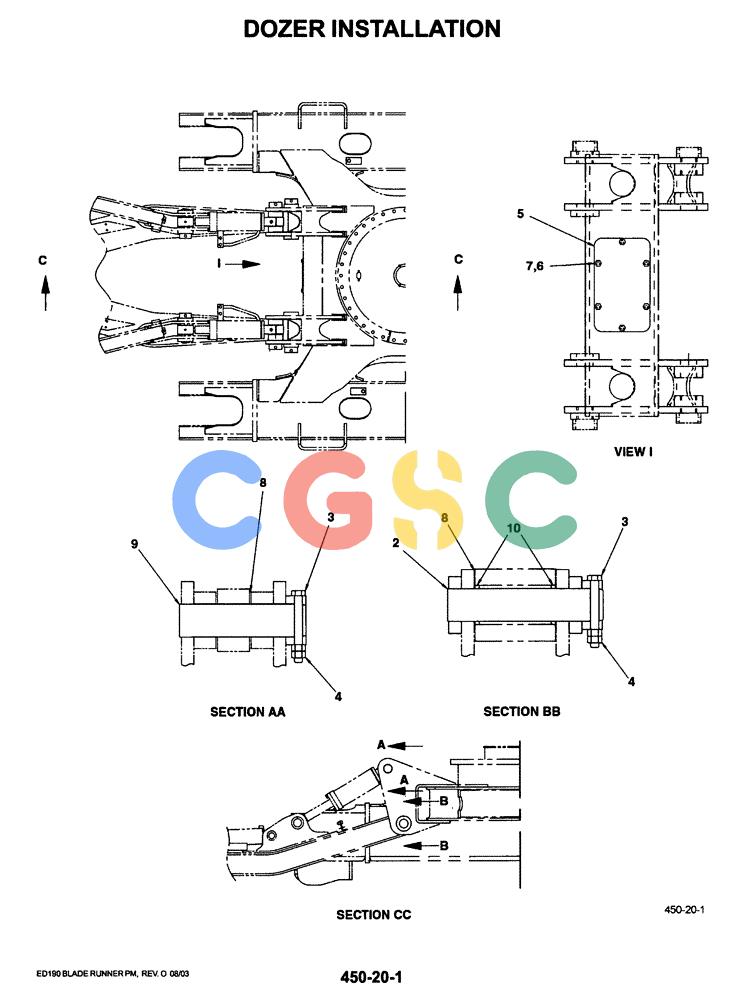

神钢零件查询(ED190LC-6E) - BLADE RUNNER EXCAVATOR/DOZER BTW YL03U0136 - YL03U0292 (1/05-12/06) (03-022) - DOZER INSTALLATION Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
442 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YM51BU0001F2 | [1] | DOZER INSTALLATION | |
| 2. | YM32FU1002P1 | [2] | PIN | KOBOD 63.55 x 303mm Long |
| 3. | HS18C16130G2 | [4] | BOLT,Hex, M16 x 130mm, Cl 10.9 | KOBM16x2.0x130mm |
| 4. | ZN18C16013 | [8] | NUT | KOBM16x2.0mm |
| 5. | YM02FU1042P1 | [1] | PLATE | |
| 6. | ZS18C12020 | [6] | SCREW,Hex, M12 x 20mm | KOBM12x1.75x20mm |
| 7. | ZW26X12000 | [6] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 8. | YY51BU1070P1 | [12] | SHIM | KOB(1.6) |
| 9. | YM32FU1001P2 | [2] | PIN | KOBPIN |
| 10. | YM51BU1108P1 | [4] | SEAL | KOBSEAL, DUST |
