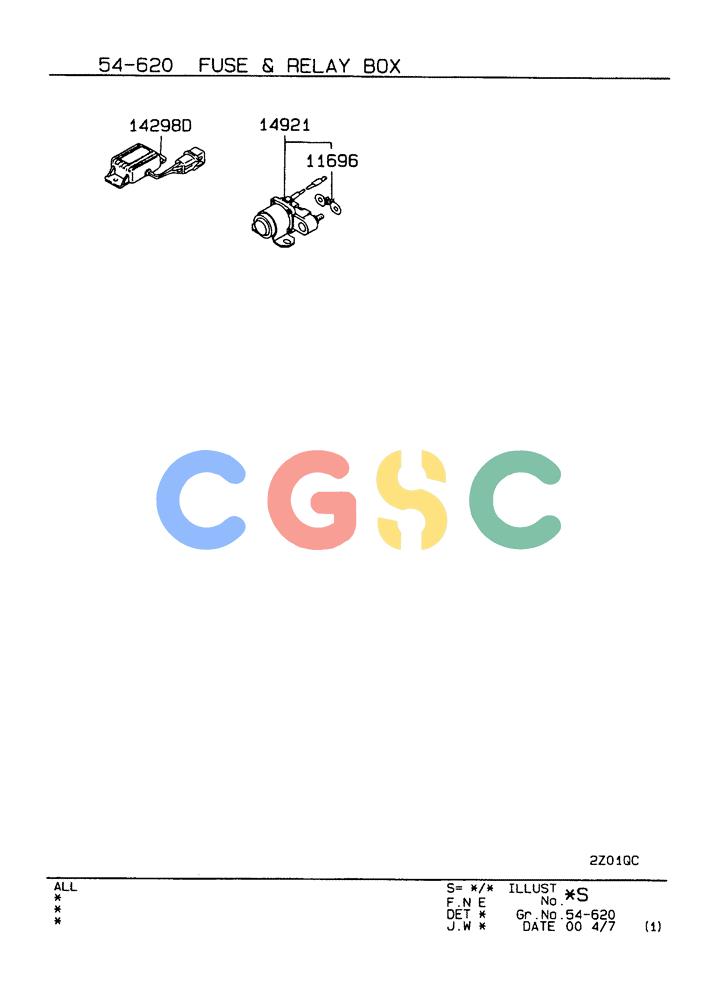

神钢零件查询(ED190LC-6E) - BLADE RUNNER EXCAVATOR/DOZER BTW YL03U0136 - YL03U0292 (1/05-12/06) (54-620) - FUSE AND RELAY BOX Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
709 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 11696. | VAME067636 | [1] | FUSE | KOBFUSE, INTAKE AIR HEATER INR, FROM-UP TO: 0203.1-, MODEL TYPE: ALL, Remarks: BLADE TYPE, 127A |
| 14298D. | VAME077148 | [1] | RELAY | KOBRELAY, ALTERNATOR SAFETY, FROM-UP TO: 0203.1-, MODEL TYPE: ALL |
| 14921. | VAME072890 | [1] | HEATER | KOBRELAY, INTAKE AIR HEATER CONTROL, FROM-UP TO: 0203.1-, MODEL TYPE: ALL Superseded by part number: VA3439000602 |
