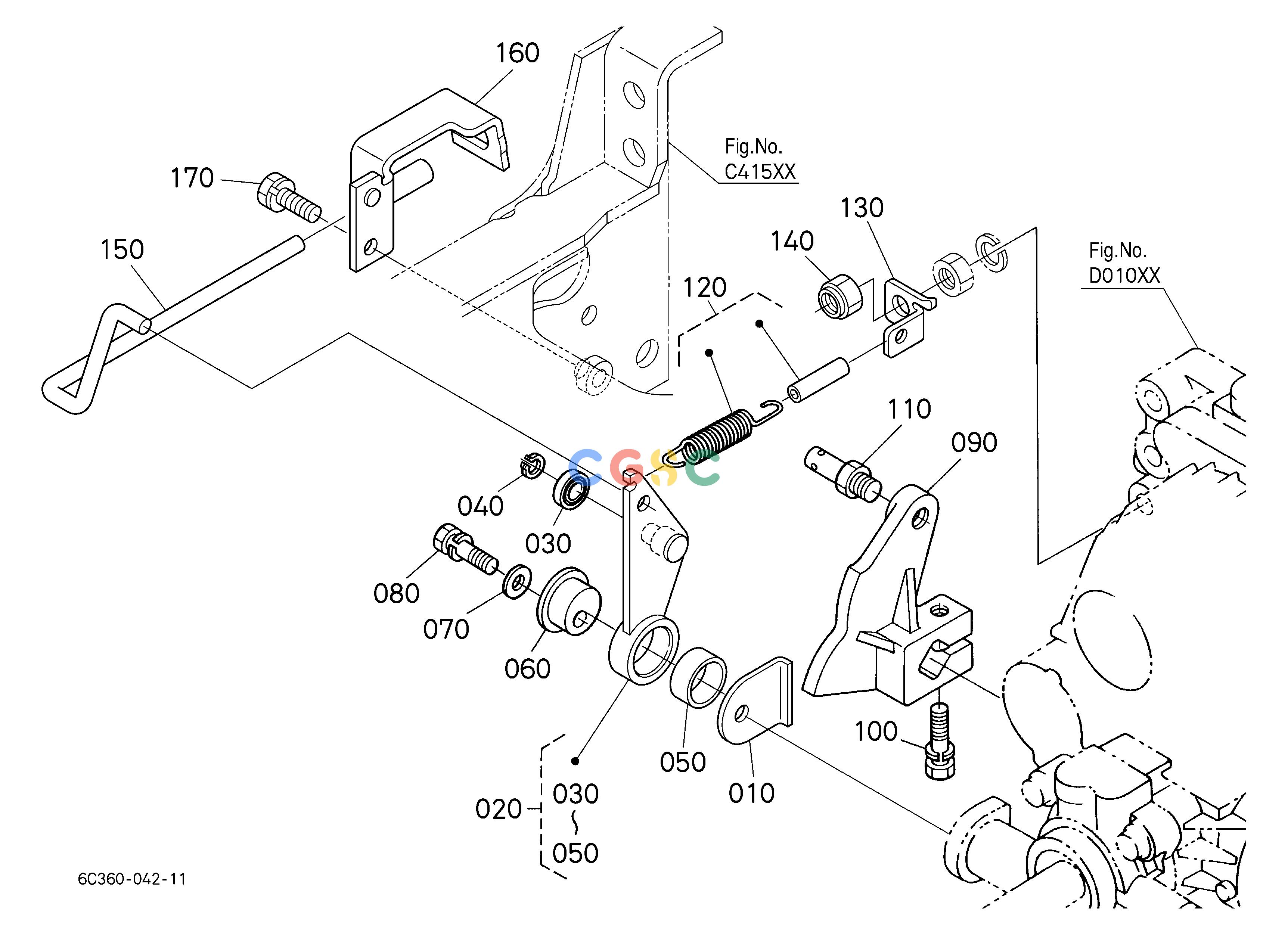

久保田零件查询F10701 NEUTRAL HOLDER LINK ## S.No.<=53639 S.No.;<=53639 SPEED CHANGEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
928 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C15043470
|
[1] |
SPACER
|
0.0198(lbs); 0.009
|
| 020. |
6C15043413
|
[1] |
ASSY ARM,NEUTRAL
|
0.3740(lbs); 0.170
|
| 030. |
3272143420
|
[1] |
BEARING,BALL
|
0.0154(lbs); 0.007
|
| 040. |
0461200120
|
[1] |
CIR-CLIP EXTERNAL
|
0.0022(lbs); 0.001
|
| 050. |
6620443572
|
[1] |
BUSH
|
0.0044(lbs); 0.002
|
| 060. |
6620443352
|
[1] |
SHAFT,HOLDER
|
0.1584(lbs); 0.072
|
| 070. |
0401350080
|
[1] |
WASHER,PLAIN
|
0.0066(lbs); 0.003
|
| 080. |
0112350835
|
[1] |
BOLT,SEMS
|
0.0440(lbs); 0.020
|
| 090. |
6C07043310
|
[1] |
HOLDER,NEUTRAL
|
0.8360(lbs); 0.380
|
| 100. |
0112350835
|
[1] |
BOLT,SEMS
|
0.0440(lbs); 0.020
|
| 110. |
3272143510
|
[1] |
STUD
|
0.0594(lbs); 0.027
|
| 120. |
6C15043500
|
[1] |
SPRING,ASSY
|
0.1100(lbs); 0.050
|
| 130. |
6C15043480
|
[1] |
HOOK,SPRING
|
0.0352(lbs); 0.016
|
| 140. |
0257450100
|
[1] |
NUT,LOCKING
|
0.0154(lbs); 0.007
|
| 150. |
6C15043430
|
[1] |
ROD,HST NEUTRAL
|
0.2200(lbs); 0.100
|
| 160. |
6C15043443
|
[1] |
STAY,NEUTRAL SWITCH
|
0.3190(lbs); 0.145
|
| 170. |
0112350820
|
[1] |
BOLT,SEMS
|
0.0242(lbs); 0.011
|
