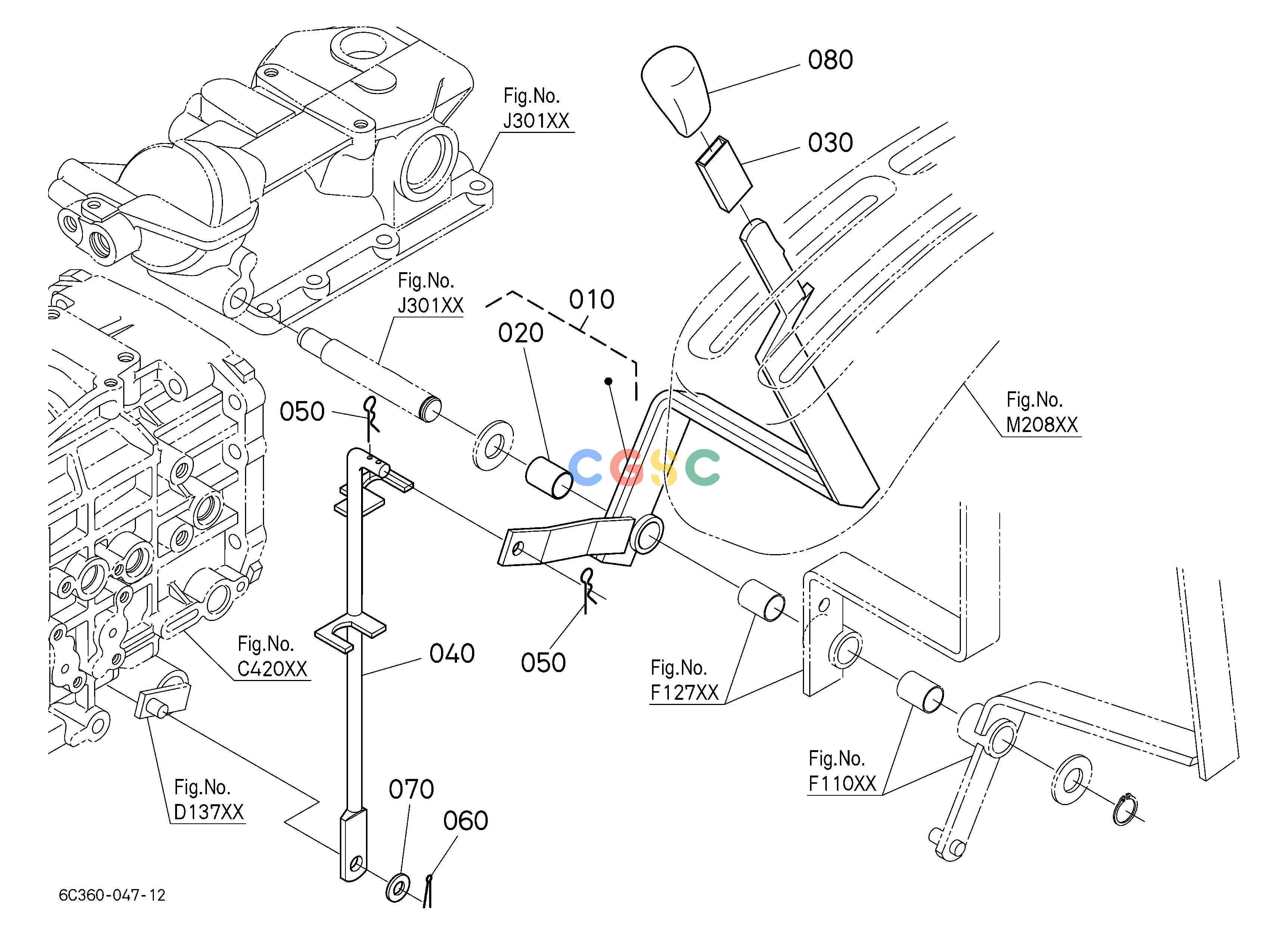

久保田零件查询F12600 PTO GEAR SHIFT LEVER 1 (MID PTO) SPEED CHANGEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
543 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C36042803
|
[1] |
LEVER,MID PTO SHIFT
|
2.4200(lbs); 1.100
|
| 010. |
6C36042804
|
[1] |
LEVER,MID PTO SHIFT
|
2.4200(lbs); 1.100
|
| 020. |
0851101825
|
[1] |
BUSH
|
0.0220(lbs); 0.010
|
| 030. |
6A60038250
|
[1] |
CUSHION(POSITION MA)
|
0.0110(lbs); 0.005
|
| 030. |
6A90038250
|
[1] |
CUSHION
|
0.0066(lbs); 0.003
|
| 040. |
6C06042840
|
[1] |
ROD,MID PTO
|
0.5676(lbs); 0.258
|
| 050. |
0552551000
|
[2] |
PIN SNAP
|
0.0044(lbs); 0.002
|
| 060. |
0551152520
|
[1] |
PIN,SPLIT
|
0.0022(lbs); 0.001
|
| 070. |
0401150100
|
[1] |
WASHER,PLAIN
|
0.0044(lbs); 0.002
|
| 080. |
6C20018790
|
[1] |
GRIP,YELLOW 63
|
0.0880(lbs); 0.040
|
