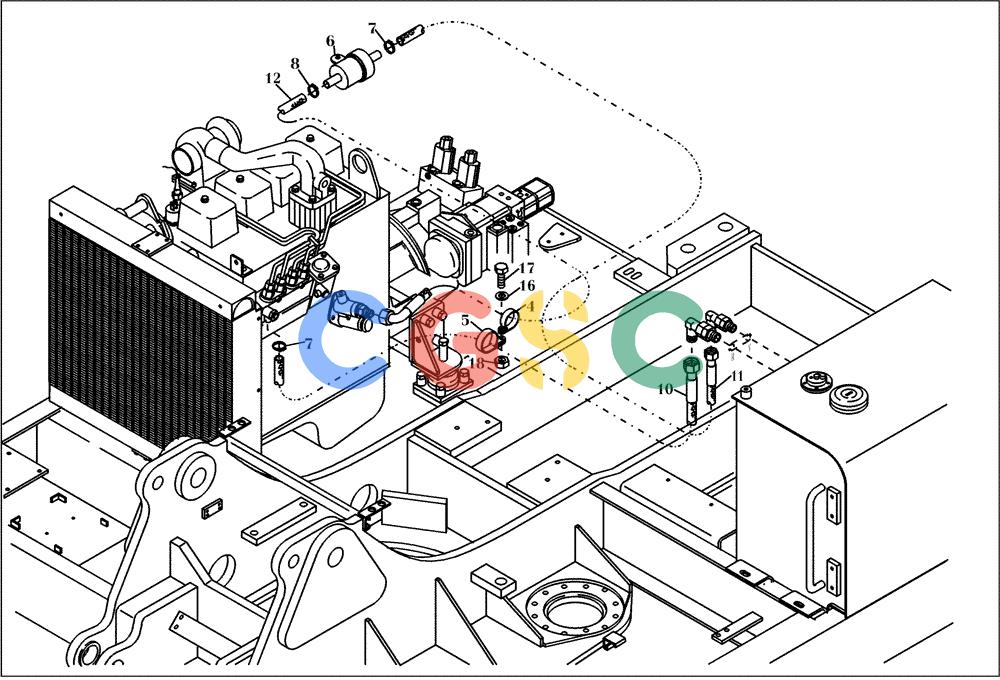

纽荷兰零件查询(EC130) - CRAWLER EXCAVATOR (4/99-) (13.300[001]) - FUEL SYSTEM (S/N 11701-UP) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
116 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 4. | 73175276 | [1] | CLIP | BER Superseded by part number: 70926049 |
| 5. | 73170687 | [1] | COLLAR | BERHOSE CLIP Superseded by part number: 750518 |
| 6. | 73179468 | [1] | CLAMP | BERPIPE CLAMP Superseded by part number: 8403517 |
| 7. | 73175352 | [2] | CLIP | BER Superseded by part number: 925895 |
| 8. | 73175254 | [1] | HOSE CLIP | BER Superseded by part number: 8414159 |
| 10. | 73179469 | [1] | HOSE | BER Superseded by part number: 3001321 |
| 11. | 73177403 | [1] | HOSE | BER Superseded by part number: 1294677 |
| 12. | 73177404 | [1] | HOSE | BER Superseded by part number: 1294678 |
| 16. | 73170160 | [2] | WASHER | BERDISK/WASHER Superseded by part number: 86625263 |
| 17. | 73170176 | [1] | BOLT,Hex, M8 x 25, 8.8 | BERHEXAGON BOLT Superseded by part number: 43127 |
| 18. | 73170161 | [2] | NUT,M8, Cl 8 | BERHEXAGON NUT Superseded by part number: 9706690 |
