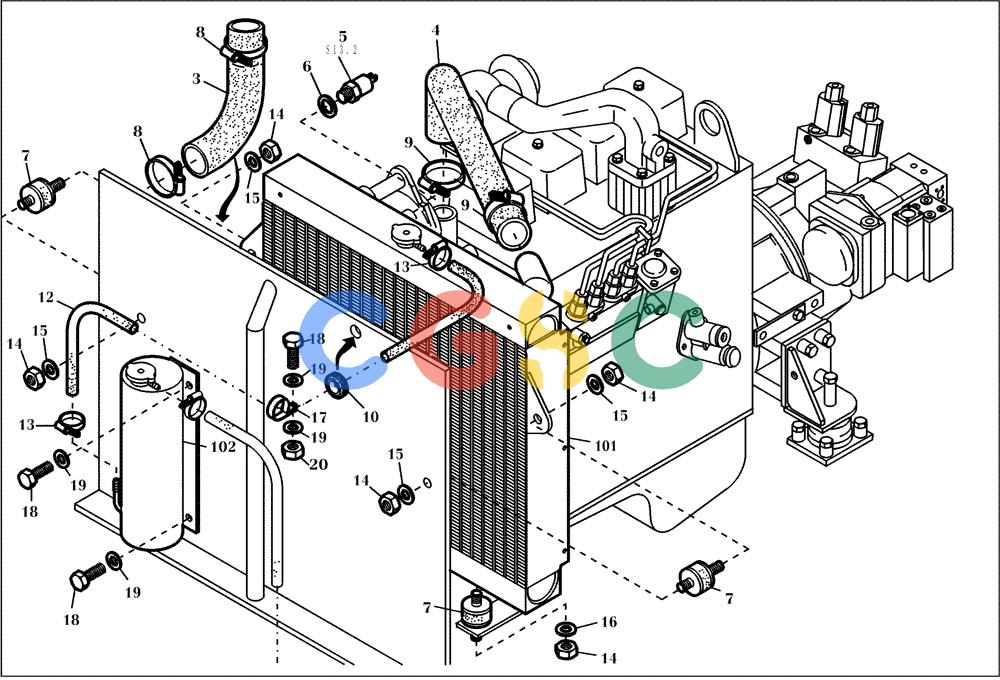

纽荷兰零件查询(EC130) - CRAWLER EXCAVATOR (4/99-) (15.100[002]) - COOLING SYSTEM WATER INSTALL.MATERIAL (S/N 11741-12021) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
156 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 3. | 73177751 | [1] | HOSE | BER Superseded by part number: 1293077 |
| 4. | 73182179 | [1] | HOSE,391.00 mm | BER391.00 mm Superseded by part number: 3007814 |
| 5. | 73170924 | [1] | SWITCH | BERLEVEL SWITCH Superseded by part number: 2479769 |
| 6. | 73170304 | [1] | O-RING | BERSEALING RING Superseded by part number: 746152 |
| 7. | 73176084 | [4] | BUMPER | BER Superseded by part number: 548 |
| 8. | 72183291 | [2] | CLIP,57.15mm - 79.38mm | BER Superseded by part number: L115548 |
| 9. | 73178306 | [2] | CLIP | BER Superseded by part number: 254026A1 |
| 10. | 73174708 | [1] | NOZZLE | BER/GROMMET Superseded by part number: 900021 |
| 12. | 73177755 | [1] | FLEXIBLE HOSE | BERHOSE, 1.05 METER Superseded by part number: 1960059 |
| 13. | 73175946 | [2] | HOSE CLIP | BER Superseded by part number: 773927 |
| 14. | 73170215 | [6] | NUT | BERHEXAGON NUT Superseded by part number: 11701721 |
| 15. | 73170213 | [4] | WASHER | BERDISK/WASHER Superseded by part number: 2975160 |
| 16. | 73176024 | [2] | WASHER | BERDISK/WASHER Superseded by part number: 73170897 |
| 17. | 73176293 | [1] | CLIP | BER Superseded by part number: 70925619 |
| 18. | 73170176 | [3] | BOLT,Hex, M8 x 25, 8.8 | BERHEXAGON BOLT Superseded by part number: 43127 |
| 19. | 73170160 | [5] | WASHER | BERDISK/WASHER Superseded by part number: 86625263 |
| 20. | 73170161 | [2] | NUT,M8, Cl 8 | BERHEXAGON NUT Superseded by part number: 9706690 |
| 101. | NS | [1] | NOT SERVICED | BASRADIATOR WATER SEE FIGURE 15.102/001 |
| 102. | 73177756 | [1] | CONTAINER | BER Superseded by part number: 1293080 |
