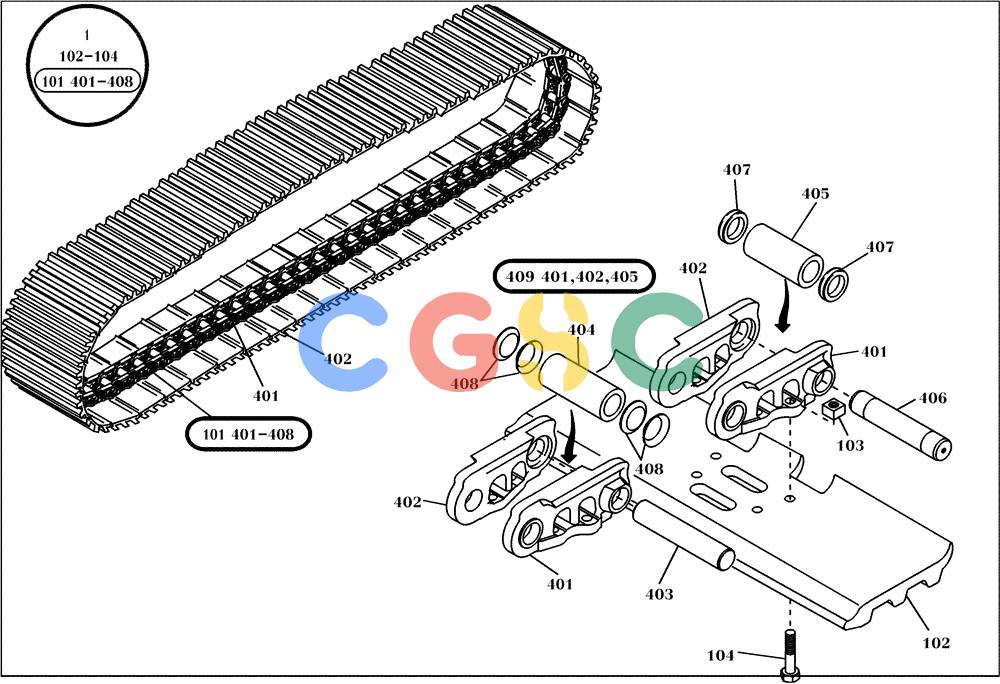

纽荷兰零件查询(EC130) - CRAWLER EXCAVATOR (4/99-) (06.102[001]) - DRIVING CHAIN 700/45 (OPTION) (S/N 11701-UP) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
205 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 73182151 | [1] | CHAIN | TORDRIVING CHAIN Superseded by part number: 73177003, 73177001, 73177518, 73177002 |
| 101. | 73177003 | [1] | CHAIN | NHDRIVING CHAIN |
| 102. | 73177518 | [45] | SPARE PART | BERTrack Shoe Baseplate -- 700mm (27-9/16in) Long Superseded by part number: 1778090 |
| 103. | 73177001 | [180] | NUT | BERSQUARE NUT Superseded by part number: 38240 |
| 104. | 73177002 | [180] | BOLT | BERHEXAGON BOLT Superseded by part number: 1930478 |
| 401. | 73177004 | [45] | TRACK LINK | NHCHAIN LINK Superseded by part number: 6910478 |
| 402. | 73177005 | [45] | TRACK LINK | NHCHAIN LINK |
| 403. | 73177006 | [44] | PIN | NHPIN Superseded by part number: 78500008 |
| 404. | 73177007 | [44] | BUSHING | NHBUSHING Superseded by part number: 78500009 |
| 405. | 73177008 | [1] | BUSHING | NHENDBUSHING Superseded by part number: 71474566 |
| 406. | 73177009 | [1] | PIN | NHENDPIN Superseded by part number: 152001228 |
| 407. | 73177010 | [2] | WASHER | NHEND PLATE |
| 408. | 73177011 | [176] | SEAL | NHGASKET Superseded by part number: 78500005 |
| 409. | 73177012 | [1] | SPARE PART | NHSEGMENT Superseded by part number: 73177005, 73177004, 73177008 |
