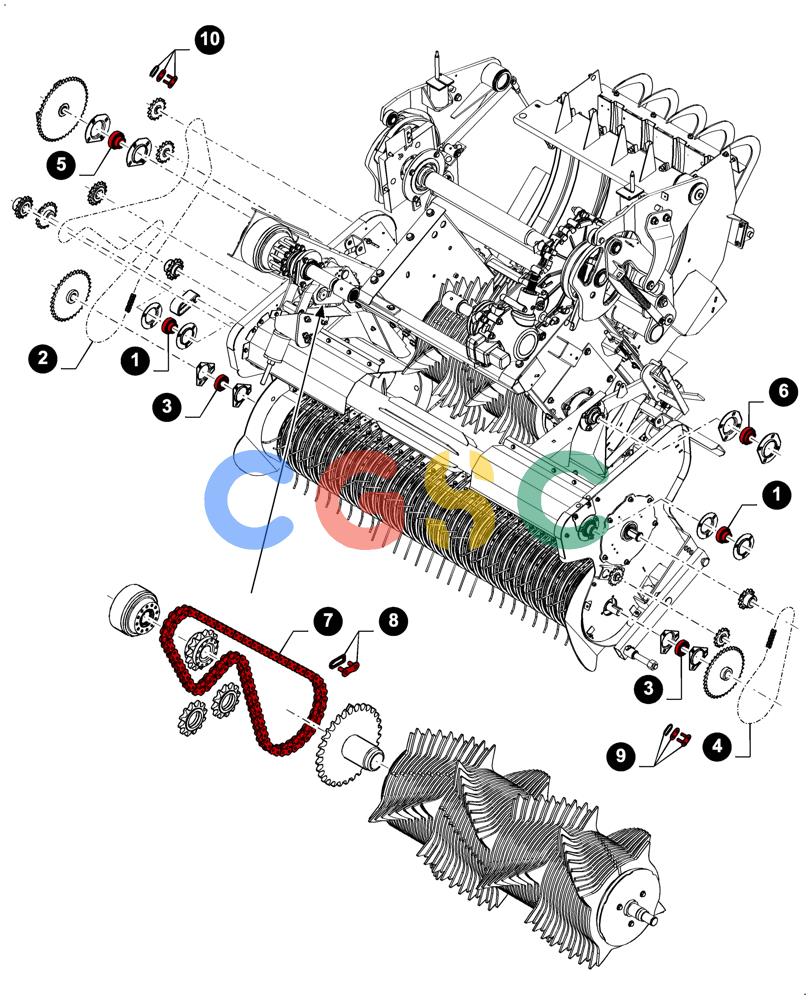

凯斯零件查询(LB424R) - BALER (9/12-) (05.100.04[09]) - MAINTENANCE PARTS, ROTOR CUTTER - ROTOR DRIVE Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
571 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
9837842
|
[2] |
BEARING,35mm ID x 72mm OD x 19mm W
|
ZED
|
| 2. |
84274373
|
[1] |
CHAIN
|
ZED
Incl 10, Serial Range: -C098 Superseded by part number: 47662980
|
| 2. |
47662980
|
[1] |
CHAIN
|
ZED
Incl 10, Serial Range: -F099130
|
| 2. |
47794660
|
[1] |
CHAIN
|
ZED
Incl 10, Start Serial: D131
|
| 2. |
84470828
|
[1] |
CHAIN
|
ZED
Cut-out clutch kit
|
| 3. |
84210631
|
[2] |
BEARING
|
ZED
|
| 4. |
84220227
|
[1] |
CHAIN
|
ZED
LH, Incl 9, Serial Range: -C098 Superseded by part number: 47663300
|
| 4. |
47663300
|
[1] |
CHAIN
|
ZED
LH, Incl 9, Start Serial: D099
|
| 5. |
552945
|
[1] |
BEARING ASSY,40 mm ID x 80 mm OD x 30.2 mm
|
NH
Superseded by part number: 412441
|
| 6. |
84240146
|
[1] |
BEARING,40mm ID x 80mm OD x 21mm W
|
PLO
|
| 7. |
84058691
|
[1] |
CHAIN,120HV, 82 Links x 38.1mm = 3124.2mm
|
ZED
Incl 8, Serial Range: -C136
|
| 7. |
47663745
|
[1] |
CHAIN
|
ZED
Incl 8, Start Serial: D137
|
| 8. |
84037875
|
[1] |
LINK,Chain
|
ZED
, Serial Range: -C136
|
| 8. |
47852999
|
[1] |
LINK
|
ZED
, Start Serial: D137
|
| 9. |
165590
|
[1] |
CONNECTING LINK
|
PA
Superseded by part number: 241-1316
|
| 10. |
47783767
|
[1] |
CONNECTING LINK
|
ZED
, Start Serial: D131
|
