纽荷兰零件查询(EC130) - CRAWLER EXCAVATOR (4/99-) (06.180[001]) - SUPPORT ROLLER (S/N 11701-UP) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
690 次

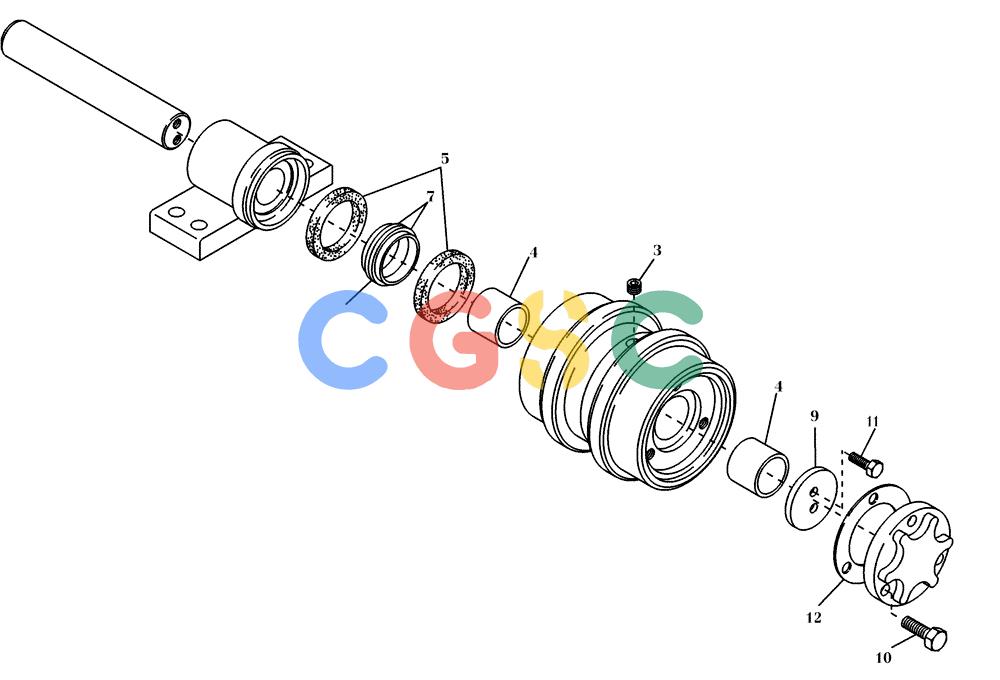

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 73177031 | [1] | SUPPORT | NHROLLER Superseded by part number: 71400947 |
| 3. | 73171624 | [1] | PLUG | NHSCREW PLUG Superseded by part number: 71400954 |
| 4. | 73177032 | [2] | BUSHING | NH Superseded by part number: 71400959 |
| 5. | 73171626 | [2] | GASKET | BER Superseded by part number: 71401225 |
| 6. | 73171627 | [1] | GASKET | BER Superseded by part number: 76011344 |
| 7. | 73171628 | [2] | GASKET | NH Superseded by part number: 71401224 |
| 9. | 73171629 | [1] | WASHER | NHDISK/WASHER Superseded by part number: 71400952 |
| 10. | 73171630 | [3] | SCREW | NH Superseded by part number: 71400950 |
| 11. | 73171631 | [2] | BOLT | NHHEXAGON BOLT Superseded by part number: 71400949 |
| 12. | 73171632 | [1] | SPACER | NH Superseded by part number: 71400951 |
