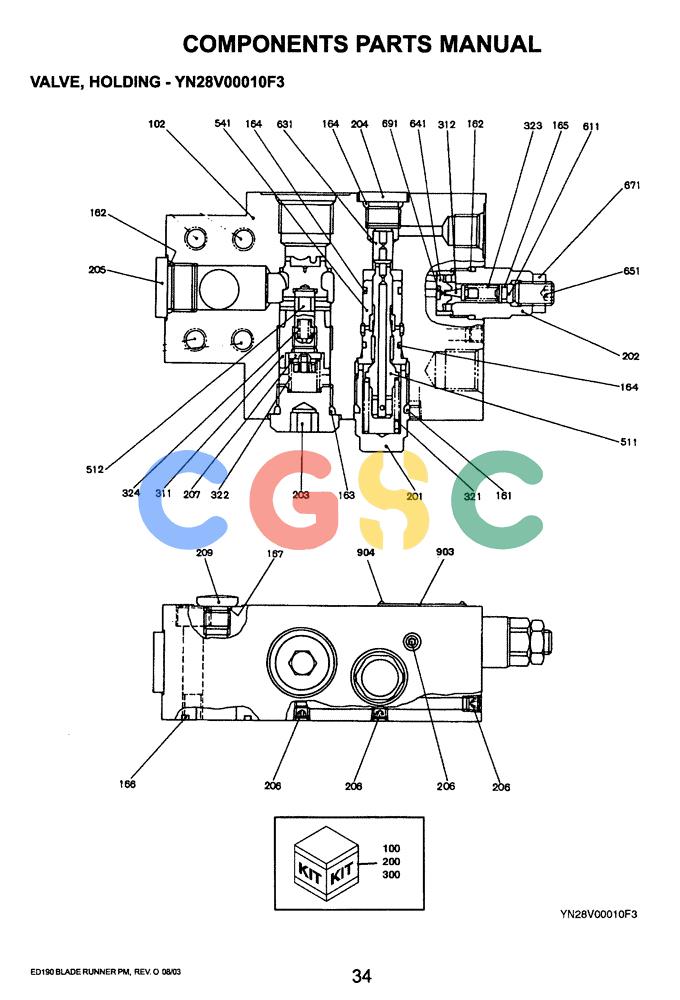

神钢零件查询(ED190LC-6E) - BLADE RUNNER EXCAVATOR/DOZER BTW YL03U0136 - YL03U0292 (1/05-12/06) (07-024) - VALVE, HOLDING (YN28V00010F3) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
1011 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN28V00010F3 | [1] | VALVE | KOBVALVE ASSY, HOLDING |
| 100. | YN28V00009R100 | [1] | REPAIR KIT | KOBREPAIR KIT (INCLUDES 311, 324, 512) |
| 102. | NSS | [1] | NOT SOLD SEPARAT | CONBODY |
| 161. | ZD12P02290 | [1] | O-RING | KOBO-RING |
| 162. | ZD12P02200 | [2] | O-RING | KOBID 21.80 ± 0.24 x OD 26mm, (ALSO PART OF KIT) |
| 163. | ZD12P02400 | [1] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 164. | ZD12P01600 | [3] | O-RING | KOBID 15.80 ± 0.20 x OD 20mm, (ALSO PART OF KIT) |
| 165. | ZD12P00600 | [1] | O-RING | KOBID 05.80 ± 0.15 x OD 09mm, (ALSO PART OF KIT) |
| 166. | ZD12G03000 | [1] | O-RING,29.40mm ID x 35.60mm OD x 3.10mm | KOBID 29.4 ± 0.29 x OD 35mm |
| 167. | ZD12P01100 | [1] | O-RING | KOBID 10.8mm x OD 13.2mm |
| 200. | YN28V00008R200 | [1] | REPAIR KIT | KOBREPAIR KIT (INCLUDES 164, 511, 541) |
| 201. | YM28V00001S201 | [1] | PLUG | KOBPLUG |
| 202. | 2436R683S201 | [1] | PLUG | KOBPLUG (ALSO PART OF KIT) |
| 203. | YN30V00001S556 | [1] | PLUG | KOBPLUG |
| 204. | 2436U1832S651 | [1] | PLUG | KOBM18x1.5mm |
| 205. | YM28V00001S205 | [1] | PLUG | KOBPLUG |
| 206. | 2441U722S490 | [4] | PLUG | KOB1/16" NPTF |
| 207. | NSS | [1] | NOT SOLD SEPARAT | CONPLUG |
| 209. | YW30V00001S157 | [1] | PLUG | KOBPLUG |
| 300. | YN28V00008R300 | [1] | REPAIR KIT | KOBREPAIR KIT (INCLUDES 162, 165, 202, 312, 323, 611, 641, 651, 671, 691) |
| 311. | NSS | [1] | NOT SOLD SEPARAT | CONPOPPET (PART OF KIT) |
| 312. | 2436R682S401 | [1] | POPPET | KOBPOPPET (ALSO PART OF KIT) |
| 321. | YM28V00001S321 | [1] | SPRING | KOBSPRING |
| 322. | YM28V00001S322 | [1] | SPRING | KOBSPRING |
| 323. | 2436R683S1 | [1] | SPRING | KOBSPRING (ALSO PART OF KIT) |
| 324. | NSS | [1] | NOT SOLD SEPARAT | CONSPRING (PART OF KIT) |
| 511. | NSS | [1] | NOT SOLD SEPARAT | CONSPOOL (PART OF KIT) |
| 512. | NSS | [1] | NOT SOLD SEPARAT | CONSPOOL (PART OF KIT) |
| 541. | NSS | [1] | NOT SOLD SEPARAT | CONBUSHING (PART OF KIT) |
| 611. | 2436R682S521 | [1] | SEAT | KOBSEAT, SPRING (ALSO PART OF KIT) |
| 631. | YM28V00001S631 | [1] | PISTON | KOBPISTON |
| 641. | NSS | [1] | NOT SOLD SEPARAT | CONSEAT (PART OF KIT) |
| 651. | 2436R683S651 | [1] | SET SCREW | KOBSETSCREW (ALSO PART OF KIT) |
| 671. | ZN18C12007 | [1] | NUT | KOBM12x1.75mm, (ALSO PART OF KIT) |
| 691. | NSS | [1] | NOT SOLD SEPARAT | CONFILTER (PART OF KIT) |
| 903. | NSS | [1] | NOT SOLD SEPARAT | CONNAME PLATE |
| 904. | NSS | [2] | NOT SOLD SEPARAT | CONPIN |
