纽荷兰零件查询(EC130) - CRAWLER EXCAVATOR (4/99-) (16.020[001]) - TRAVEL GEAR INSTALL.MATERIAL (S/N 11701-UP) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
576 次

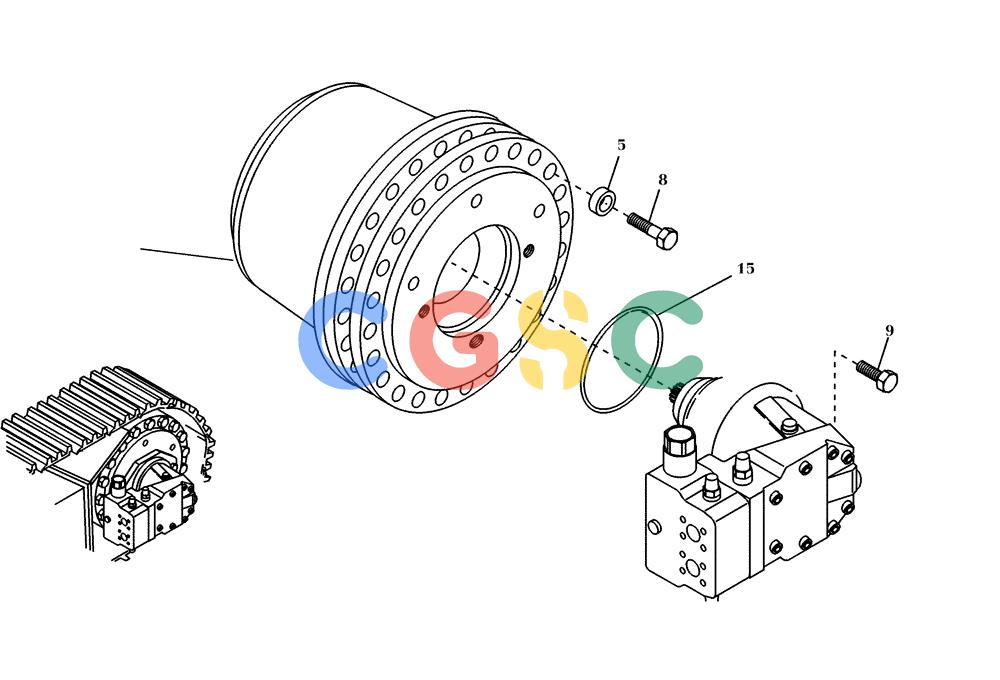

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | NS | [1] | NOT SERVICED | BASTRAVEL GEAR MOUNTING PARTS SEE FIGURE 16.021/001 |
| 5. | 73177033 | [18] | WASHER | BERDISK/WASHER Superseded by part number: 1902141 |
| 8. | 73172206 | [18] | BOLT,Hex, M16 x 45, 10.9 | BER Superseded by part number: 86508624 |
| 9. | 73177034 | [2] | BOLT,Hex, M16 x 55, 8.8, Full Thd | BER Superseded by part number: 385923 |
| 15. | 73177035 | [1] | O-RING | NH Superseded by part number: 73171704 |
