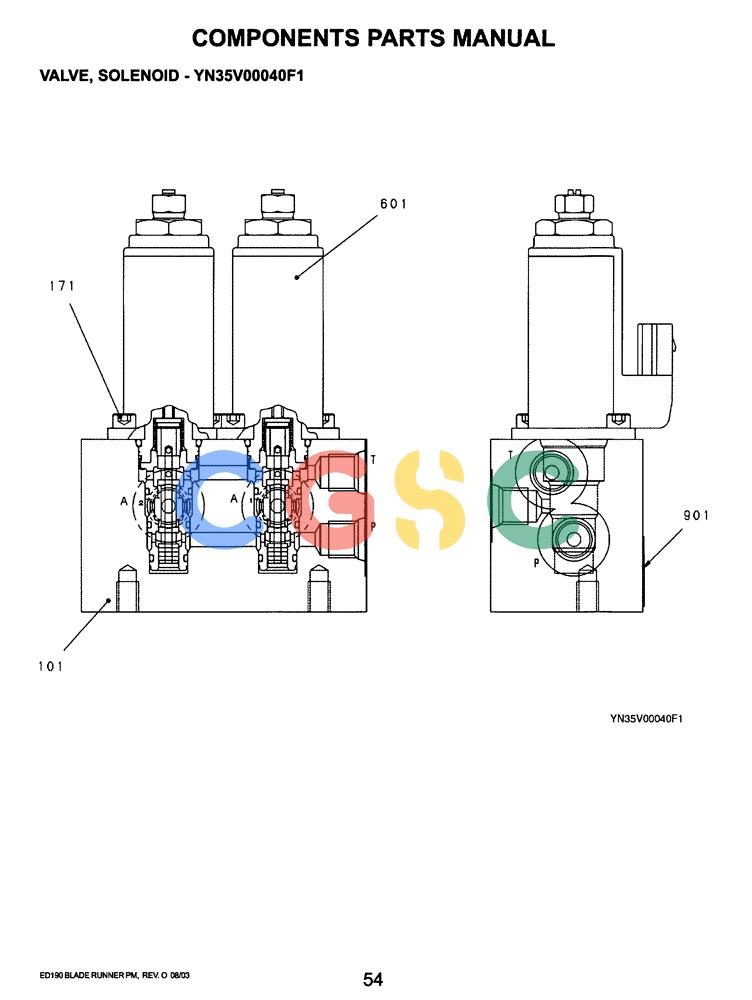

神钢零件查询(ED190LC-6E) - BLADE RUNNER EXCAVATOR/DOZER BTW YL03U0136 - YL03U0292 (1/05-12/06) (07-029) - VALVE, SOLENOID (YN35V00040F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
364 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN35V00040F1 | [1] | VALVE | KOBAssembly, Solenoid Valve (Independent Travel) |
| 101. | YY35V00001S101 | [1] | BODY | KOBBODY |
| 171. | YX35V00002S171 | [4] | SCREW,Hex Socket Head, M5 x 12mm | KOBM05x0.8x12mm Superseded by part number: ZS23C05012 |
| 601. | YB35V00005F1 | [2] | SOLENOID VALVE | KOBVALVE, SOLENOID, Remarks: SEE CPM Superseded by part number: YN35V00048F1 |
| 901. | YN35V00040S901 | [1] | PLATE | KOBNAME PLATE |
