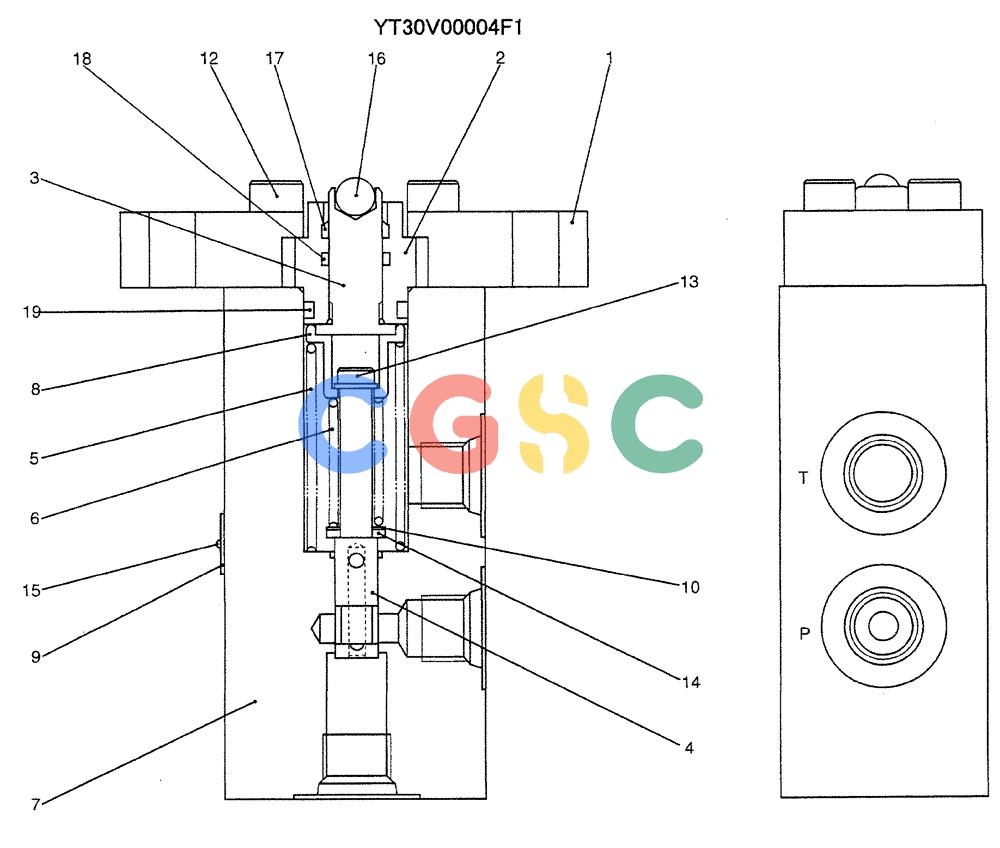

神钢零件查询(ED190LC-6E) - BLADE RUNNER EXCAVATOR/DOZER BTW YL03U0136 - YL03U0292 (1/05-12/06) (07-033) - VALVE ASSY, PILOT (YT30V00004F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
737 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT30V00004F1 | [1] | PILOT VALVE | KOBAssembly |
| 1. | 2436U1200S11 | [1] | COVER | KOB |
| 2. | 2436U1142S2 | [1] | SOCKET | KOB |
| 3. | NSS | [1] | NOT SOLD SEPARAT | CONPUSHER |
| 4. | NSS | [1] | NOT SOLD SEPARAT | CONSPOOL |
| 5. | YR30V00004S012 | [1] | SPRING | KOB |
| 6. | YR30V00013S009 | [1] | SPRING | KOB |
| 7. | NSS | [1] | NOT SOLD SEPARAT | CONHOUSING |
| 8. | YT30V00004S008 | [1] | SLEEVE | KOB |
| 9. | NSS | [1] | NOT SOLD SEPARAT | CONNAME PLATE |
| 10. | YR30V00013S012 | [1] | SHIM | KOB(0.1) |
| 12. | 2436U1200S16 | [4] | CAPSCREW | KOBSCREW |
| 13. | 2436U1354S15 | [1] | BOLT | KOB |
| 14. | 2436U1354S16 | [1] | WASHER | KOB |
| 15. | EZ30V00001S037 | [2] | SCREW | KOB |
| 16. | NSS | [1] | NOT SOLD SEPARAT | CONBALL |
| 17. | 2436U1142S25 | [1] | SCRAPER | KOBSEAL, DUST |
| 18. | ZD11P01000 | [1] | O-RING | KOBID 9.8 ± 0.17 x OD 13.6mm |
| 19. | ZD11P01600 | [1] | O-RING | KOBID 15.80 ± 0.20 x OD 20.6mm |
| . . | 2436U1200R110 | [1] | PUSH ROD | KOB(CONSISTS OF REF. 3X1, 16X1) |
| . . | YT30V00004R100 | [1] | REPAIR KIT | KOB(CONSISTS OF REF. 4X1, 7X1) |
