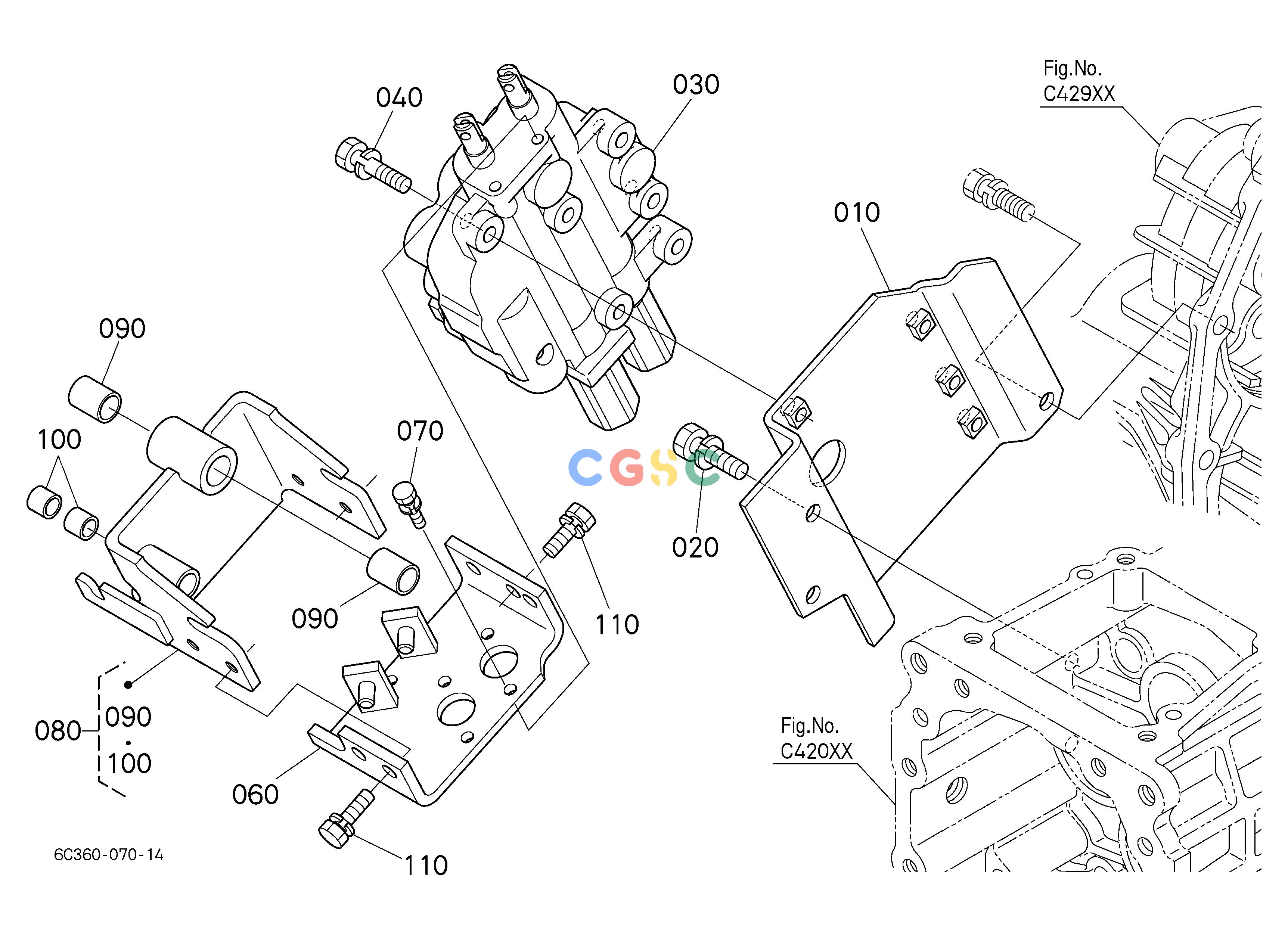

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C30038113
|
[1] |
BASE,LOADER VALVE
|
2.7610(lbs); 1.255
|
| 020. |
0112351025
|
[2] |
BOLT,SEMS
|
0.0440(lbs); 0.020
|
| 030. |
YW54500100
|
[1] |
ASSY VALVE,CONTROL
|
10.7800(lbs); 4.900
|
| 030. |
YW54500102
|
[1] |
ASSY VALVE,CONTROL
|
10.7800(lbs); 4.900
|
| 040. |
0112350835
|
[4] |
BOLT,SEMS
|
0.0440(lbs); 0.020
|
| 060. |
6C30038126
|
[1] |
STAY,LOADER LEVER
|
1.3420(lbs); 0.610
|
| 070. |
0102350616
|
[4] |
BOLT,SEMS
|
0.0132(lbs); 0.006
|
| 080. |
6C30038195
|
[1] |
ASSY BRACKET,LEVER
|
2.2374(lbs); 1.017
|
| 080. |
6C30038197
|
[1] |
ASSY BRACKET,LEVER
|
2.2374(lbs); 1.017
|
| 090. |
0851101620
|
[2] |
BUSH
|
0.0176(lbs); 0.008
|
| 100. |
0851101212
|
[2] |
BUSH
|
0.0110(lbs); 0.005
|
| 110. |
0112350820
|
[4] |
BOLT,SEMS
|
0.0242(lbs); 0.011
|
