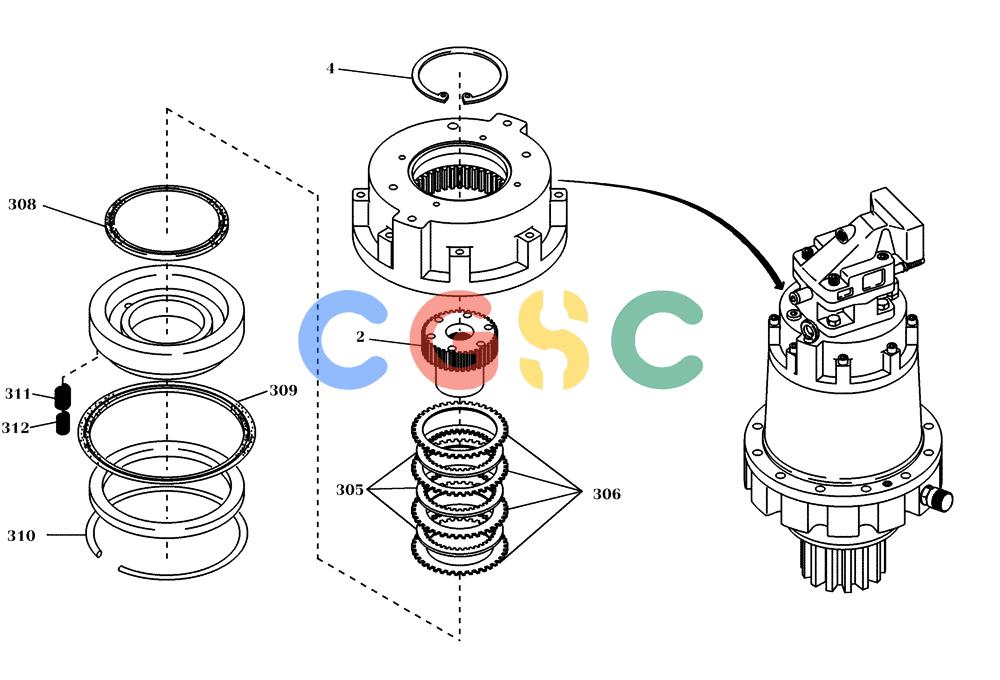

纽荷兰零件查询(EC130) - CRAWLER EXCAVATOR (4/99-) (19.402[001]) - SWING BRAKE (S/N 11701-UP) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
454 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 73177201 | [1] | BRAKE | BER Superseded by part number: 2456963 |
| 2. | 73177202 | [1] | SPARE PART | BERINTERNAL CASING Superseded by part number: 2456962 |
| 4. | 73170575 | [1] | CIRCLIP | BER Superseded by part number: 11062676 |
| 305. | 73172246 | [3] | DISC | BERINTERNAL DISK Superseded by part number: 1444871 |
| 306. | 73172245 | [4] | DISC | BEREXTERNAL DISK Superseded by part number: 1444870 |
| 308. | 73175300 | [1] | GASKET | BER Superseded by part number: 1475955 |
| 309. | 73175301 | [1] | GASKET | BER Superseded by part number: 1475956 |
| 310. | 73175302 | [1] | SNAP RING | BER Superseded by part number: 1475957 |
| 311. | 73175303 | [30] | SPRING | BER Superseded by part number: 1475958 |
| 312. | 73175304 | [30] | SPRING | BER Superseded by part number: 2894119 |
