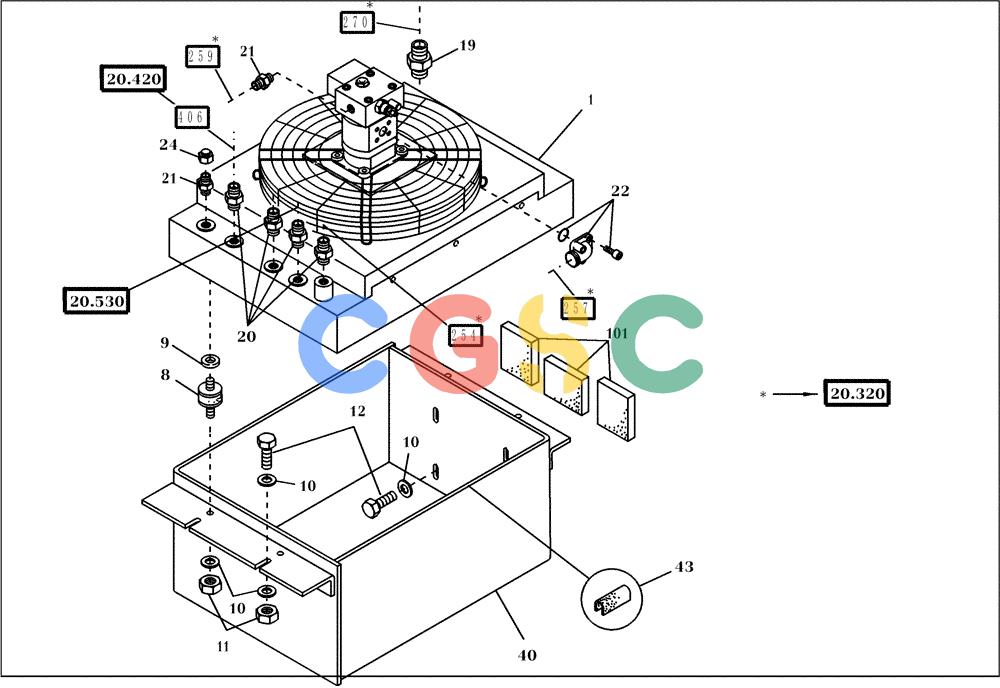

纽荷兰零件查询(EC130) - CRAWLER EXCAVATOR (4/99-) (20.290[001]) - HYDRAULIC SYSTEM OIL COOLER (S/N 11701-UP) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
809 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | NS | [1] | NOT SERVICED | BASRADIATOR HYDRAULIC OIL SEE FIGURE 15.012/001 |
| 8. | 73177406 | [4] | BUMPER | BER Superseded by part number: 1768527 |
| 9. | 73170715 | [4] | WASHER | NHDISK/WASHER Superseded by part number: 84089872 |
| 10. | 73175778 | [12] | WASHER | BERDISK/WASHER Superseded by part number: 530811 |
| 11. | 73170215 | [6] | NUT | BERHEXAGON NUT Superseded by part number: 11701721 |
| 12. | 73170210 | [8] | BOLT,Hex, M10 x 25, 8.8, Full Thd | BERHEXAGON BOLT Superseded by part number: 43139 |
| 19. | 73171657 | [1] | HYD CONNECTOR | BERSOCKET Superseded by part number: 73171658 |
| 20. | 73170298 | [4] | HYD CONNECTOR | BERSOCKET Superseded by part number: 73170299 |
| 21. | 73171890 | [2] | SOCKET | BER Superseded by part number: 1791011 |
| 22. | 73175941 | [1] | SOCKET | BERSCREWING Superseded by part number: 2247765 |
| 24. | 73177407 | [1] | HYD CONNECTOR | BERNIPPLE Superseded by part number: 1148454 |
| 40. | 73179477 | [1] | BOX | BER Superseded by part number: 3001652 |
| 43. | 73170973 | [1] | PROTECTION | NHEDGE PROTECTION, 4.39 METER Superseded by part number: 73170974 |
| 101. | 73181892 | [3] | SEAL | BERINSULATION Superseded by part number: 3007401 |
