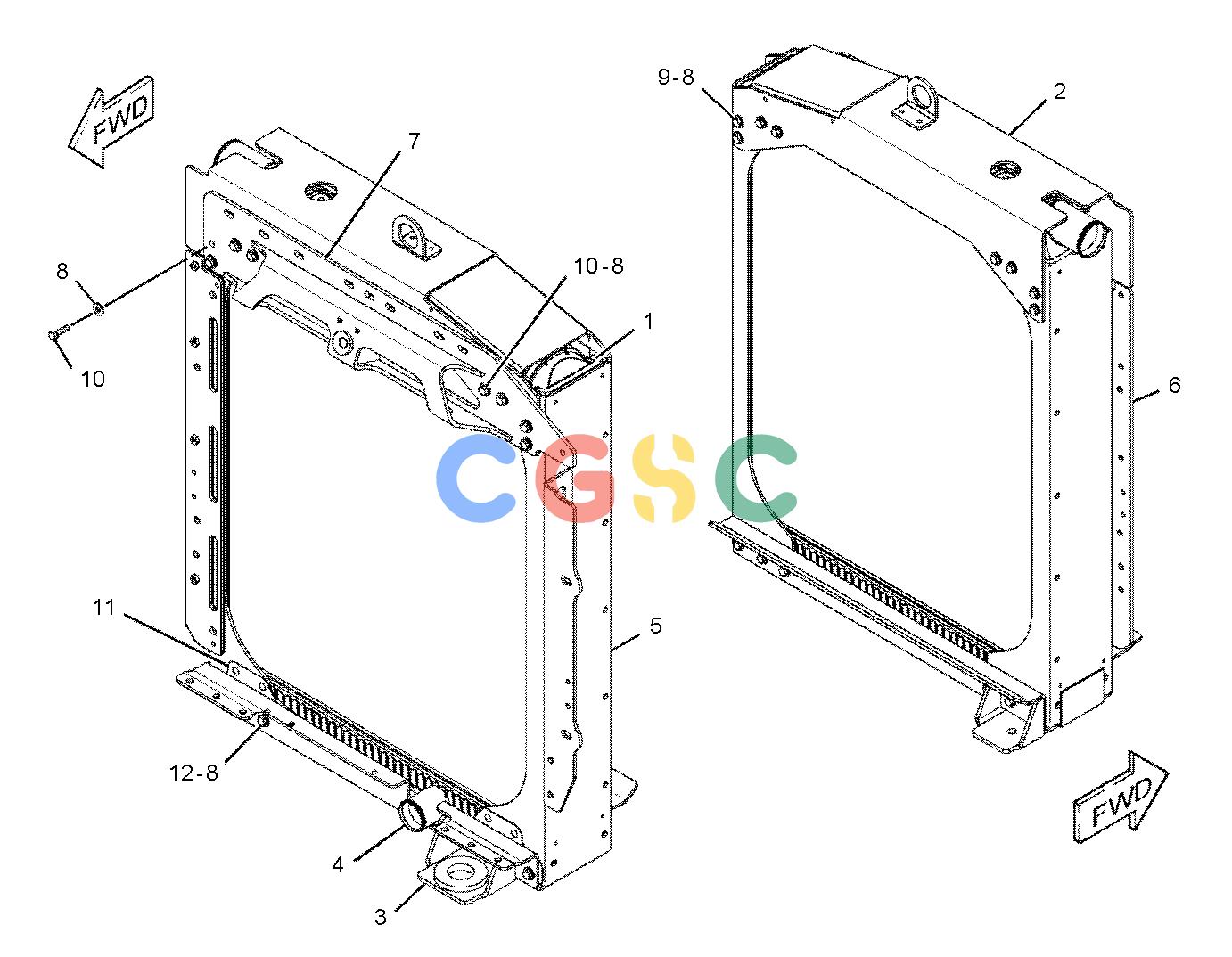

卡特零件查询（730） 251-5985: RADIATOR GP
广数供应链运营团队, 15 02月, 2025，浏览：
787 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 238-1111J | [4] | MOUNT-ISOLATION | |
| 2. | 244-5792 | [1] | SUPPORT AS(TOP) | |
| 3. | 244-5802 | [1] | SUPPORT AS(BOTTOM) | |
| 4. | 247-3907 | [1] | CORE AS-RADIATOR | |
| 5. | 251-5981 | [1] | FRAME AS(LH) | |
| 6. | 251-5984 | [1] | FRAME AS(RH) | |
| 7. | 252-4328 | [1] | MOUNT AS | |
| 8. | 7X-7729 | [28] | WASHER(11X25X3-MM THK) | |
| 9. | 8T-4136M | [8] | BOLT(M10X1.5X25-MM) | |
| 10. | 8T-4196M | [8] | BOLT(M10X1.5X35-MM) | |
| 11. | 270-5131 | [2] | SHIM(1-MM THK) | |
| 12. | 8T-4195M | [12] | BOLT(M10X1.5X30-MM) | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 262-5740J | [1] | KIT-SEAL | |
| | | | (INCLUDES SEALS & MOUNT) |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | M | | METRIC PART |
