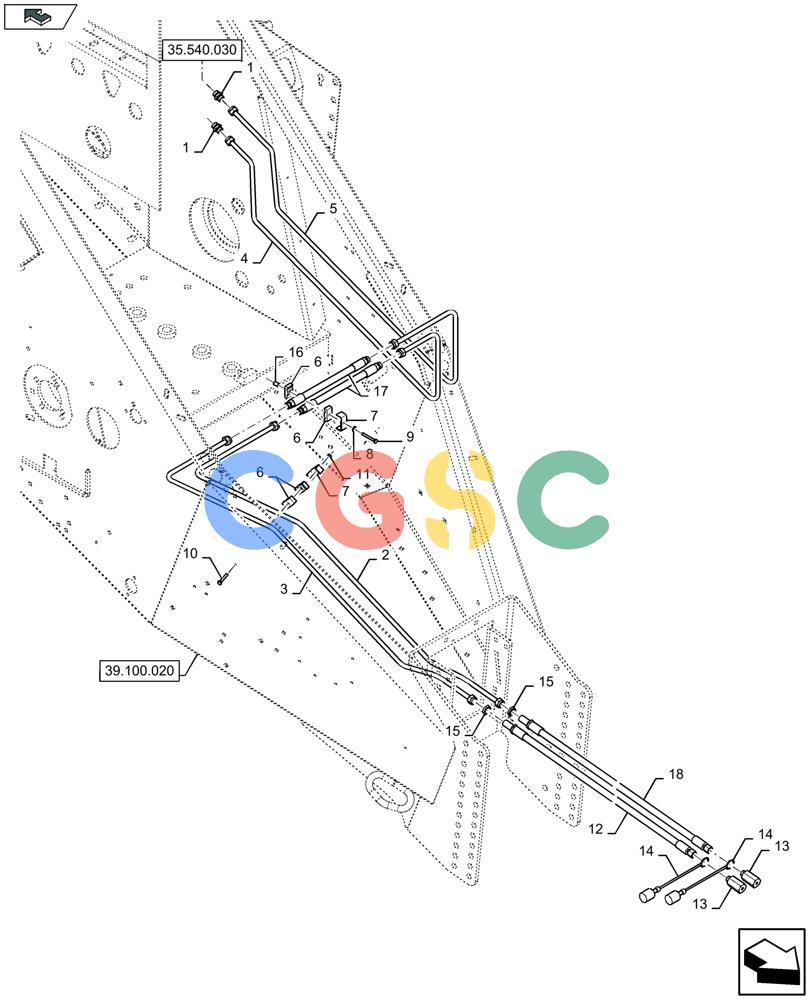

凯斯零件查询(LB424R) - BALER (9/12-) (35.580.010) - BALE EJECTOR, HYDRAULIC , FRONT Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
456 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
150018
|
[2] |
HYD CONNECTOR,M18 x 1.5 x 28
|
ZED
|
| 2. |
47377993
|
[1] |
TUBE
|
ZED
|
| 2. |
84412311
|
[1] |
TUBE
|
ZED
|
| 3. |
47377991
|
[1] |
TUBE
|
ZED
|
| 3. |
84412309
|
[1] |
TUBE
|
ZED
|
| 4. |
47377997
|
[1] |
TUBE
|
ZED
|
| 4. |
84412315
|
[1] |
TUBE
|
ZED
|
| 5. |
47377995
|
[1] |
TUBE
|
ZED
|
| 5. |
84412313
|
[1] |
TUBE
|
ZED
|
| 6. |
430357
|
[6] |
CLAMP
|
DUB
|
| 7. |
431941
|
[3] |
SUPPORT
|
DUB
|
| 8. |
322357
|
[2] |
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
|
NH
|
| 9. |
120056
|
[2] |
BOLT,M6 x 1.0 x 54.15mm, Cl 8.8
|
NH
|
| 10. |
43118
|
[1] |
BOLT,Hex, M6 x 1.0 x 40mm, Cl 8.8
|
NH
Superseded by part number: 120102
|
| 11. |
412152
|
[1] |
NUT,M6 x 1, Cl 8.8
|
ZED
|
| 12. |
84281108
|
[1] |
HYDRAULIC HOSE,9.53mm ID x 2500mm L, SAE 100R16
|
ZED
|
| 12. |
48021938
|
[1] |
HYDRAULIC HOSE
|
ZED
BLACK
|
| 13. |
84819661
|
[2] |
QUICK MALE COUPLING
|
ZED
|
| 14. |
84819669
|
[2] |
DUST CAP
|
ZED
|
| 15. |
87494091
|
[1] |
NUT
|
ZED
|
| 16. |
87716662
|
[2] |
NUT
|
ZED
|
| 17. |
47375516
|
[2] |
HOSE,9.5mm ID x 311mm L, SAE 100R16
|
ZED
|
| 17. |
47375517
|
[2] |
HOSE,9.5mm ID x 595mm L, SAE 100R16
|
ZED
|
| 18. |
48021937
|
[1] |
HYDRAULIC HOSE
|
ZED
WHITE
|
