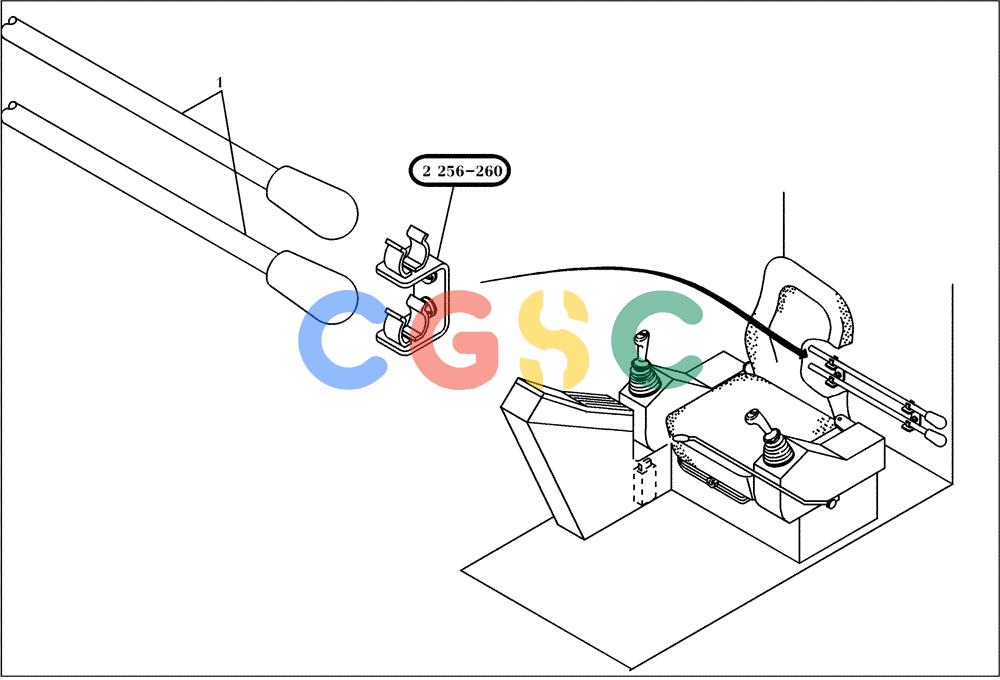

纽荷兰零件查询(EC130) - CRAWLER EXCAVATOR (4/99-) (22.520[001]) - RODS TREADLE VALVE (S/N 11701-UP) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
364 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 73170957 | [2] | ROD | BER Superseded by part number: 2455720 |
| 2. | 73170960 | [1] | BRACKET | NHMOUNTING Superseded by part number: 73170961, 73170834, 73170963, 73170962, 73170964 |
| 256. | 73170961 | [2] | BRACKET | BER Superseded by part number: 1283704 |
| 257. | 73170962 | [4] | SCREW,Cross Pan Hd, M6 x 16 | BERCLAMPING SCREW Superseded by part number: 2479084 |
| 258. | 73170963 | [4] | NUT,M5, Cl 8 | BERHEXAGON NUT Superseded by part number: 73170884 |
| 259. | 73170834 | [4] | WASHER | BERDISK/WASHER Superseded by part number: 84089815 |
| 260. | 73170964 | [4] | CLIP | BER Superseded by part number: 1725278 |
