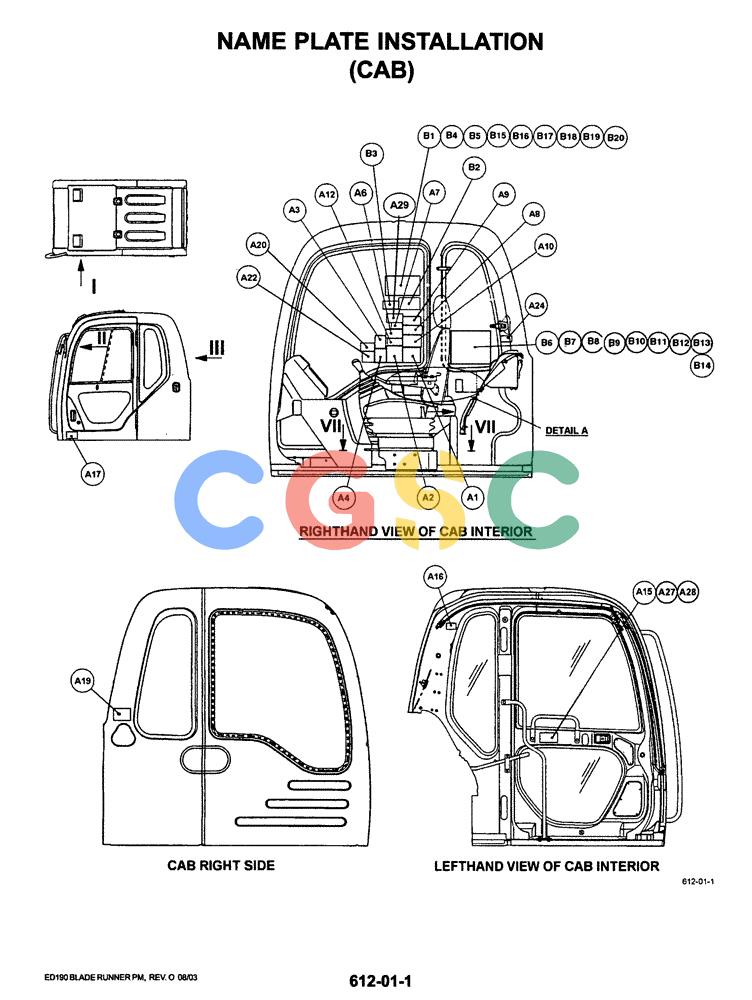

| . . | YN22T00129F1 | [1] | LABEL | KOBNAME PLATE INSTAL STD, QTY-F1: F1, QTY-F2: -, QTY-F7: - |
| . . | YN22T00129F2 | [1] | PLATE | KOBNAME PLATE INSTAL OPT N&B, QTY-F1: -, QTY-F2: F2, QTY-F7: - |
| . . | YN22T00129F7 | [1] | PLATE | KOBNAME PLATE INSTAL KPSS, QTY-F1: -, QTY-F2: -, QTY-F7: F7 |
| . . | YN22T00129F9 | [1] | NAME PLATE INSTAL OPT KPSS, QTY-F1: -, QTY-F2: -, QTY-F7: - | |
| A1. | YN20T01006P1 | [1] | LABEL | KOBDecal, Danger, Contact with electrical power lines will result in …, QTY-F1: 1, QTY-F2: -, QTY-F7: 1 |
| A2. | YN20T01016P1 | [1] | WARNING DECAL | KOBDecal, Warning, Read and understand operator manual before …, QTY-F1: 1, QTY-F2: -, QTY-F7: 1 |
| A3. | YN20T01048P1 | [1] | LABEL | KOBDecal, Warning, Automatic two speed travel system changes travel speed …, QTY-F1: 1, QTY-F2: -, QTY-F7: 1 |
| A4. | 2432T6110 | [1] | LABEL | KOBDecal, Warning, Extreme high pressure in truck adjustment cylinder …, QTY-F1: 1, QTY-F2: -, QTY-F7: 1 |
| A5. | YN20T01004P1 | [1] | LABEL | KOBDecal, Warning, Releasing power boost switch while lifting a load can cause …, QTY-F1: 1, QTY-F2: -, QTY-F7: 1 |
| A6. | YN20T01340P1 | [1] | LABEL | KOBDecal, Warning -- Turning off heavy lift switch …, QTY-F1: 1, QTY-F2: -, QTY-F7: 1 |
| A7. | 2432T6457 | [1] | WARNING DECAL | KOBDecal, Warning, California proposition 65, Diesel …, QTY-F1: 1, QTY-F2: -, QTY-F7: 1 |
| A8. | 2432T6109 | [1] | LABEL | KOBDecal, Warning, Do not install any object on the handrail. This can cause …, QTY-F1: 1, QTY-F2: -, QTY-F7: 1 |
| A9. | YN20T01263P1 | [1] | LABEL | KOBDecal, Caution, - Slow or unexpected movement…, QTY-F1: 1, QTY-F2: -, QTY-F7: 1 |
| A10. | 2432P3380 | [1] | LABEL | KOBDecal, Caution, Bucket can contact and damage cab when mahine …, QTY-F1: 1, QTY-F2: -, QTY-F7: 1 Superseded by part number: YN20T01013P1 |
| A11. | YN20T01415P1 | [1] | LABEL | KOBDecal, Caution, The KPSS work mode release switch …, QTY-F1: 1, QTY-F2: -, QTY-F7: 1 |
| A12. | YN20T01007P1 | [1] | LABEL | KOBDecal, Notice, Stopping engine without allowing it to cool …, QTY-F1: 1, QTY-F2: -, QTY-F7: 1 |
| A13. | PH20T01018P1 | [1] | WARNING DECAL | KOBDecal, Hammer Hand and Man running, QTY-F1: 2, QTY-F2: -, QTY-F7: 2 |
| A14. | YN20T01341P1 | [1] | LABEL | KOBDecal, Control lockout, QTY-F1: 1, QTY-F2: -, QTY-F7: 1 |
| A15. | YT20T01072P1 | [1] | LABEL | KOBDecal, Control location and positions, QTY-F1: 1, QTY-F2: -, QTY-F7: 1 |
| A16. | YN20T01407P1 | [1] | LABEL | KOBDecal, Kobelco Construction Machine Co. LTD., QTY-F1: 1, QTY-F2: -, QTY-F7: 1 |
| A17. | YN20T01058P1 | [1] | PLATE | KOBDecal, ITCS, QTY-F1: 1, QTY-F2: -, QTY-F7: 1 |
| A18. | YN20T01416P1 | [1] | CAUTION DECAL | KOBDecal, Caution, Falling front window can cause injury (no picture), QTY-F1: 1, QTY-F2: -, QTY-F7: 1 |
| A19. | YY20T01039P1 | [1] | LABEL | KOBDecal, Caution, Procedure to change selector valve…, QTY-F1: -, QTY-F2: 1, QTY-F7: - |
| A20. | PY20T01062P1 | [1] | CAUTION DECAL | KOBDecal, Caution - Attachment operation by foot pedal. Always check the …, QTY-F1: -, QTY-F2: 1, QTY-F7: - |
| A21. | YT20T01054P1 | [1] | LABEL | KOBDecal, Caution - Do not set this switch to nibbler combined flow operation …, QTY-F1: -, QTY-F2: 1, QTY-F7: - |
| A22. | YN20T01414P1 | [1] | LABEL | KOBDecal, Caution - Maintenance - (when using nibbler or breaker) …, QTY-F1: -, QTY-F2: 1, QTY-F7: - |
| A24. | YN20T01339P1 | [1] | LABEL | KOBDecal, Caution -- Be careful not to pinch your hand(s) when operating the lever., QTY-F1: 2, QTY-F2: -, QTY-F7: 2 |
| A25. | PY20T01073P1 | [1] | WARNING DECAL | KOBDecal, Warning, Machine may move suddenly and cause serious …, QTY-F1: 1, QTY-F2: -, QTY-F7: 1 |
| A27. | YN20T01475P1 | [1] | LABEL | KOBHolder, QTY-F1: -, QTY-F2: -, QTY-F7: - |
| A28. | YN20T01476P1 | [1] | LABEL | KOBDecal, Control location and positions, QTY-F1: -, QTY-F2: -, QTY-F7: - |
| A29. | YN20T01039P1 | [1] | WARNING DECAL | KOBDecal, Warning, This machine equipped with a rotary multi-control valve which allows changing of…, QTY-F1: -, QTY-F2: -, QTY-F7: - |
| A31. | YN20T01517P1 | [1] | LABEL | KOBLABEL, QTY-F1: 1, QTY-F2: -, QTY-F7: - |
| . . | YM22TU0002F1 | [1] | NAME PLATE INSTAL 600mm T.G. TRACK 3100mm ARM (STD ARM), QTY-F1: F1, QTY-F2: -, QTY-F3: -, QTY-F4: -, QTY-F5: -, QTY-F6: -, QTY-F7: -, QTY-F8: - | |
| . . | YM22TU0002F2 | [1] | NAME PLATE INSTAL 600mm D.G. TRACK 3100mm ARM (STD ARM), QTY-F1: -, QTY-F2: F2, QTY-F3: -, QTY-F4: -, QTY-F5: -, QTY-F6: -, QTY-F7: -, QTY-F8: - | |
| . . | YM22TU0002F3 | [1] | NAME PLATE INSTAL 800mm T.G. TRACK 3100mm ARM (STD ARM), QTY-F1: -, QTY-F2: -, QTY-F3: F3, QTY-F4: -, QTY-F5: -, QTY-F6: -, QTY-F7: -, QTY-F8: - | |
| . . | YM22TU0002F4 | [1] | NAME PLATE INSTAL 600mm D.G. TRACK 2600mm ARM (SHORT ARM), QTY-F1: -, QTY-F2: -, QTY-F3: -, QTY-F4: F4, QTY-F5: -, QTY-F6: -, QTY-F7: -, QTY-F8: - | |
| . . | YM22TU0002F5 | [1] | NAME PLATE INSTAL 600mm T.G. TRACK 2600mm ARM (SHORT ARM), QTY-F1: -, QTY-F2: -, QTY-F3: -, QTY-F4: -, QTY-F5: F5, QTY-F6: -, QTY-F7: -, QTY-F8: - | |
| . . | YM22TU0002F6 | [1] | NAME PLATE INSTAL 800mm T.G. TRACK 2600mm ARM (SHORT ARM), QTY-F1: -, QTY-F2: -, QTY-F3: -, QTY-F4: -, QTY-F5: -, QTY-F6: F6, QTY-F7: -, QTY-F8: - | |
| . . | YM22TU0002F7 | [1] | NAME PLATE INSTAL 600mm D.G. TRACK 3100MM ARM (HD ARM), QTY-F1: -, QTY-F2: -, QTY-F3: -, QTY-F4: -, QTY-F5: -, QTY-F6: -, QTY-F7: F7, QTY-F8: - | |
| . . | YM22TU0002F8 | [1] | NAME PLATE INSTAL 600mm T.G. TRACK 3100mm ARM (HD ARM), QTY-F1: -, QTY-F2: -, QTY-F3: -, QTY-F4: -, QTY-F5: -, QTY-F6: -, QTY-F7: -, QTY-F8: F8 | |
| . . | YM22TU0002F9 | [1] | NAME PLATE INSTAL 800mm T.G. TRACK 3100mm ARM (HD ARM), QTY-F1: -, QTY-F2: -, QTY-F3: -, QTY-F4: -, QTY-F5: -, QTY-F6: -, QTY-F7: -, QTY-F8: - | |
| B1. | YM22TU1004P1 | [1] | LABEL | KOBLABEL, QTY-F1: 1, QTY-F2: -, QTY-F3: -, QTY-F4: -, QTY-F5: -, QTY-F6: -, QTY-F7: -, QTY-F8: - |
| B2. | 2432N3709 | [1] | LABEL | KOBDecal, Dozer Blade Controls, QTY-F1: 1, QTY-F2: 1, QTY-F3: 1, QTY-F4: 1, QTY-F5: 1, QTY-F6: 1, QTY-F7: 1, QTY-F8: 1 |
| B3. | 2432P4143 | [1] | LABEL | KOBDecal, Warning -- Dozer wings should be folded for transport only. Do not …, QTY-F1: 1, QTY-F2: 1, QTY-F3: 1, QTY-F4: 1, QTY-F5: 1, QTY-F6: 1, QTY-F7: 1, QTY-F8: 1 |
| B4. | YM22TU1008P1 | [1] | LABEL | KOBLABEL, QTY-F1: -, QTY-F2: 1, QTY-F3: -, QTY-F4: -, QTY-F5: -, QTY-F6: -, QTY-F7: -, QTY-F8: - |
| B5. | YM22TU1010P1 | [1] | LABEL | KOBLABEL, QTY-F1: -, QTY-F2: -, QTY-F3: 1, QTY-F4: -, QTY-F5: -, QTY-F6: -, QTY-F7: -, QTY-F8: - |
| B6. | YM22TU1007P1 | [1] | LABEL | KOBLABEL, QTY-F1: 1, QTY-F2: -, QTY-F3: -, QTY-F4: -, QTY-F5: -, QTY-F6: -, QTY-F7: -, QTY-F8: - |
| B7. | YM22TU1009P1 | [1] | LABEL | KOBLABEL, QTY-F1: -, QTY-F2: 1, QTY-F3: -, QTY-F4: -, QTY-F5: -, QTY-F6: -, QTY-F7: -, QTY-F8: - |
| B8. | YM22TU1011P1 | [1] | LABEL | KOBLABEL, QTY-F1: -, QTY-F2: -, QTY-F3: 1, QTY-F4: -, QTY-F5: -, QTY-F6: -, QTY-F7: -, QTY-F8: - |
| B9. | YM22TU1012P1 | [1] | LABEL, QTY-F1: -, QTY-F2: -, QTY-F3: -, QTY-F4: 1, QTY-F5: -, QTY-F6: -, QTY-F7: -, QTY-F8: - | |
| B10. | YM22TU1013P1 | [1] | LABEL, QTY-F1: -, QTY-F2: -, QTY-F3: -, QTY-F4: -, QTY-F5: 1, QTY-F6: -, QTY-F7: -, QTY-F8: - | |
| B11. | YM22TU1014P1 | [1] | LABEL, QTY-F1: -, QTY-F2: -, QTY-F3: -, QTY-F4: -, QTY-F5: -, QTY-F6: 1, QTY-F7: -, QTY-F8: - | |
| B12. | YM22TU1015P1 | [1] | LABEL, QTY-F1: -, QTY-F2: -, QTY-F3: -, QTY-F4: -, QTY-F5: -, QTY-F6: -, QTY-F7: 1, QTY-F8: - | |
| B13. | YM22TU1016P1 | [1] | LABEL, QTY-F1: -, QTY-F2: -, QTY-F3: -, QTY-F4: -, QTY-F5: -, QTY-F6: -, QTY-F7: -, QTY-F8: 1 | |
| B14. | YM22TU1017P1 | [1] | LABEL, QTY-F1: -, QTY-F2: -, QTY-F3: -, QTY-F4: -, QTY-F5: -, QTY-F6: -, QTY-F7: -, QTY-F8: - | |
| B15. | YM22TU1018P1 | [1] | LABEL, QTY-F1: -, QTY-F2: -, QTY-F3: -, QTY-F4: 1, QTY-F5: -, QTY-F6: -, QTY-F7: -, QTY-F8: - | |
| B16. | YM22TU1019P1 | [1] | LABEL, QTY-F1: -, QTY-F2: -, QTY-F3: -, QTY-F4: -, QTY-F5: 1, QTY-F6: -, QTY-F7: -, QTY-F8: - | |
| B17. | YM22TU1020P1 | [1] | LABEL, QTY-F1: -, QTY-F2: -, QTY-F3: -, QTY-F4: -, QTY-F5: -, QTY-F6: 1, QTY-F7: -, QTY-F8: - | |
| B18. | YM22TU1021P1 | [1] | LABEL, QTY-F1: -, QTY-F2: -, QTY-F3: -, QTY-F4: -, QTY-F5: -, QTY-F6: -, QTY-F7: 1, QTY-F8: - | |
| B19. | YM22TU1022P1 | [1] | LABEL, QTY-F1: -, QTY-F2: -, QTY-F3: -, QTY-F4: -, QTY-F5: -, QTY-F6: -, QTY-F7: -, QTY-F8: 1 | |
| B20. | YM22TU1023P1 | [1] | LABEL, QTY-F1: -, QTY-F2: -, QTY-F3: -, QTY-F4: -, QTY-F5: -, QTY-F6: -, QTY-F7: -, QTY-F8: - | |
