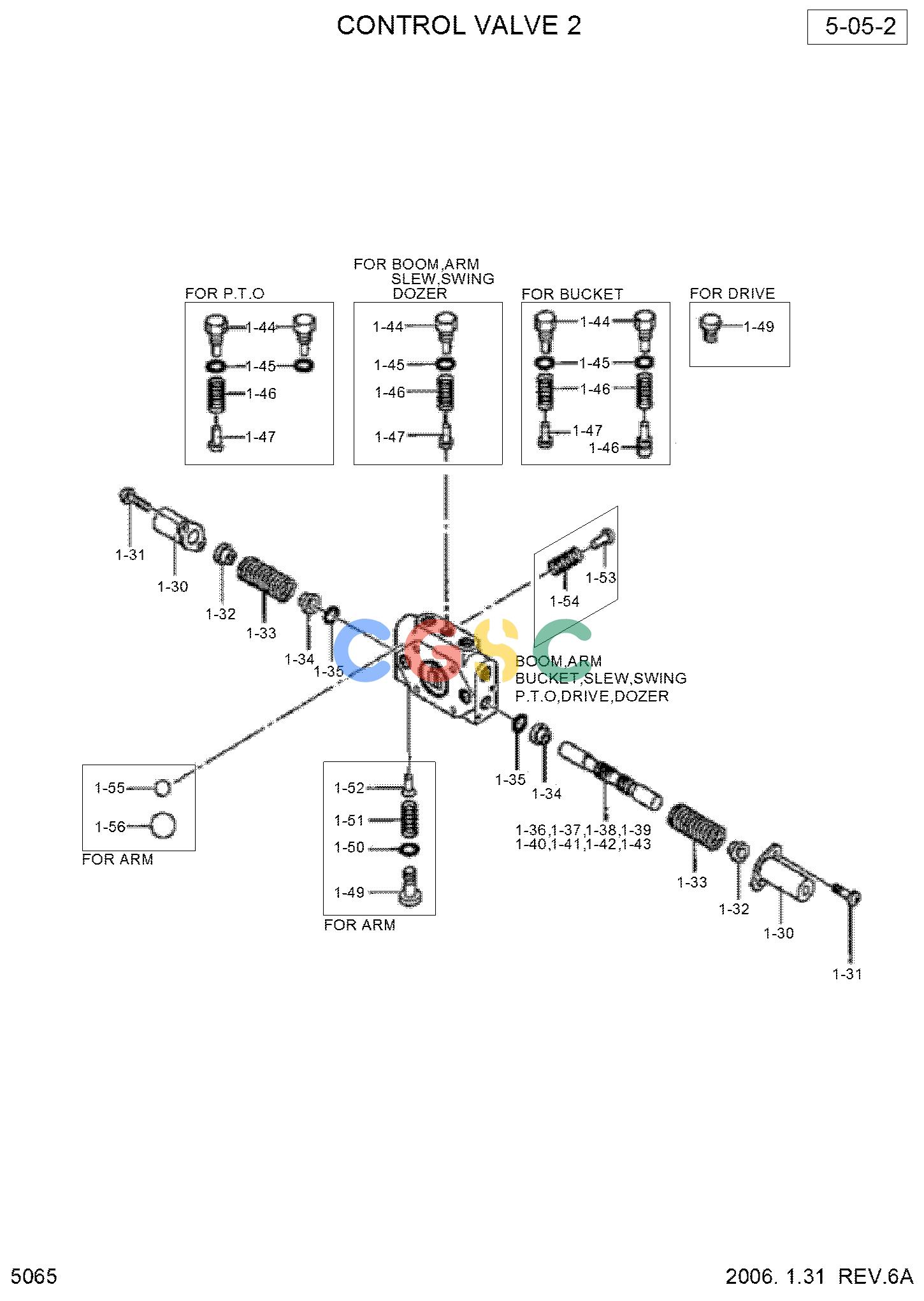

现代零件查询R35-7 CONTROL VALVE 2EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
867 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
@
|
[1] |
CONTROL VALVE ASSY
|
|
| 1-30. |
XJDH-03251
|
[2] |
CAP
|
|
| 1-31. |
XJDH-03252
|
[4] |
BOLT-SOCKET HEAD
|
|
| 1-32. |
XJDH-03253
|
[2] |
SEAT-SPRING
|
|
| 1-33. |
XJDH-03254
|
[2] |
SPRING
|
|
| 1-34. |
XJDH-03255
|
[2] |
SEAT-SPRING
|
|
| 1-35. |
XJDH-03256
|
[2] |
O-RING
|
|
| N1-36. |
@
|
[1] |
SPOOL
|
|
| N1-37. |
@
|
[1] |
SPOOL
|
|
| N1-38. |
@
|
[1] |
SPOOL
|
|
| N1-39. |
@
|
[1] |
SPOOL
|
|
| N1-40. |
@
|
[1] |
SPOOL
|
|
| N1-41. |
@
|
[1] |
SPOOL
|
|
| N1-42. |
@
|
[1] |
SPOOL
|
|
| N1-43. |
@
|
[1] |
SPOOL
|
|
| 1-44. |
XJDH-03257
|
[1] |
PLUG
|
|
| 1-45. |
XJDH-03258
|
[1] |
O-RING
|
|
| 1-46. |
XJDH-03259
|
[1] |
SPRING
|
|
| 1-47. |
XJDH-03260
|
[1] |
POPPET
|
|
| 1-48. |
XJDH-03261
|
[1] |
POPPET
|
|
| 1-49. |
XJDH-03262
|
[1] |
PLUG
|
|
| 1-50. |
XJDH-03258
|
[1] |
O-RING
|
|
| 1-51. |
XJDH-03269
|
[1] |
SPRING
|
|
| 1-52. |
XJDH-03264
|
[1] |
POPPET
|
|
| 1-53. |
XJDH-03265
|
[1] |
POPPET
|
|
| 1-54. |
XJDH-03270
|
[1] |
SPRING
|
|
| 1-55. |
XJDH-03267
|
[1] |
O-RING
|
|
| 1-56. |
XJDH-03268
|
[1] |
O-RING
|
|
| N. |
@
|
[1] |
NOT INDIVIDUALLY SUPPLIED
|
|
