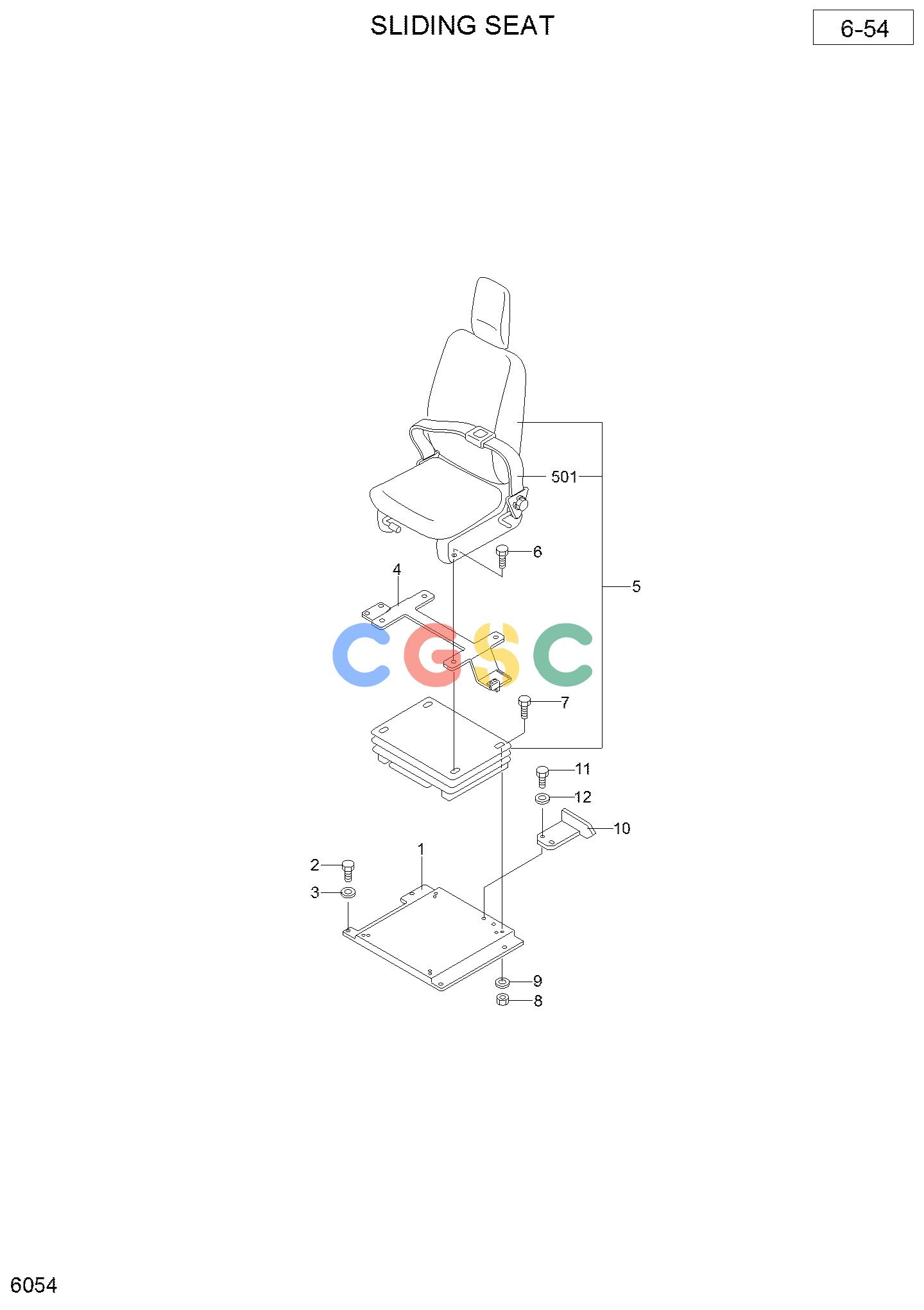

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | XJDH-01588 | [1] | PLATE-SEAT | |
| 2. | XJDH-00057 | [4] | BOLT | |
| 3. | XJDH-00278 | [4] | WASHER | |
| 4. | XJDH-01590 | [1] | PLATE | |
| 5. | XJDH-02854 | [1] | SEAT | |
| N501. | @ | [1] | BELT-SEAT | |
| 6. | XJDH-00123 | [4] | BOLT-SOCKET HEAD | |
| 7. | XJDH-00118 | [4] | BOLT-SOCKET HEAD | |
| 8. | XJDH-00165 | [4] | NUT | |
| 9. | XJDH-00276 | [4] | WASHER | |
| 10. | XJDH-01589 | [1] | PLATE | |
| 11. | XJDH-00035 | [3] | BOLT | |
| 12. | XJDH-00276 | [3] | WASHER | |
| N. | @ | [AR] | NOT INDIVIDUALLY SUPPLIED |
