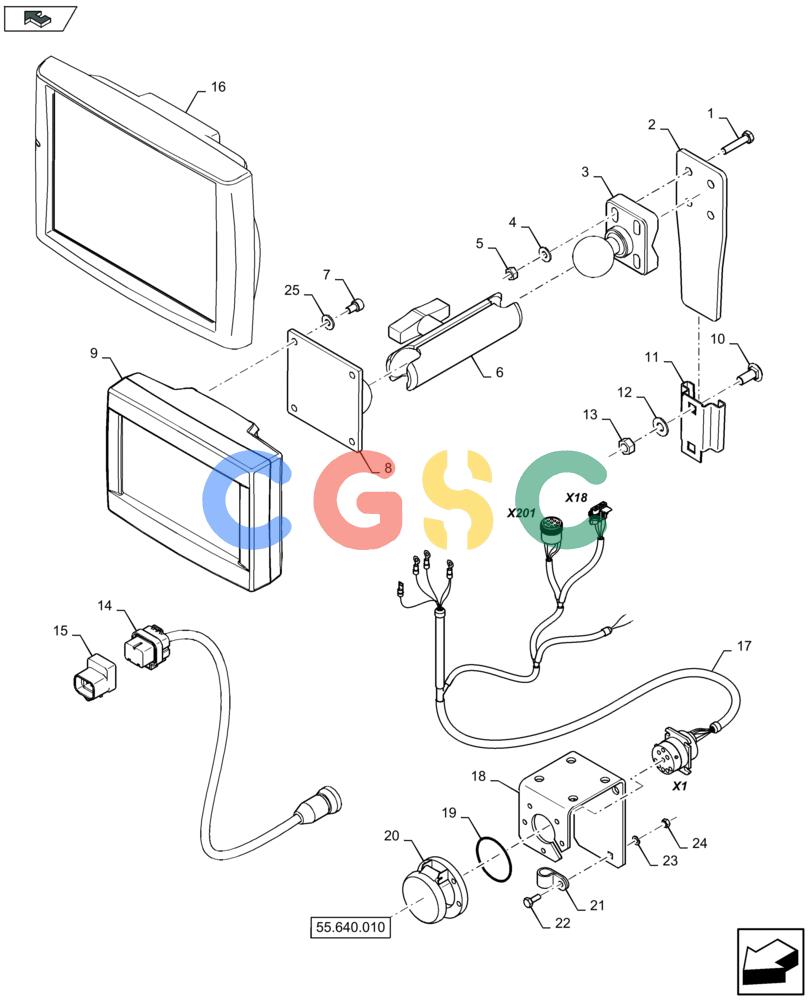

| 1. |
120101
|
[4] |
BOLT,Hex, M6 x 1 x 30mm, Cl 8.8
|
NH
Superseded by part number: 87317695
|
| 2. |
84348886
|
[1] |
MOUNTING PLATE
|
ZED
|
| 3. |
87284259
|
[1] |
PLATE
|
GI
|
| 4. |
322357
|
[4] |
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
|
NH
|
| 5. |
9706755
|
[4] |
NUT,M6, Cl 8
|
NH
Superseded by part number: 86500688
|
| 6. |
87284257
|
[1] |
ARM
|
GI
|
| 7. |
87016470
|
[4] |
HEX SOC SCREW,M6 x 1 x 10mm, Cl 8.8
|
ZED
, Serial Range: -C084
|
| 7. |
63582
|
[4] |
HEX SOC SCREW,M6 x 12mm, Cl 8.8
|
BER
, Start Serial: D085 Superseded by part number: 14305124
|
| 8. |
87386398
|
[1] |
SUPPORTING ARM
|
GI
|
| 9. |
84487372
|
[1] |
DISPLAY
|
ZED
, Serial Range: -C098
|
| 9. |
47585546
|
[1] |
DISPLAY
|
ZED
, Start Serial: D099 Superseded by part number: 47585553
|
| 10. |
86507486
|
[2] |
CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 11. |
9837606
|
[1] |
CLIP
|
ZED
Superseded by part number: 847590
|
| 12. |
322358
|
[2] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 13. |
9706690
|
[2] |
NUT,M8 x 1.25, Cl 8
|
NH
Superseded by part number: 43362
|
| 14. |
87526506
|
[1] |
WIRE HARNESS
|
PLO
, Serial Range: -C071 Superseded by part number: 84353485
|
| 14. |
84574876
|
[1] |
WIRE HARNESS
|
PLO
, Serial Range: -C071 Superseded by part number: 47441308
|
| 14. |
47441308
|
[1] |
WIRE HARNESS
|
ZED
, Serial Range: -F072096
|
| 14. |
47533754
|
[1] |
WIRE HARNESS
|
ZED
, Start Serial: D097
|
| 15. |
87601142
|
[1] |
ELEC CONNECTOR,Female, 6 Cavities
|
PLO
|
| 16. |
84518934
|
[1] |
DISPLAY
|
FAR
, Serial Range: -C096 Superseded by part number: 47514045
|
| 16. |
47514045
|
[1] |
DISPLAY
|
CUR
, Start Serial: D097 Superseded by part number: 47924430
|
| 16. |
84546676R
|
[1] |
REMAN-ELECT MONITOR
|
BRR
LB324P, LB324R,LB324S, LB334P, LB334R, LB334S, LB424R, LB424S, LB434R, LB434S, All (9/12), Reman for New P/N 84518934
|
| 16. |
84546676C
|
[1] |
CORE-MONITOR
|
BRR
Return Number
|
| 17. |
87526033
|
[1] |
WIRE HARNESS
|
PLO
Incl 18 - 24
|
| 18. |
84437400
|
[1] |
BRACKET
|
ZED
|
| 19. |
84037188
|
[1] |
O-RING,3mm Thk x 34.2mm ID, 70 Duro
|
ZED
|
| 20. |
86606228
|
[1] |
COVER
|
ZED
|
| 21. |
9706732
|
[1] |
CLAMP,19mm ID, 8.7mm Bolt Hole, P Type
|
NH
Superseded by part number: 86637976
|
| 22. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
Bolt Incl in 17
|
