纽荷兰零件查询(EC130) - CRAWLER EXCAVATOR (4/99-) (23.290[002]) - TREADLE VALVE INSTALL.MATERIAL (S/N 11701-UP) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
167 次

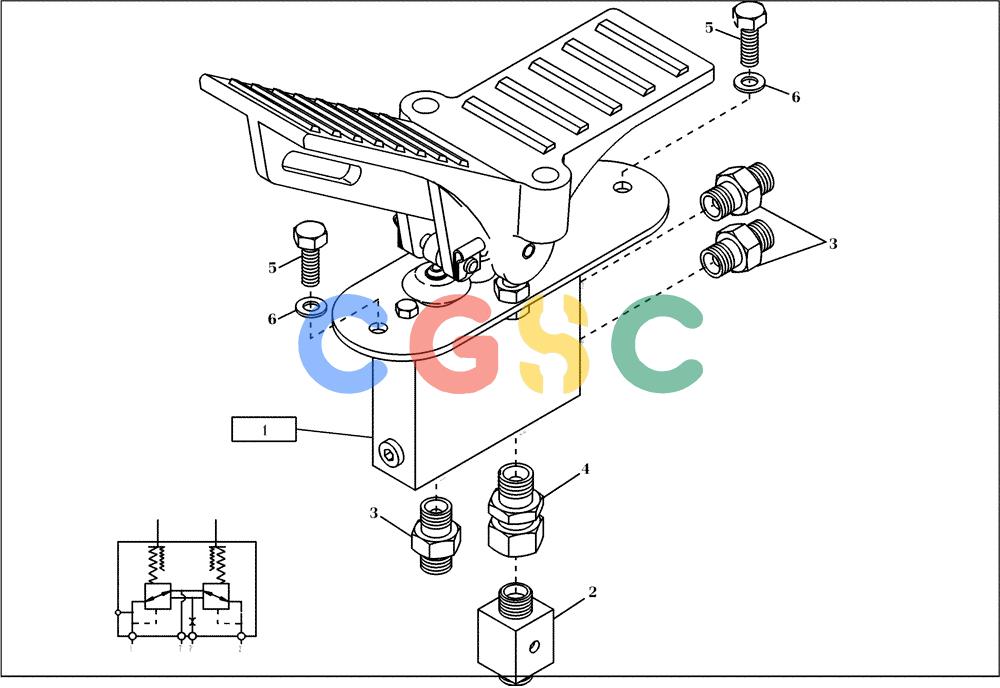

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | NS | [1] | NOT SERVICED | BASTREADLE VALVE SEE FIGURE 23.292/001 |
| 2. | 73176011 | [1] | HYD CONNECTOR | BERDISTRIBUTOR Superseded by part number: 1284453 |
| 3. | 73170380 | [3] | HYD CONNECTOR | BERSOCKET Superseded by part number: 73170381 |
| 4. | 73176010 | [1] | HYD CONNECTOR | BERSOCKET/ADAPTER Superseded by part number: 1338330 |
| 5. | 73170205 | [2] | BOLT,Hex, M8 x 16, 8.8 | BERHEXAGON BOLT Superseded by part number: 16043224 |
| 6. | 73170160 | [1] | WASHER | BERDISK/WASHER Superseded by part number: 86625263 |
