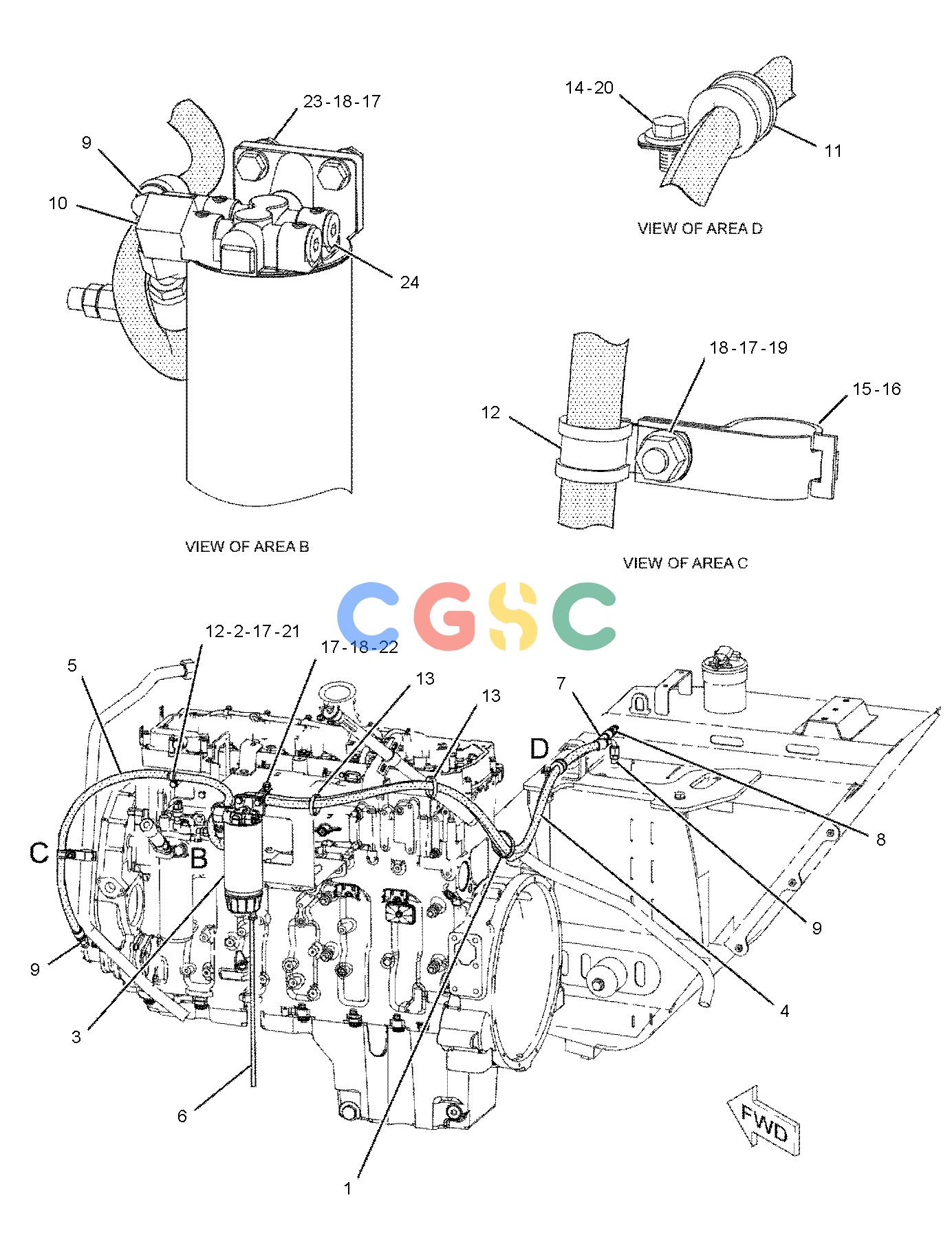

卡特零件查询（730） 240-2632: LINES GP-FUEL
广数供应链运营团队, 15 02月, 2025，浏览：
429 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7C-8246 | [2] | SPACER(10.5X20X24-MM THK) | |
| 2. | 175-9079M | [2] | ROD-LINK | |
| 3. | 220-8701CI | [1] | HOSE AS | |
| 4. | 244-1420 | [1] | TUBE AS | |
| 5. | 244-4959I | [1] | HOSE AS | |
| 6. | 323-4061I | [1] | HOSE AS | |
| 10. | 332-8555C | [1] | ADAPTER AS | |
| | 8M-0506 | [1] | ADAPTER-O-RING | |
| | 214-7568 | [1] | SEAL-O-RING | |
| 11. | 353-5103 | [1] | ADAPTER AS | |
| | 030-7942 | [1] | ELBOW | |
| | 214-7568 | [1] | SEAL-O-RING | |
| 12. | 3E-4352 | [1] | WASHER-HARD(8.8X20.5X2.5-MM THK) | |
| 13. | 6V-5217M | [1] | BOLT(M8X1.25X20-MM) | |
| 14. | 6V-5839 | [2] | WASHER(11X21X2.5-MM THK) | |
| 15. | 175-9106 | [1] | ELBOW AS | |
| | 6V-9001 | [1] | ELBOW | |
| | 214-7568 | [1] | SEAL-O-RING | |
| | 228-7089 | [1] | SEAL-O-RING | |
| 16. | 7H-7055 | [2] | CLIP | |
| 17. | 7K-4129 | [1] | UNION-FLARED | |
| 18. | 7V-6571 | [1] | GROMMET | |
| 19. | 8T-1889 | [1] | CLIP(SLOT) | |
| 20. | 8T-1890 | [1] | CLIP(TAB) | |
| 21. | 371-7196 | [1] | CONNECTOR AS | |
| | 9X-6650 | [1] | CONNECTOR-O-RING | |
| | 238-5080 | [1] | SEAL-O-RING | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
