神钢零件查询(K903B) - EXCAVATOR ASN LE3401 (1/85-12/03) (01-004) - COUNTER-WEIGHT ASSY (FOR SILENCE) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
999 次

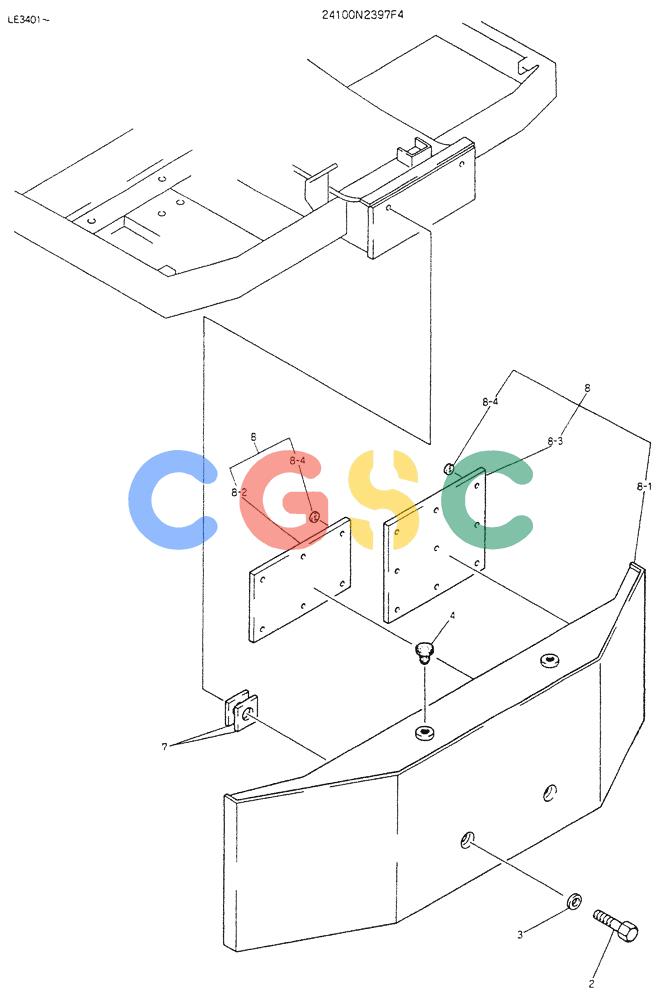

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2410042397F4 | [1] | COUNTER-WEIGHT | |
| 2. | ZS13C24080 | [2] | SCREW | KOBM24x3.0x80mm |
| 3. | R16T0152D4 | [2] | WASHER | KOBFlat -- ID 24 x OD 44 x Th 4.5mm |
| 4. | 2420T3855 | [2] | CAP | KOB |
| 7. | 2418T10316 | [5] | SHIM | SHIM |
| 8. | 24100P1038F1 | [1] | COUNTER WEIGHT | |
| 8-1. | 2422J1138D2 | [1] | COUNTER WEIGHT | |
| 8-2. | 2479T614 | [1] | INSULATION, SOUND | |
| 8-3. | 2479T613 | [1] | INSULATION, SOUND | |
| 8-4. | 2418T8864 | [15] | WASHER | KOB |
