神钢零件查询(K903B) - EXCAVATOR ASN LE3401 (1/85-12/03) (01-006) - REDUCTION UNIT, P/N 24100J4290F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
302 次

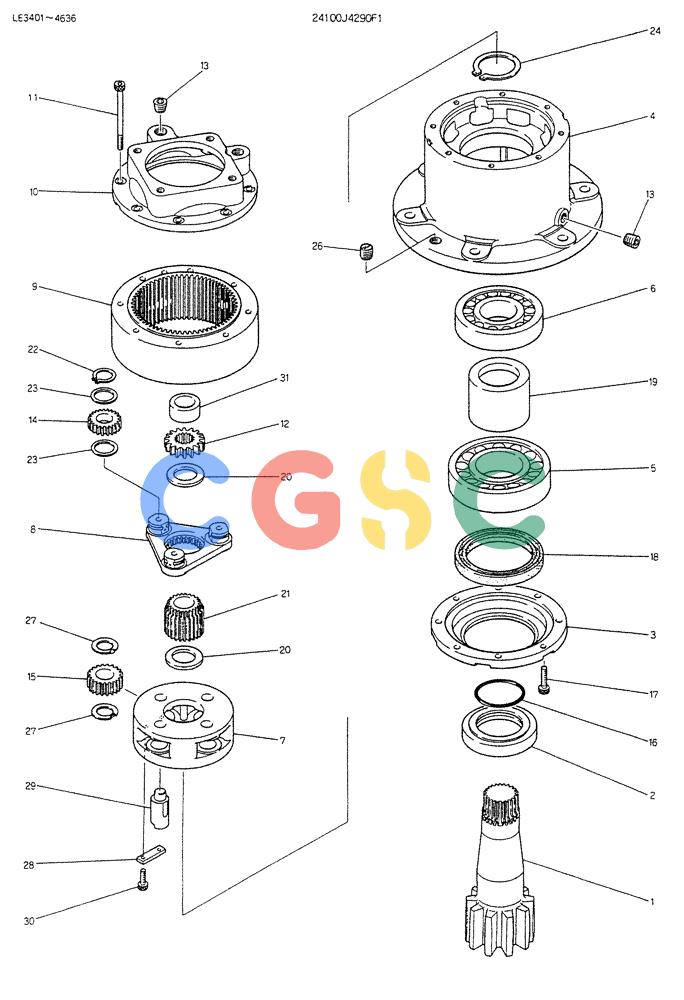

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J4290F1 | [1] | REDUCTION UNIT | REDUCTION UNIT |
| 1. | 2401N406 | [1] | SHAFT | KOB |
| 2. | 2418T8471 | [1] | SLEEVE | KOB |
| 3. | 2418N1914 | [1] | RETAINER | KOBRETAINER |
| 4. | 2414J931 | [1] | HOUSING | |
| 5. | R25P0046D1 | [1] | ROLLER BEARING | KOB |
| 6. | 25Z627D9 | [1] | BEARING | KOB |
| 7. | 2413N330 | [1] | DIFF. SPIDER | KOB |
| 8. | 2413N331F1 | [1] | SPIDER | KOB |
| 9. | 2401N407 | [1] | RING GEAR | KOB |
| 10. | 2414J944 | [1] | COVER | |
| 11. | ZS23C10100 | [10] | SCREW,Hex Socket Head, M10 x 100mm | KOBM10x1.50x100mm Superseded by part number: ZS28C10100 |
| 12. | 2401P544 | [1] | GEAR, SUN | GEAR, SUN |
| 13. | ZE82T08000 | [3] | PLUG | KOB1/2" PT |
| 14. | 2401P840 | [3] | PINION | KOB |
| 15. | 2401P546 | [4] | PINION | KOB |
| 16. | ZD11G07000 | [1] | O-RING,69.40mm ID x 75.60mm OD x 3.10mm | KOBID 69.40 ± 0.61 x OD 75mm |
| 17. | ZS23C08025 | [8] | SCREW,Hex Socket Head, M8 x 25mm | KOBM08x1.25x25mm |
| 18. | ZD21T10500 | [1] | OIL SEAL | KOB Superseded by part number: 2418R7D6 |
| 19. | 2418T8472 | [1] | SPACER | KOBSPACER |
| 20. | 2418T8473 | [2] | SPACER | KOB |
| 21. | 2401P547 | [1] | GEAR, SUN | GEAR, SUN |
| 22. | ZR16X02800 | [3] | SNAP RING | KOB |
| 23. | 2418T8474 | [6] | THRUST WASHER | KOB |
| 24. | ZR16X05500 | [1] | RING | KOB |
| 26. | ZS83C16018 | [2] | SCREW | KOBM16x2.0x18mm |
| 27. | 2418T8667 | [8] | THRUST WASHER | KOB |
| 28. | 2418T8666 | [4] | LOCKING PLATE | KOB |
| 29. | 2410P666 | [4] | SHAFT | KOB |
| 30. | ZS23C06016 | [8] | SCREW,Hex Socket Head, M6 x 16mm | KOBM06x1.0x16mm Superseded by part number: ZS28C06016 |
| 31. | 2418T5628 | [1] | SPACER | KOB |
