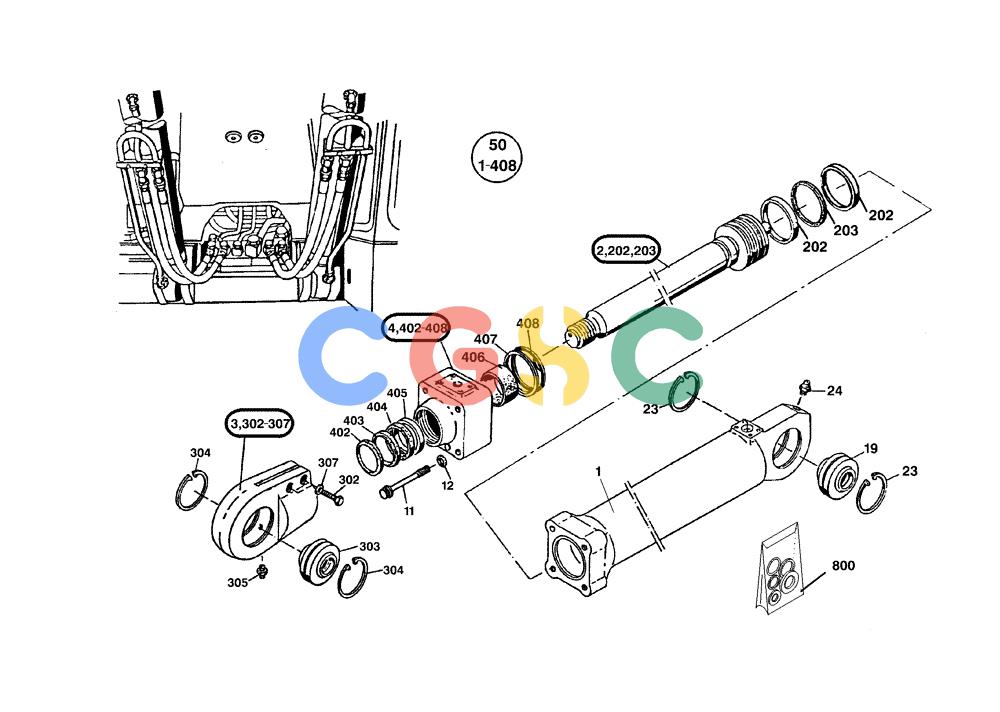

纽荷兰零件查询(EC130) - CRAWLER EXCAVATOR (4/99-) (24.022[001]) - BOOM CYLINDERS (S/N 11701-12057) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
399 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 73180455 | [1] | TUBE | BERCYLINDER LINER Superseded by part number: 1770186 |
| 2. | 73175646 | [1] | ROD | BERPISTON ROD Superseded by part number: 2244640 |
| 3. | 73175647 | [1] | EYE | BER Superseded by part number: 1778938 |
| 4. | 73179511 | [1] | GUIDE | BER Superseded by part number: 1975105 |
| 11. | 73175658 | [4] | SCREW | BERCYL.HEAD SCREW Superseded by part number: 1758351 |
| 12. | 73170714 | [4] | WASHER | BERDISK/WASHER Superseded by part number: 2976926 |
| 19. | 73175659 | [1] | BEARING | NHJOINT BEARING Superseded by part number: 73175660 |
| 23. | 73174816 | [2] | SNAP RING,M105, Int | BERCIRCLIP Superseded by part number: 100164A1 |
| 24. | 73170138 | [1] | LUBE NIPPLE | BERGREASE NIPPLE Superseded by part number: 84089943 |
| 50. | 73179510 | [1] | CYLINDER | BER Superseded by part number: 2401931 |
| 202. | 73175663 | [2] | PISTON RING | BERPISTON GUIDE RING Superseded by part number: 271936 |
| 203. | 73175662 | [1] | GASKET KIT | BERGASKET SET Superseded by part number: 1590956 |
| 302. | 73171642 | [2] | BOLT,Hex, M16 x 90, 10.9 | BERHEXAGON BOLT Superseded by part number: 86521733 |
| 303. | 73175515 | [1] | BEARING | BERJOINT BEARING Superseded by part number: 62493 |
| 307. | 73171992 | [2] | WASHER | BERDISK/WASHER Superseded by part number: 1774191 |
| 402. | 73175650 | [1] | SCRAPER | BER Superseded by part number: 2976620 |
| 403. | 73175651 | [1] | SCRAPER | BER Superseded by part number: 1589479 |
| 404. | 73175652 | [1] | RING | BERSEALING RING Superseded by part number: 1939949 |
| 405. | 73175653 | [1] | RING | BERSEALING RING Superseded by part number: G1951211 |
| 406. | 73175654 | [1] | PISTON RING | BERPISTON GUIDE RING Superseded by part number: 73182676 |
| 407. | 73175655 | [1] | SUPPORT | BERRING Superseded by part number: 1547108 |
| 408. | 73175656 | [1] | O-RING | BER Superseded by part number: 2977058 |
| 800. | 73175661 | [1] | GASKET KIT | BERGASKET SET Superseded by part number: 73186722 |
